Description

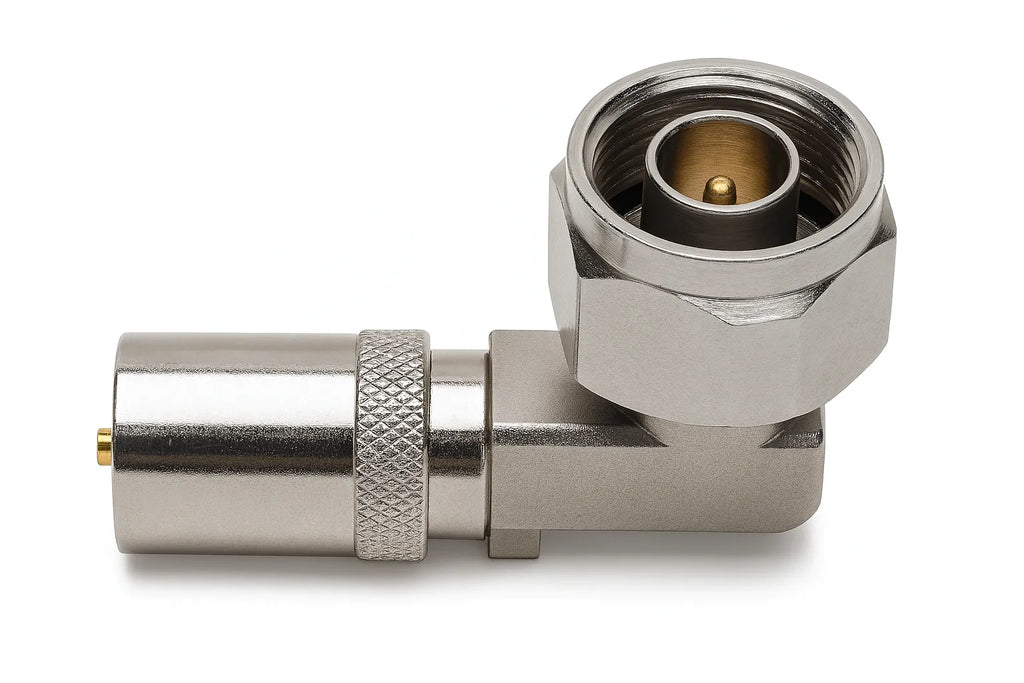

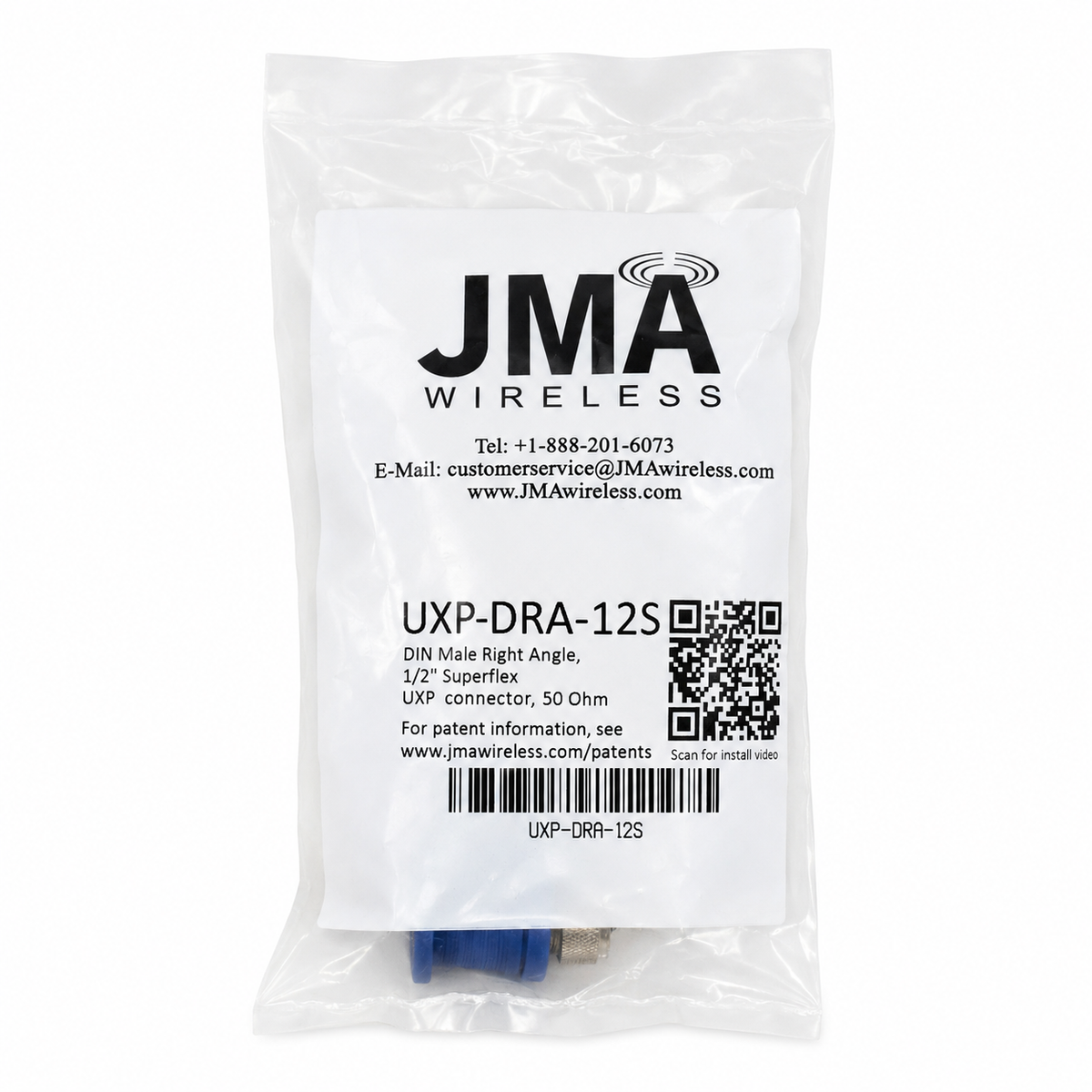

The JMA Wireless UXP-DRA-12S is a 7-16 DIN Male right angle RF connector designed for 1/2 inch superflexible coaxial cable used in DAS, 5G, LTE, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector is designed for installations where a 90-degree RF connection helps accommodate limited equipment space or improve cable routing.
According to the JMA datasheet, the UXP-DRA-12S operates from DC to 6 GHz and provides typical 3rd order IMD/PIM performance of -161 dBc. Typical insertion loss is 0.05 dB per connector, with average power handling of 1000 W at 900 MHz and a maximum peak power rating of 16 kW. The connector supports IP68 immersion and IP66 water jetting protection when mated or unmated and is designed for demanding indoor and outdoor wireless network installations.

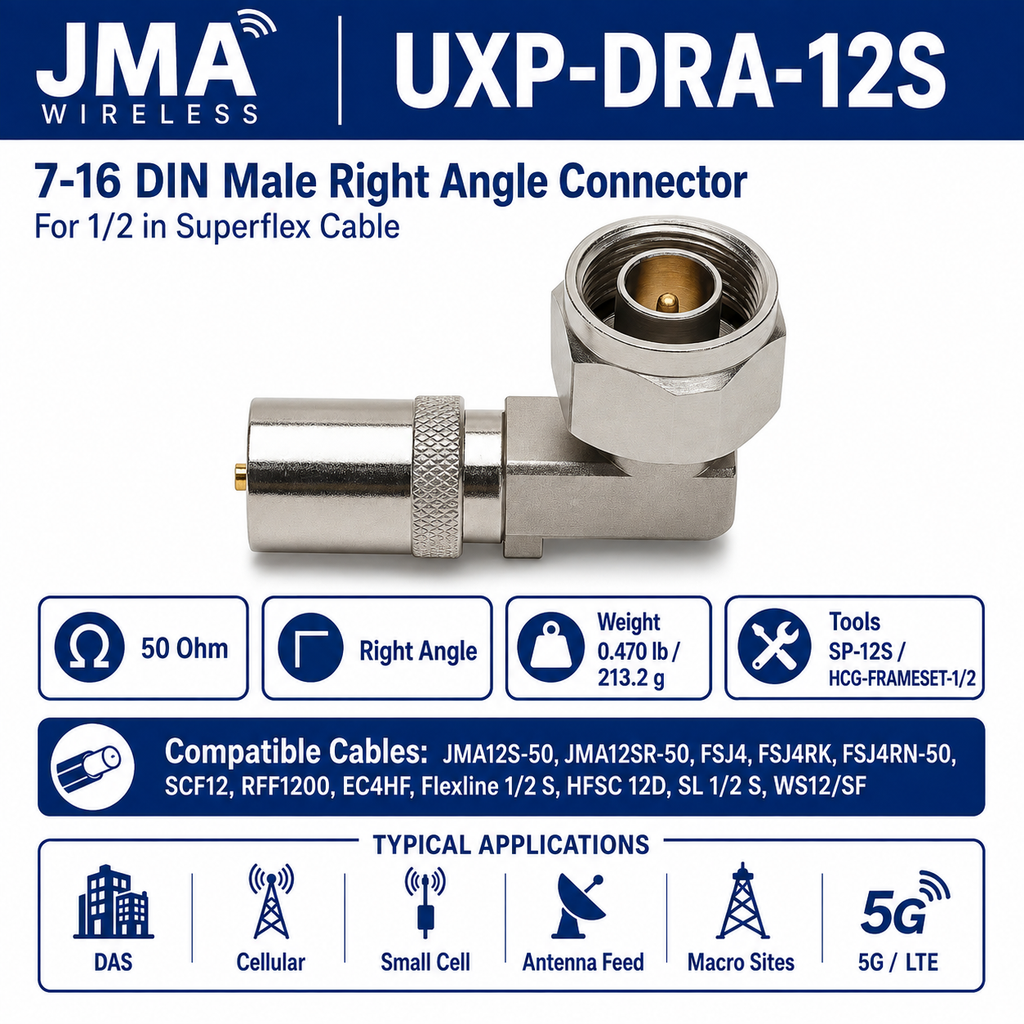

Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DRA-12S
- Connector Type: 7-16 DIN Male Right Angle RF Connector
- Cable Type: 1/2 inch superflexible coaxial cable
- Orientation: Right Angle / 90 Degree
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 1000 W at 900 MHz
- Peak Power: 16 kW maximum
- DC Test Voltage: 2500 V
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Weather Protection: WPS-DRA-4S boot and WPS-DF port seal
- Cable Preparation Tool: SP-12S or SP-12SPL, no coring required
- Torque Wrench: TQ-114-F18, 18 lbf-ft / 24.4 N-m
- Compression Tool Options: HCG-CC with HCG-FS-12-01 and HCG-INS2-12-01, or HCG-CC with HCG-FRAMESET-1/2 and HCG-INSERTA-1/2
- Weight: 0.470 lb / 213.2 g
- Application: DAS, 5G, LTE, cellular, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA12S-50
- JMA Wireless JMA12SR-50
- CommScope FSJ4
- CommScope FSJ4RK
- CommScope FSJ4RN-50
- CommScope HS4RP
- RFS SCF12
- NK Draka RFF1200
- HUBER+SUHNER SF 1/2 HF
- Eupen EC4HF
- Leoni Flexline 1/2 inch S
- LS/Superior Essex HFSC 12D
- LS/Superior Essex FSC12DPV
- Hansen RF5012S
- Hansen RF5012SZ
- Rosenberger SL 1/2 inch S
- Wireless Supply WS12/SF
- Wireless Supply WS12/SF/WP
- Other compatible 1/2 inch superflexible coaxial cables, subject to confirmation with JMA Technical Support
Price Comparison
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $34.99 | $49.49 | $49.15 | N/A |
| You Save | 29% | 29% | N/A |
Please Note: Price comparison is shown per connector. Graybar pricing was not available at the time of comparison. Please confirm compatibility with your exact cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
