Description

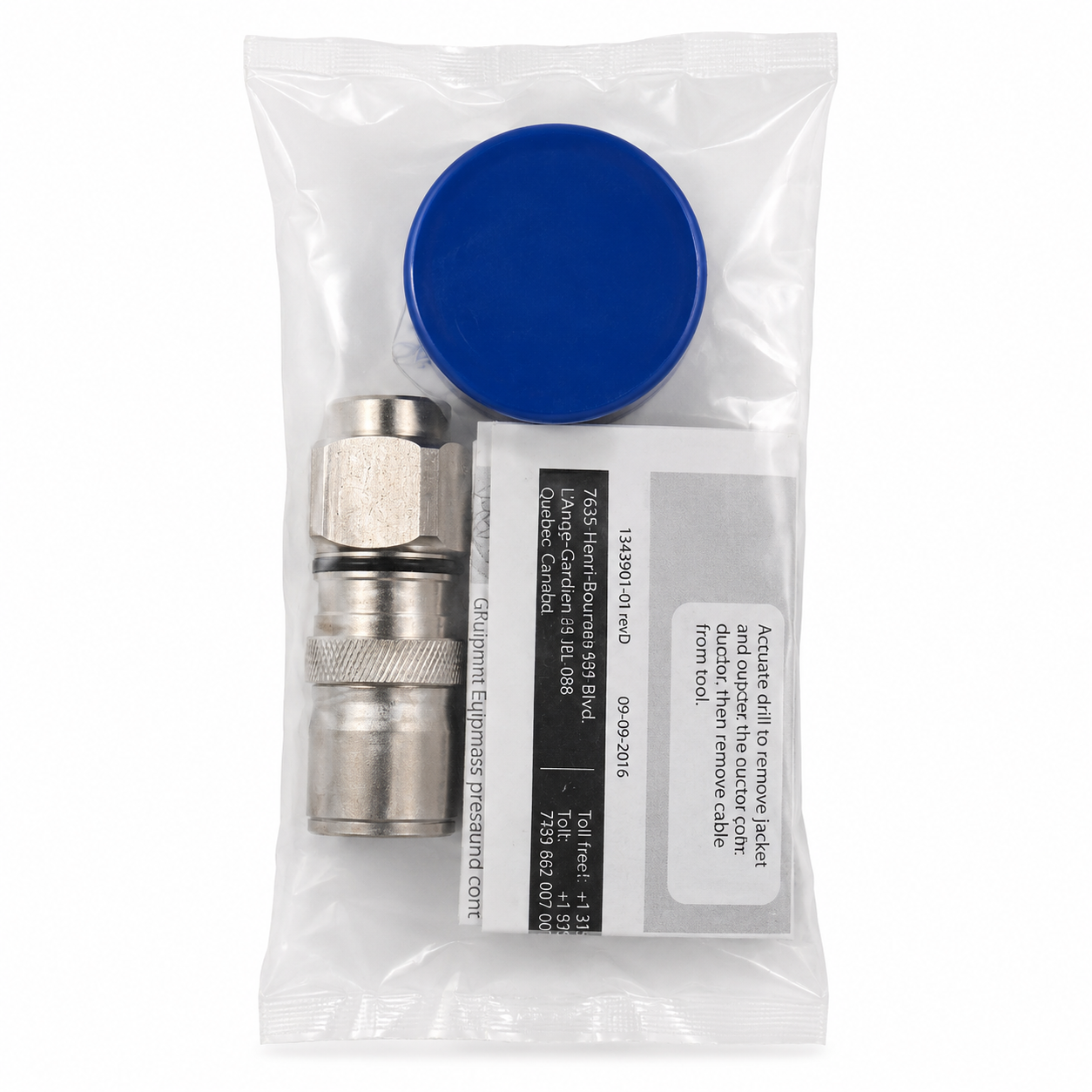

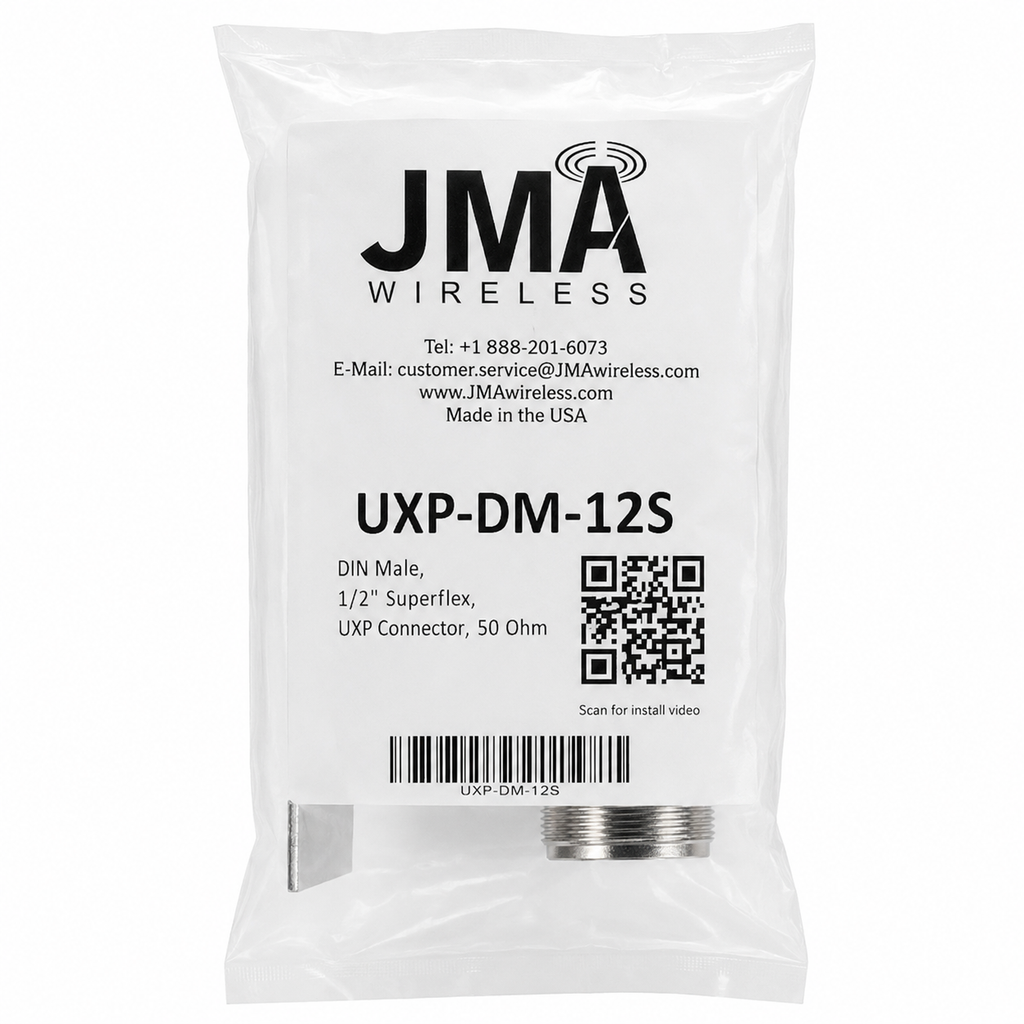

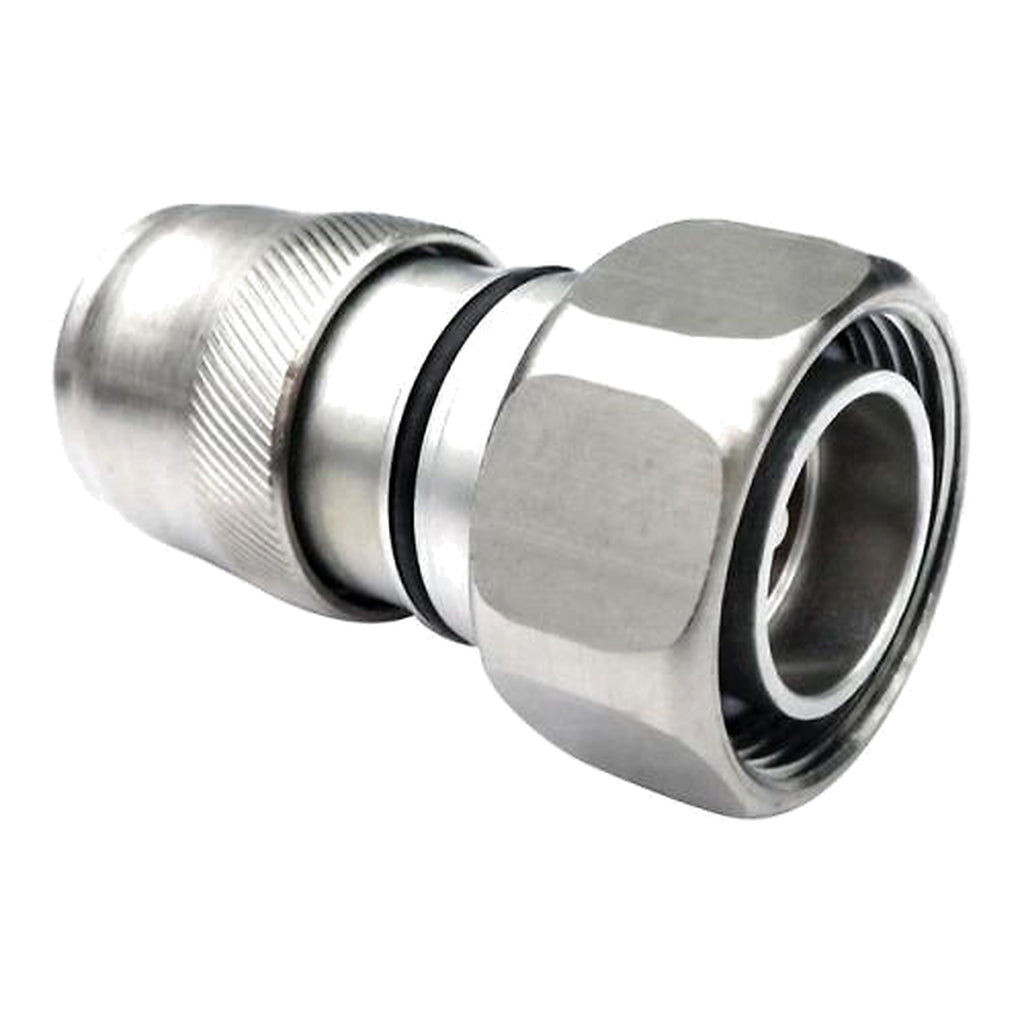

The JMA Wireless UXP-DM-12S is a 7/16 DIN Male RF connector designed for 1/2 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is built for reliable RF performance in demanding wireless network deployments.
According to the JMA datasheet, the UXP-DM-12S has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 1000 W at 900 MHz, and peak power rating of 16 kW maximum. It is designed for 1/2 inch superflexible cable types and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance. :contentReference[oaicite:0]{index=0}
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DM-12S
- Connector Type: 7/16 DIN Male RF Connector
- Cable Type: 1/2 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 1000 W at 900 MHz
- Peak Power: 16 kW maximum
- DC Test Voltage: 2500 V
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Weather Protection System: Boot WPS-4S, Port Seal WPS-DF
- Weight: Approximately 0.311 lb
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, and telecom infrastructure
Compatible RF Cable Types
- JMA12S-50
- JMA12SR-50
- Commscope FSJ4
- Commscope FSJ4RK
- Commscope FSJ4RN-50
- Commscope HS4RP
- RFS SCF12
- NK Draka RFF1200
- HUBER+SUHNER SF 1/2 HF
- Eupen EC4HF
- Leoni Flexline 1/2 inch S
- LS/Superior Essex HFSC 12D
- LS/Superior Essex FSC12DPV
- Hansen RF5012S
- Hansen RF5012SZ
- Rosenberger SL 1/2 inch S
- Wireless Supply WS12/SF
- Wireless Supply WS12/SF/WP
- Other compatible 1/2 inch superflexible coaxial cables
Price Comparison
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $19.99 | $35.09 | $37.49 | $40.49 |
| You Save | 43% | 47% | 51% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
