Description

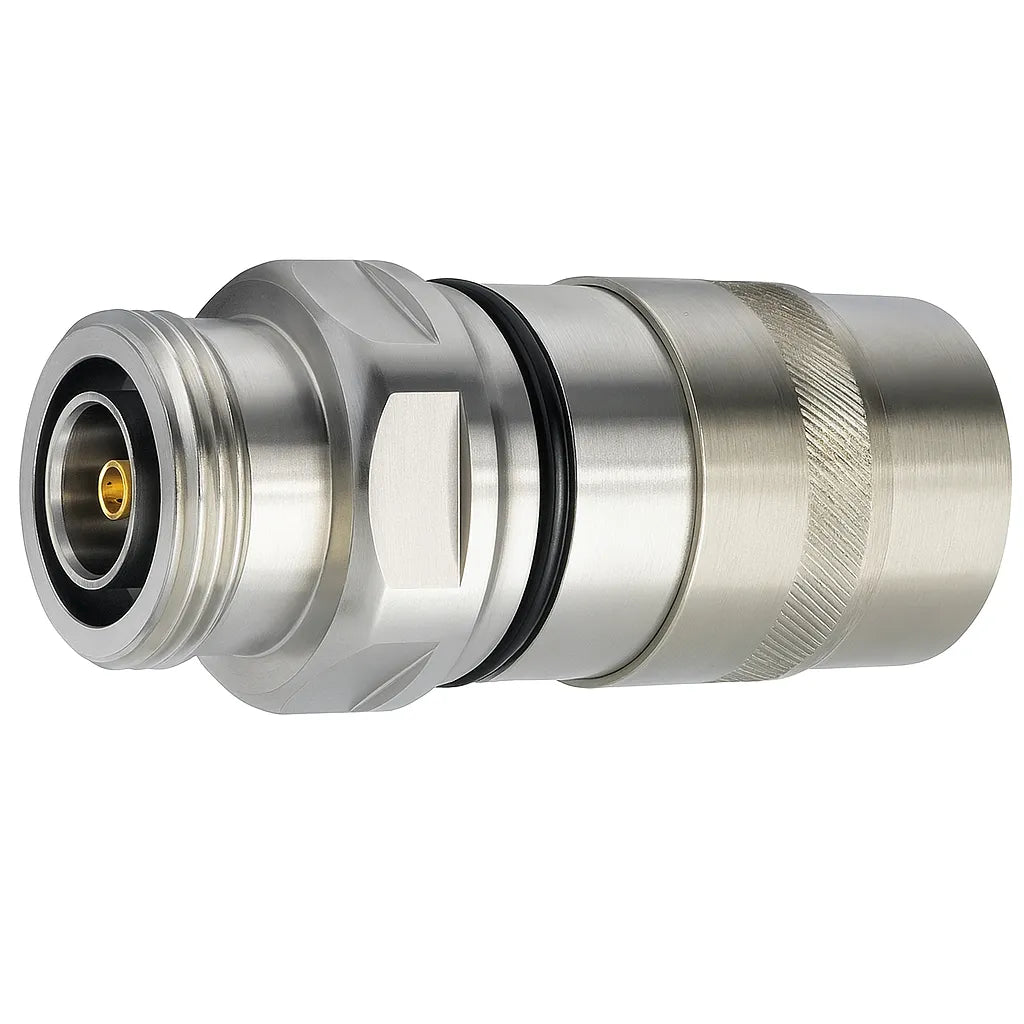

The JMA Wireless UXP-DF-78 is a 7-16 DIN Female RF connector designed for 7/8 inch annular coaxial cable used in DAS, 5G, LTE, 4G, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is built for reliable RF performance in demanding wireless network deployments.
According to the JMA datasheet, the UXP-DF-78 has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 3000 W at 900 MHz, and peak power rating of 40 kW maximum. It is designed for 7/8 inch annular cable types and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DF-78
- Connector Type: 7-16 DIN Female RF Connector
- Cable Type: 7/8 inch annular coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 3000 W at 900 MHz
- Peak Power: 40 kW maximum
- DC Test Voltage: 4000 V
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Interface Durability: 50 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Weather Protection System: JMA WPS-5, used for in-line connections only
- Cable Preparation Tool: SP-78, no coring required
- Compression Tool: HCG-FRAMESET-78, HCG-CC
- Hex Width: 1-3/8 inch / 35 mm
- Weight: Approximately 0.545 lb
- Application: DAS, 5G, LTE, 4G, private wireless, private network, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- Commscope AVA5
- Commscope AVA5RK
- Commscope AL5
- Commscope LDF5
- Commscope VXL5
- RFS LCF78
- RFS LCF78-50JL
- RFS UCF78
- NK Draka RFA78
- Eupen EC5
- Hansen RF5078
- Leoni Flexline 7/8 inch R
- LS/Superior Essex LHF 22D
- LS/Superior Essex LHF-22DU
- Rosenberger SL 7/8 inch
- Hengxin HCTAY-50-22
- Other compatible 7/8 inch annular coaxial cables
Price Comparison
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $29.99 | $46.21 | $49.15 | $53.08 |
| You Save | 35% | 39% | 44% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your exact cable type and installation requirements before purchase.
