Description

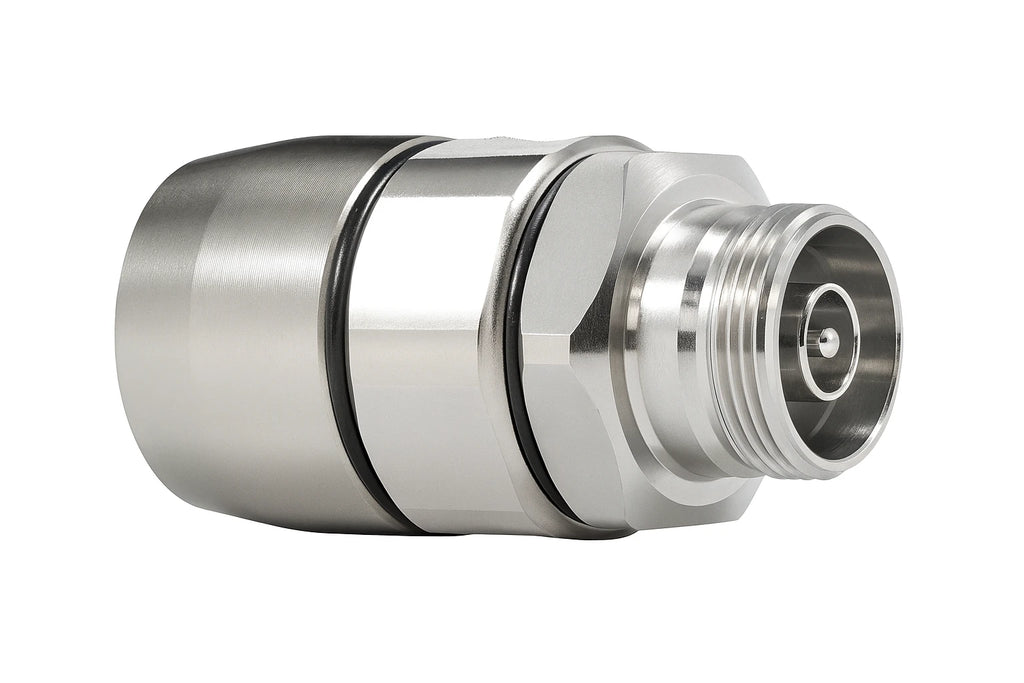

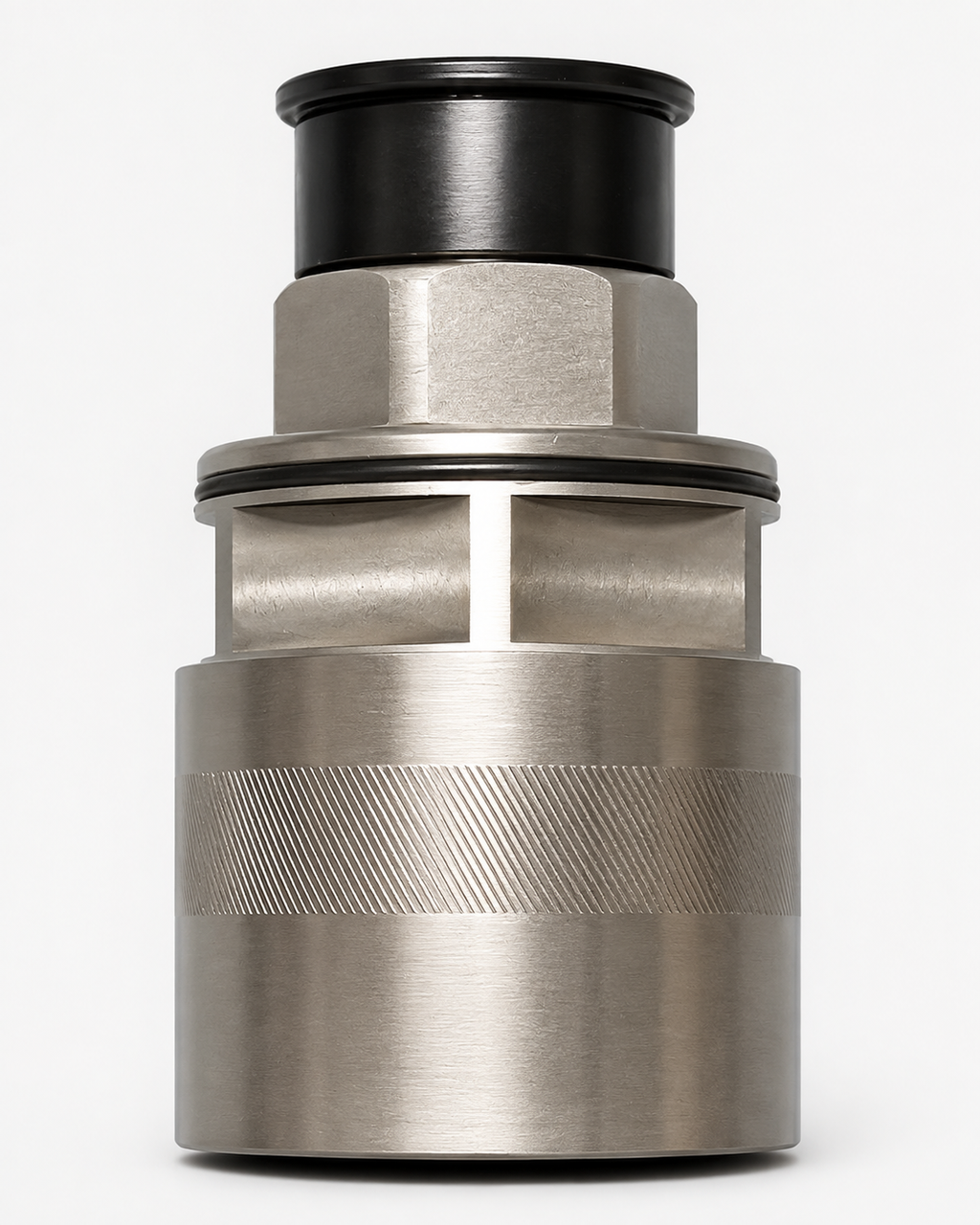

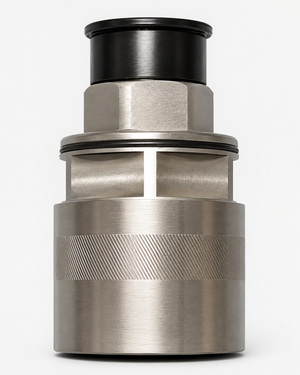

The JMA Wireless UXP-DF-158 is a 7-16 DIN Female RF connector designed for 1-5/8 inch coaxial cable used in DAS, 5G, LTE, public safety, private wireless, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is engineered for high-power RF installations requiring reliable electrical and environmental performance.
According to the JMA datasheet, the UXP-DF-158 provides typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 3000 W at 900 MHz, and maximum peak power of 40 kW. It also provides IP68 immersion and IP66 water jetting performance in both mated and unmated conditions.

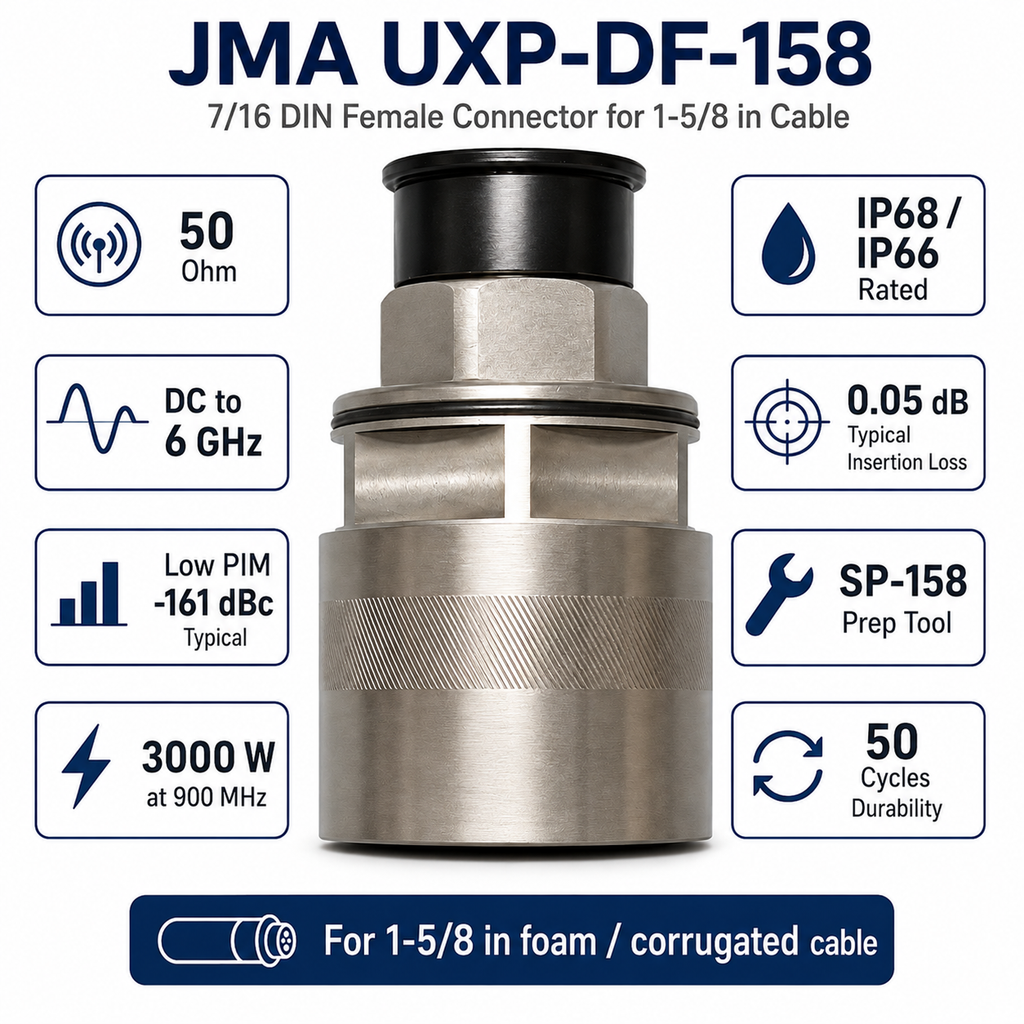

Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DF-158
- Connector Type: 7-16 DIN Female RF Connector
- Cable Type: 1-5/8 inch coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 3000 W at 900 MHz
- Peak Power: 40 kW maximum
- DC Test Voltage: 4000 V
- Center Contact Resistance: ≤ 0.4 milliohm
- Outer Contact Continuity: 1.5 milliohm maximum
- Shielding Effectiveness: < -130 dB at 0 to 1 GHz
- VSWR: 1.02 DC-1 GHz, 1.03 at 1-2 GHz, 1.05 at 2-4 GHz, 1.08 at 4-6 GHz
- Return Loss: 40 dB DC-1 GHz, 36 dB at 1-2 GHz, 32 dB at 2-4 GHz, 28 dB at 4-6 GHz
- Combined Pull Force: 2.67 kN / greater than 600 lb, cable limited
- Cable Retention Torque: 67.8 N·m / 50 lbf·ft, cable limited
- Interface Durability: 50 cycles
- Environmental Rating: IP68 immersion and IP66 water jetting, mated and unmated
- Operating Temperature: -55°C to +85°C
- Storage Temperature: -55°C to +85°C
- Accelerated UV: 1000 hours per ASTM G154
- Corrosion Resistance: 1000 hours per IEC 60068-2-11
- Weather Protection Boot: WPS-7 for in-line connections only
- Port Seal: WPS-DF
- Cable Preparation Tool: SP-158, no coring required
- Compression Tool: HCG-CC with HCG-FS-158-01 or HCG-FRAMESET-158
- Hex Width: 1-1/2 inch / 38 mm
- Weight: 1.262 lb / 572.4 g
- Application: DAS, 5G, LTE, public safety, private wireless, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- RFS LCG158
- NK Draka RFA158
- Eupen EC7
- LS/Superior Essex LHF 42D
- LS/Superior Essex LHF-42DUF
- Rosenberger SL 1-5/8"R
- CommScope AVA7
- CommScope AVA7RK
- CommScope AL7
- CommScope VXL7
- CommScope LDF76
Cable Compatibility Note: For cable types not listed above, JMA recommends contacting JMA Technical Support to confirm compatibility.
Price Comparison
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $99.00 | $122.59 | $120.04 | $131.45 |
| You Save | 19% | 18% | 25% |
Please Note: Price comparison is shown per connector and is based on listed competitor pricing at the time of comparison. Prices may change. Please confirm compatibility with your exact cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
