Description
The JMA Wireless UXP-DF-12S is a precision-engineered 7/16 DIN female connector designed for 1/2" superflex coaxial cables. Built for robust RF performance in demanding wireless infrastructure, this connector delivers exceptional return loss, PIM performance, and IP68-rated environmental protection. Its compact size and proven reliability make it an excellent choice for DAS, in-building, and outdoor wireless deployments.

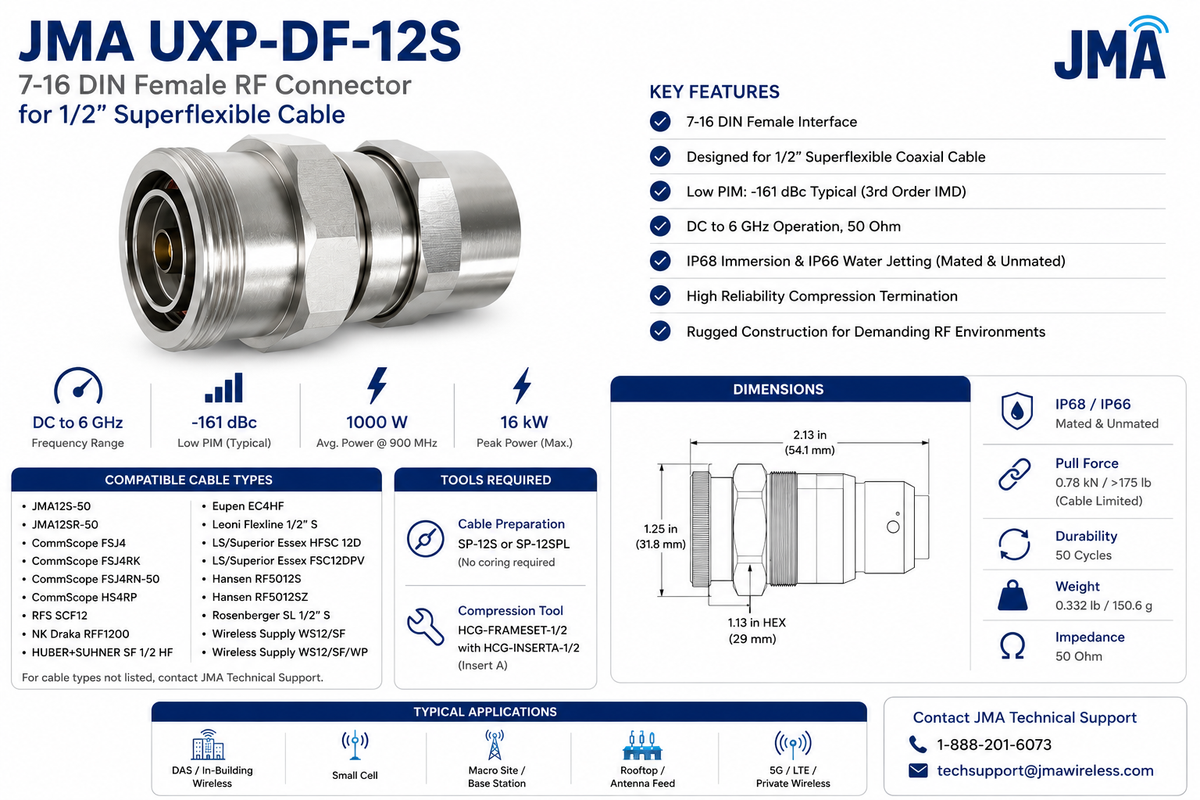

Key Specifications
✅ Interface: 7/16 DIN Female
✅ Cable Type: 1/2" Superflex
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ Return Loss: >40 dB @ 1 GHz, >36 dB @ 2 GHz, >32 dB @ 4 GHz
✅ PIM (3rd Order IMD): –160 dBc typical (IEC 62037)
✅ Insertion Loss: < 0.1√f(GHz) dB
✅ Power Handling: 3 kW avg @ 900 MHz, 40 kW peak
✅ Environmental Rating: IP67 / IP68
✅ Durability: >500 mating cycles
✅ Operating Temp: –55 °C to +85 °C
✅ Shielding Effectiveness: < –120 dB
✅ RoHS Compliant
Compatible RF Cable Types
-
Andrew/Commscope LDF4-50A
-
RFS LCF12-50
-
Draka RFA12-50
-
Leoni 1/2”R
-
Eupen EC4-50
-
Hansen 1/2”
-
Rosenberger SL 012R FRNC
