Description

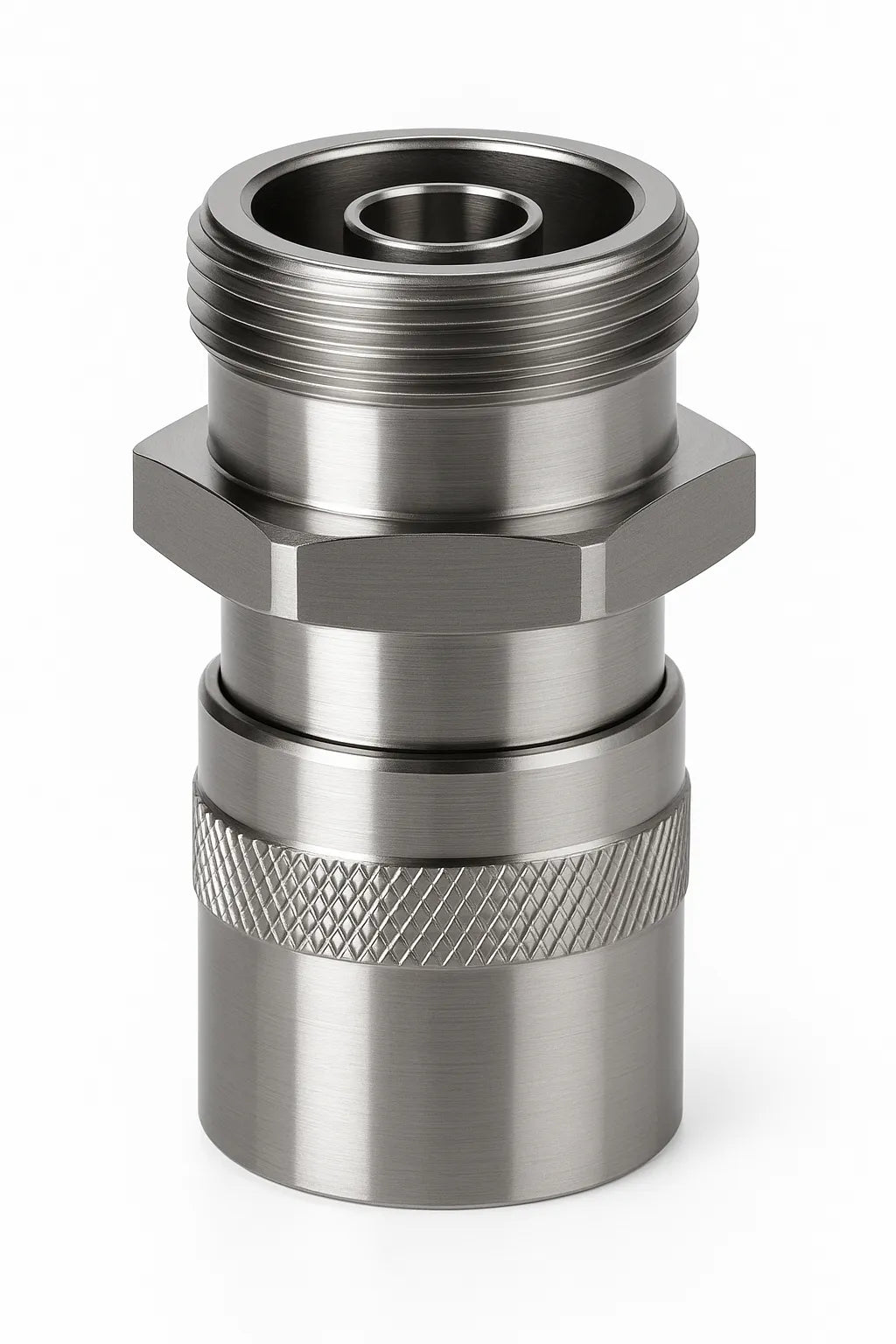

The JMA Wireless UXP-DF-12 is a high-performance 7/16 DIN Female RF connector designed for 1/2" annular coaxial cables. Engineered for ultra-low PIM performance and excellent shielding, it ensures reliable connectivity in demanding telecom environments. Its robust mechanical structure supports high pull force and torque loads, while offering excellent environmental sealing rated to IP67/IP68.
Key Specifications
✅ Interface: 7/16 DIN Female
✅ Cable Type: 1/2" Annular
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ Return Loss: 40 dB @ 1 GHz; 36 dB @ 2 GHz; 32 dB @ 4 GHz; 28 dB @ 6 GHz
✅ PIM (3rd Order IMD): –160 dBc typical (IEC 62037-2, -3)
✅ Insertion Loss: < 0.1√F(GHz)
✅ Voltage Withstand: > 3.0 kV
✅ Shielding Effectiveness: < –120 dB (0–1 GHz)
✅ Environmental Rating: IP67 / IP68
✅ Operating Temp: –55 °C to +85 °C
✅ Durability: >500 mating cycles
✅ RoHS Compliant
Compatible RF Cable Types
-
Andrew LDF4-50A
-
RFS LCF12-50
-
Draka RFA12-50
-
Leoni 1/2"R
-
Eupen EC4-50
-
Hansen 1/2"
-
Rosenberger SL 012R FRNC
