Description

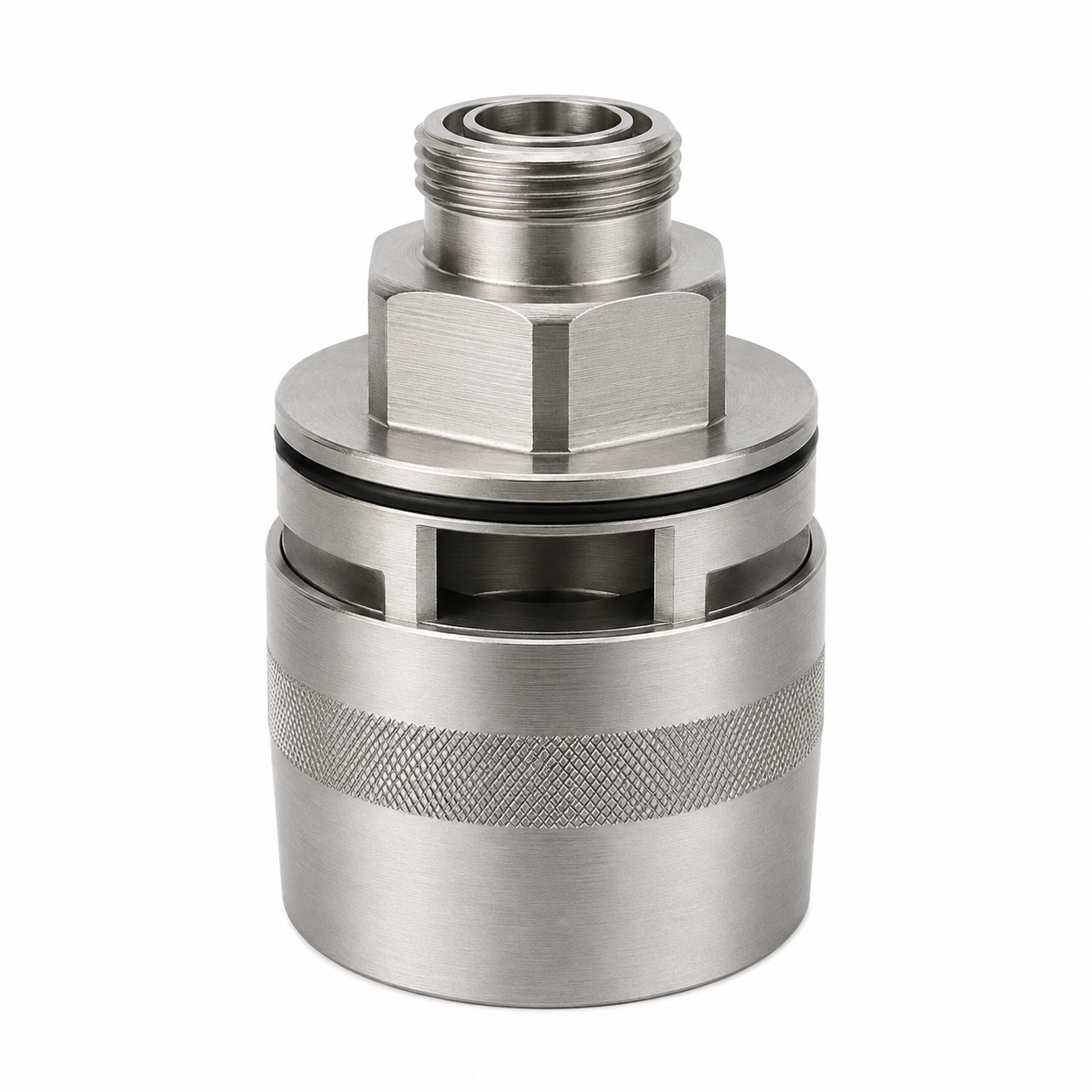

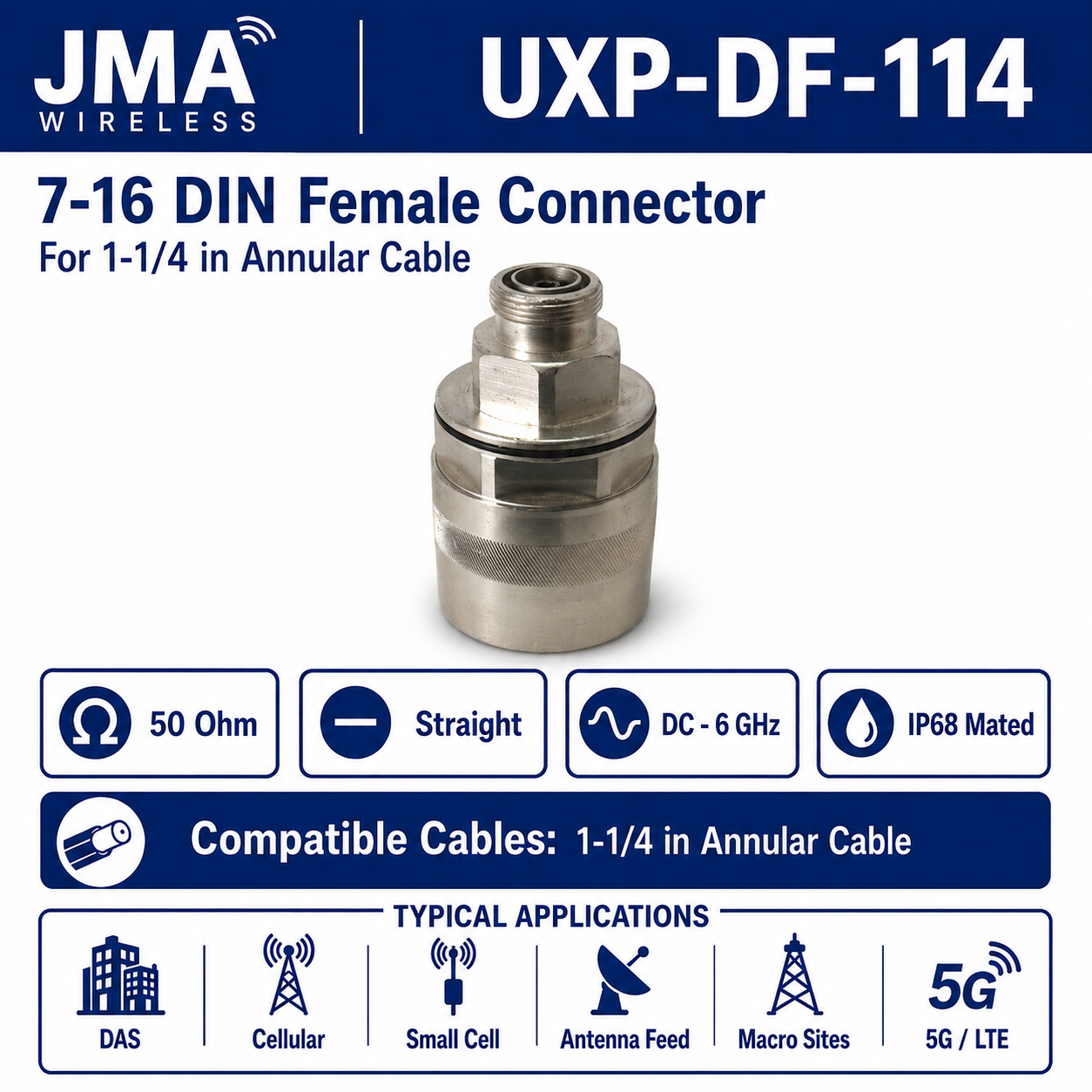

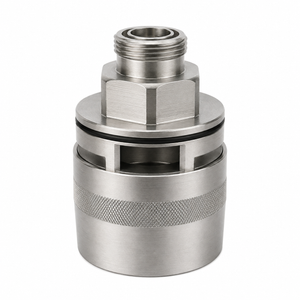

The JMA Wireless UXP-DF-114 is a 7-16 DIN Female RF connector designed for 1 1/4 inch annular coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector is built for demanding wireless network installations where reliable RF performance and 1 1/4 inch cable compatibility are required.
According to the JMA datasheet, the UXP-DF-114 has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 3000 W at 900 MHz, and peak power rating of 40 kW maximum. It is designed for 1 1/4 inch cable types and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DF-114
- Connector Type: 7-16 DIN Female RF Connector
- Cable Type: 1 1/4 inch annular coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 3000 W at 900 MHz
- Peak Power: 40 kW maximum
- DC Test Voltage: 4000 V
- Center Contact Resistance: Less than or equal to 0.4 milliohm
- Outer Contact Continuity: 1.5 milliohm maximum
- Shielding Effectiveness: Less than -130 dB at 0 to 1 GHz
- Pull Force: 1.89 kN / greater than 425 lb combined, cable limited
- Cable Retention Torque: 54.2 N-m / 40 lbf-ft, cable limited
- Interface Durability: 50 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: Boot WPS-6 used for in-line connections only / Port seal WPS-DF
- Cable Preparation Tool: SP-114, no coring required
- Hex Width: 38 mm / 1-1/2 in
- Compression Tool Options: HCG-CC with HCG-FS-114-01, or HCG-CC with HCG-FRAMESET-114
- Weight: 1.056 lb / 479.0 g
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- RFS UCF114
- CommScope AVA6
- CommScope AL6
- NK Draka RFA114
- Eupen Flexline 1-1/4 R
- Rosenberger SL 1-1/4 R
- LS/Superior Essex LHF 33D
- Other compatible 1 1/4 inch annular coaxial cables, subject to confirmation with JMA Technical Support
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $69.99 | $93.51 | $92.81 | $100.23 |
| You Save | 25% | 25% | 30% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your exact cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
