Description

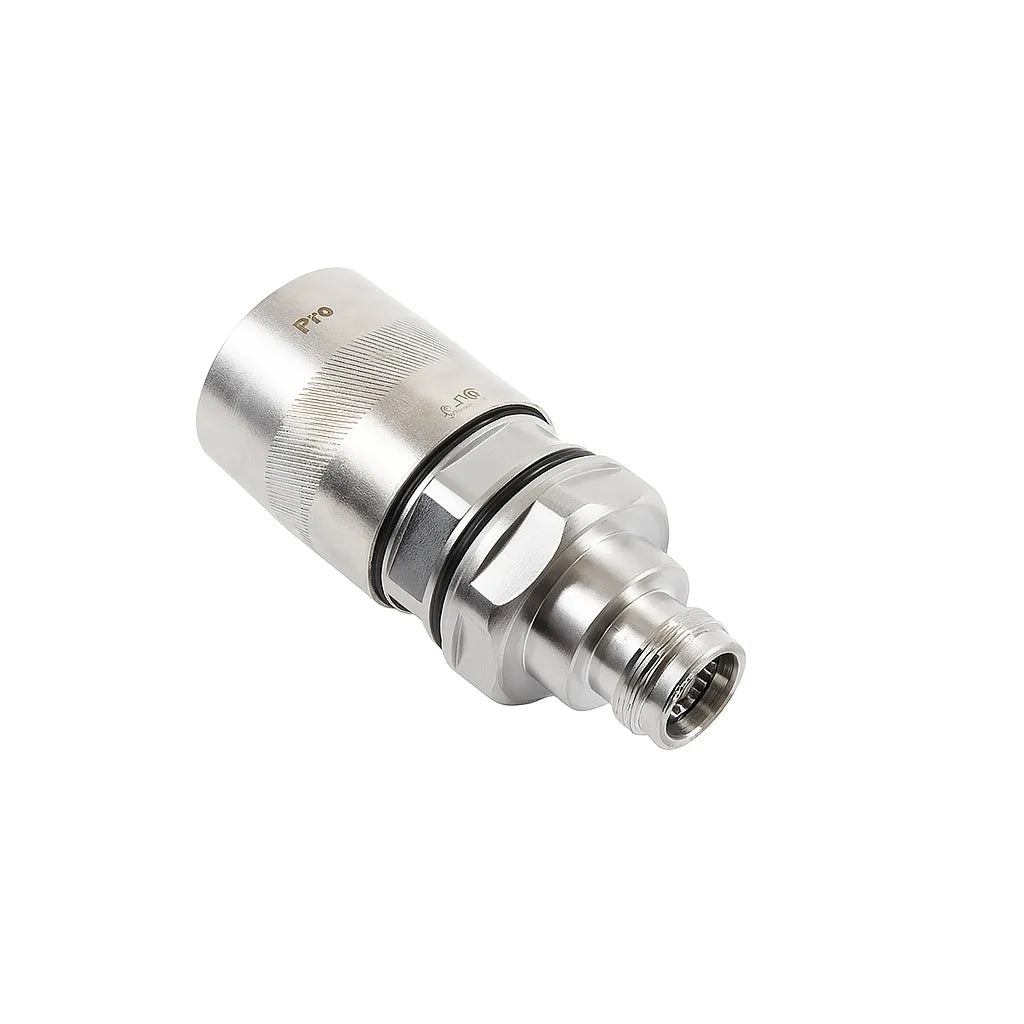

The JMA Wireless UXP-4F-78 is a high-performance 4.3–10 female RF connector specifically designed for 7/8” annular coaxial cables. Engineered for minimal PIM and exceptional durability, this connector is ideal for telecom, DAS, and in-building wireless applications. With robust environmental sealing (IP68), low insertion loss, and a wide operating frequency range up to 5 GHz, it meets the demanding needs of RF professionals.
Key Specifications
✅ Interface: 4.1-9.5 Mini DIN Male
✅ Cable Type: 1/2" Annular
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ PIM (3rd Order IMD): < –161 dBc (IEC 62037-2)
✅ Insertion Loss: 0.05 dB typical
✅ Return Loss: 40 dB @ 1 GHz; 36 dB @ 2 GHz; 32 dB @ 4 GHz
✅ Power Handling: 600W Avg @ 900 MHz; 15 kW Peak
✅ Shielding Effectiveness: < –120 dB @ 0–1 GHz
✅ Environmental Rating: IP66 / IP68
✅ Durability: >500 mating cycles
✅ Operating Temp: –55 °C to +85 °C
✅ RoHS Compliant
Compatible RF Cable Types
-
CommScope AVA5-50, LDF5-50, AL5-50
-
RFS LCF78-50
-
Draka RFA78
-
Leoni 7/8”R
-
Eupen EC5-50
-
LS/Superior Essex LHF 22D, LHF-22DU, HFC 22D, HFAC 22D
-
Hansen 7/8”
