Description

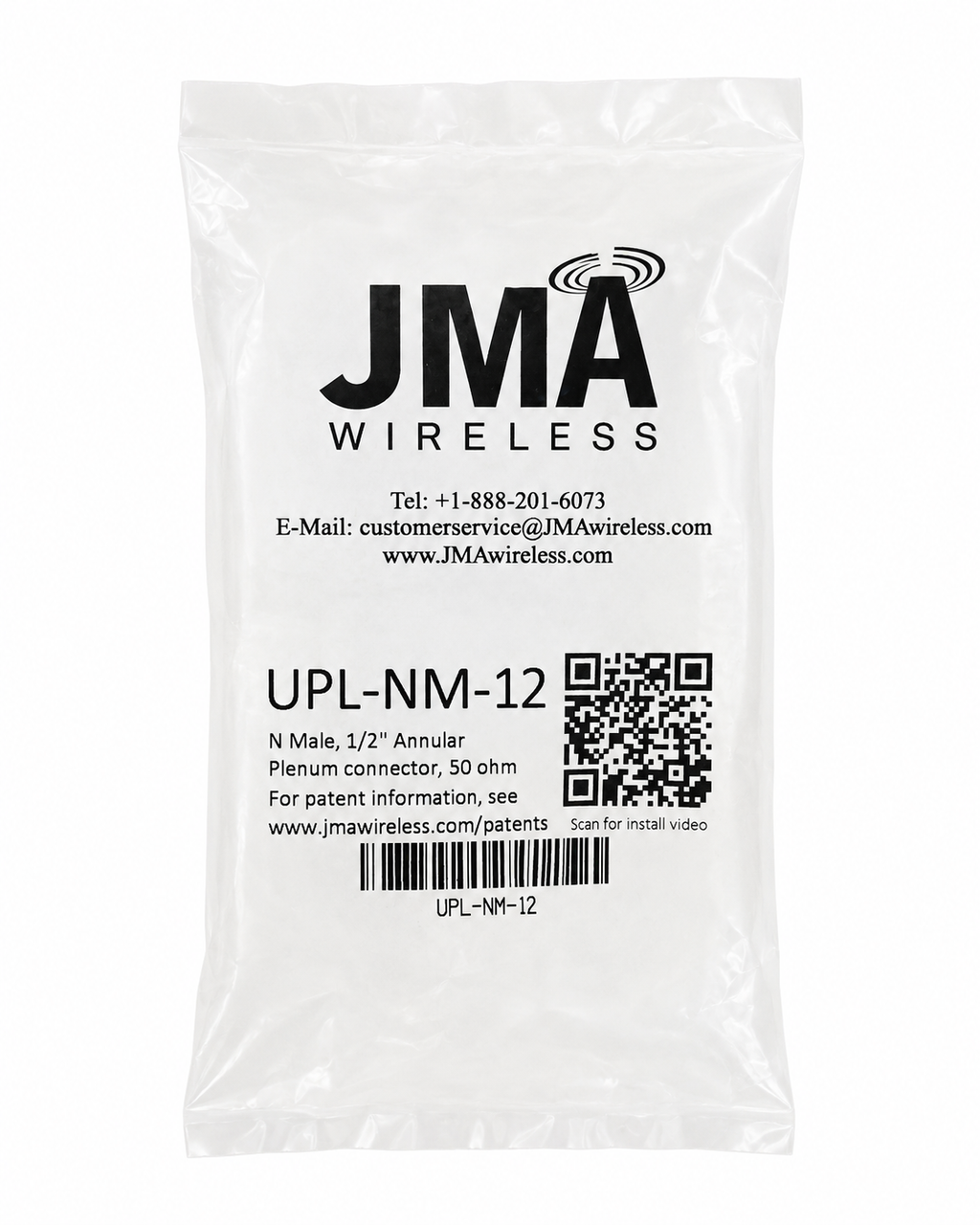

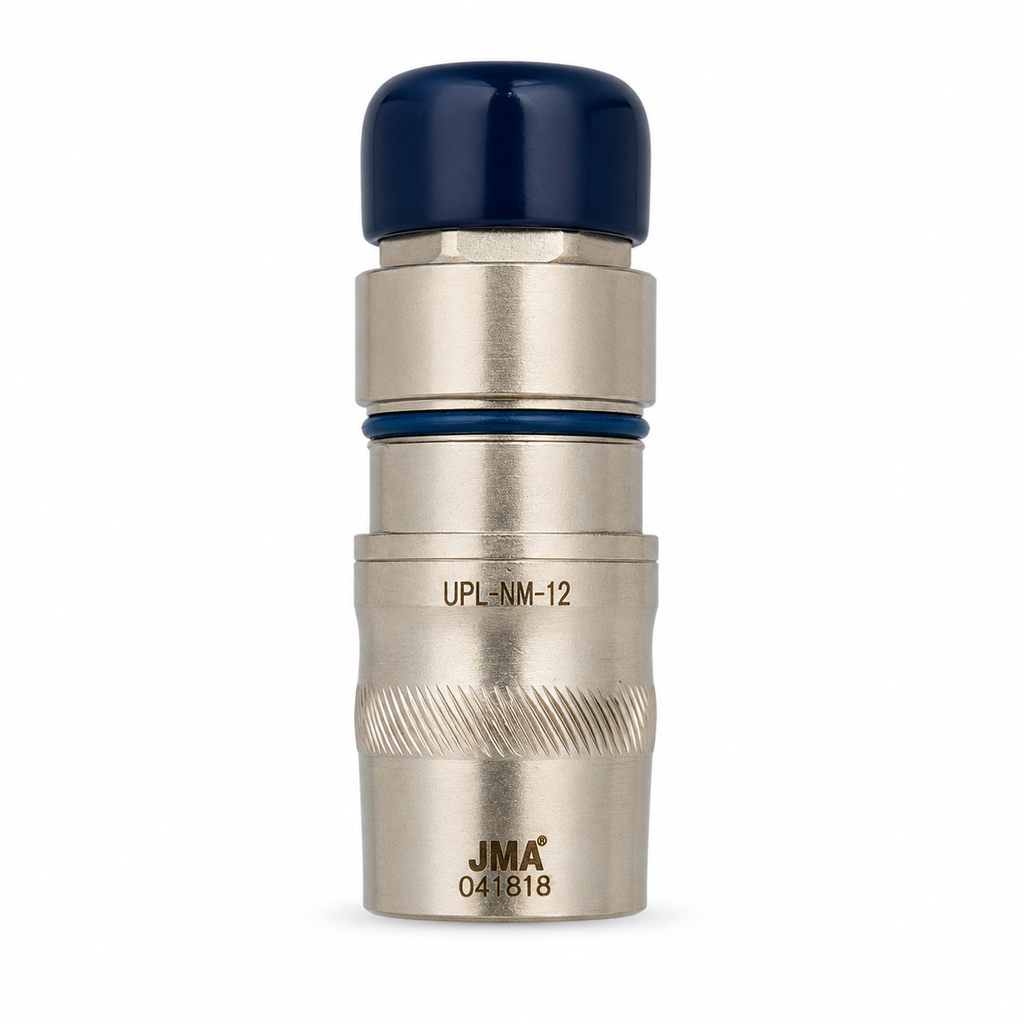

The JMA Wireless UPL-NM-12 is an N Male RF connector designed for 1/2 inch annular plenum coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is built for reliable RF performance in demanding wireless network deployments.
According to the JMA datasheet, the UPL-NM-12 has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 600 W at 900 MHz, and peak power rating of 10 kW maximum. It is designed for 1/2 inch annular plenum cable types and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UPL-NM-12
- Connector Type: N Male RF Connector
- Cable Type: 1/2 inch annular plenum coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 600 W at 900 MHz
- Peak Power: 10 kW maximum
- DC Test Voltage: 2000 V
- Center Contact Resistance: Less than or equal to 1.5 milliohm
- Outer Contact Continuity: 0.3 milliohm maximum
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Interface Durability: 500 cycles
- Pull Force: 0.89 kN / greater than 200 lb combined, cable limited
- Cable Retention Torque: 6.7 N-m / 5 lbf-ft, cable limited
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: N/A
- Cable Preparation Tool: SP-12PL-01, Bit V1 for all cables
- Torque Wrench: TW1412, 14 lbf-in / 1.58 N-m
- Compression Tool Options: HCG-CC with HCG-FS-12-01 and HCG-INS3-12-01, or HCG-CC with HCG-FRAMESET-1/2 and HCG-INSERTB-1/2
- Weight: Approximately 0.261 lb
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA12P-50
- CommScope HL4RPV-50
- CommScope HL4RPV-50B
- CommScope HL4RPV-50R
- CommScope AL4RPV-50
- HUBER+SUHNER Sucofeed 1/2 PW
- LS/Superior Essex LHF12DPV
- RFS ICA12-50JPL
- RFS ICA12-50JPLB
- RFS ICA12-50JPLR
- RFS ICA12-50JPLW
- RFS ICA12-50JPLLR
- RFS ICA12-50JPLLW
- Wireless Supply 12/WP
- Rosenberger RLCX-SL012R
- Eupen EC4-50PL
- Belden RA500P
- Acome HPL 50-1/2F
- Acome HPL 50-1/2F ALU
- Other compatible 1/2 inch annular plenum coaxial cables, subject to confirmation with JMA Technical Support
