Description

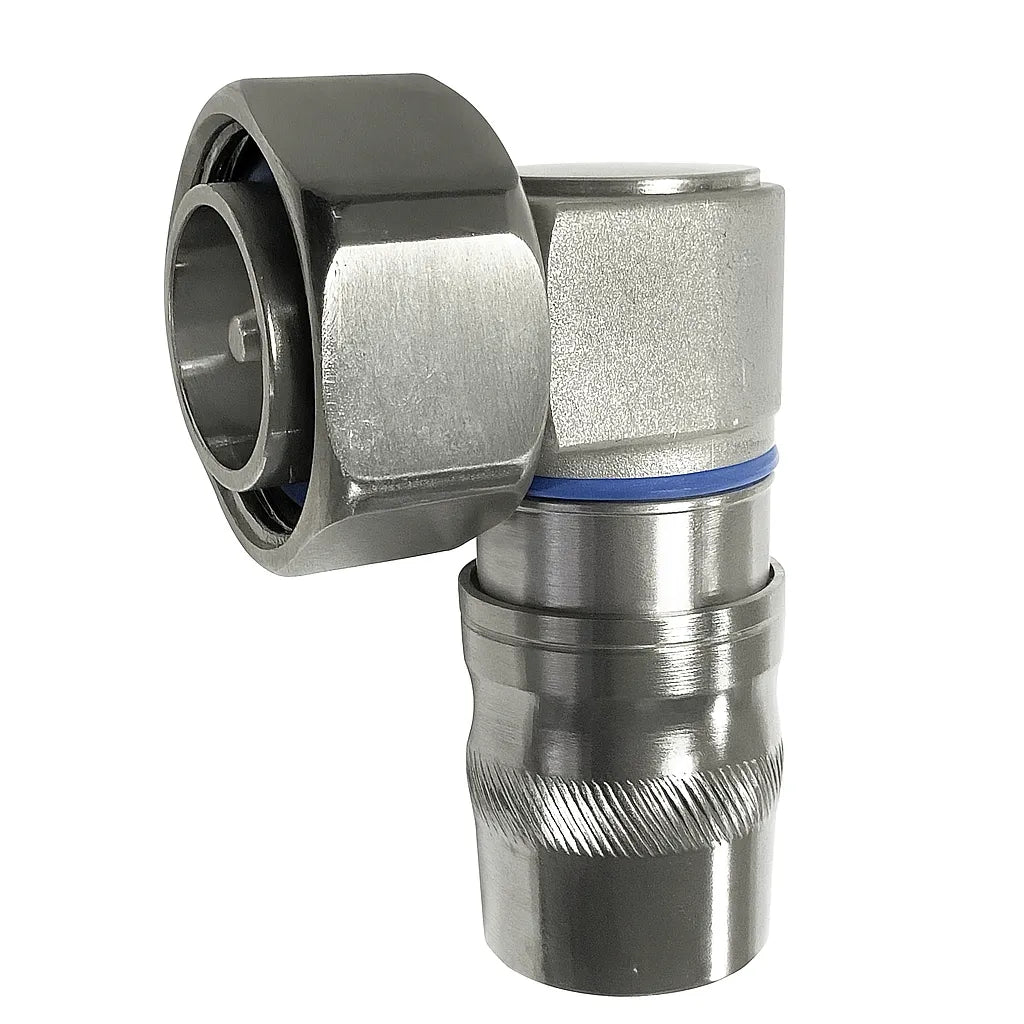

The JMA Wireless UPL-DRA-12 is a 7/16 DIN Male right angle RF connector designed for 1/2 inch annular plenum coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, and telecom infrastructure applications. This 50 Ohm connector is built for low PIM performance, strong shielding, and reliable RF connectivity in demanding wireless infrastructure deployments.
This right angle connector is useful where space, cable routing, or equipment clearance makes a straight connector less practical. According to the JMA datasheet, the UPL-DRA-12 supports DC to 6 GHz operation, has 3rd order IMD performance of -153 dBc minimum and -160 dBc typical, and provides IP67 / IP68 moisture ingress protection for outdoor and in-building wireless installations.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UPL-DRA-12
- Connector Type: 7/16 DIN Male Right Angle RF Connector
- Cable Type: 1/2 inch annular plenum coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- PIM / IMD Performance: -153 dBc minimum, -160 dBc typical
- Insertion Loss: Less than 0.1 x sqrt F(GHz)
- Voltage Withstand: Greater than 3.0 kV
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Environmental Rating: IP67 / IP68 moisture ingress protection
- Interface Durability: 500 cycles
- Operating Temperature: -55 C to +85 C
- Weather Protection System: JMA WPS-4-DRA
- Approx. Dimensions: 2.115 inch x 1.810 inch, 1.040 inch outer diameter
- Hex Width: 1.25 inch
- Weight: Approximately 0.461 lb
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, base station, and telecom infrastructure
Compatible RF Cable Types
- Andrew HL4RP-50A
- Andrew HL4RPV-50
- Andrew AL4PRV-50
- RFS ICA12-50JPL
- RFS HCA12-50JPL
- RFS ICA12-50JPLW
- Other compatible 1/2 inch annular plenum coaxial cables
Price Comparison
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $24.99 | $46.19 | $52.04 | $53.08 |
| You Save | 46% | 52% | 53% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
