Description

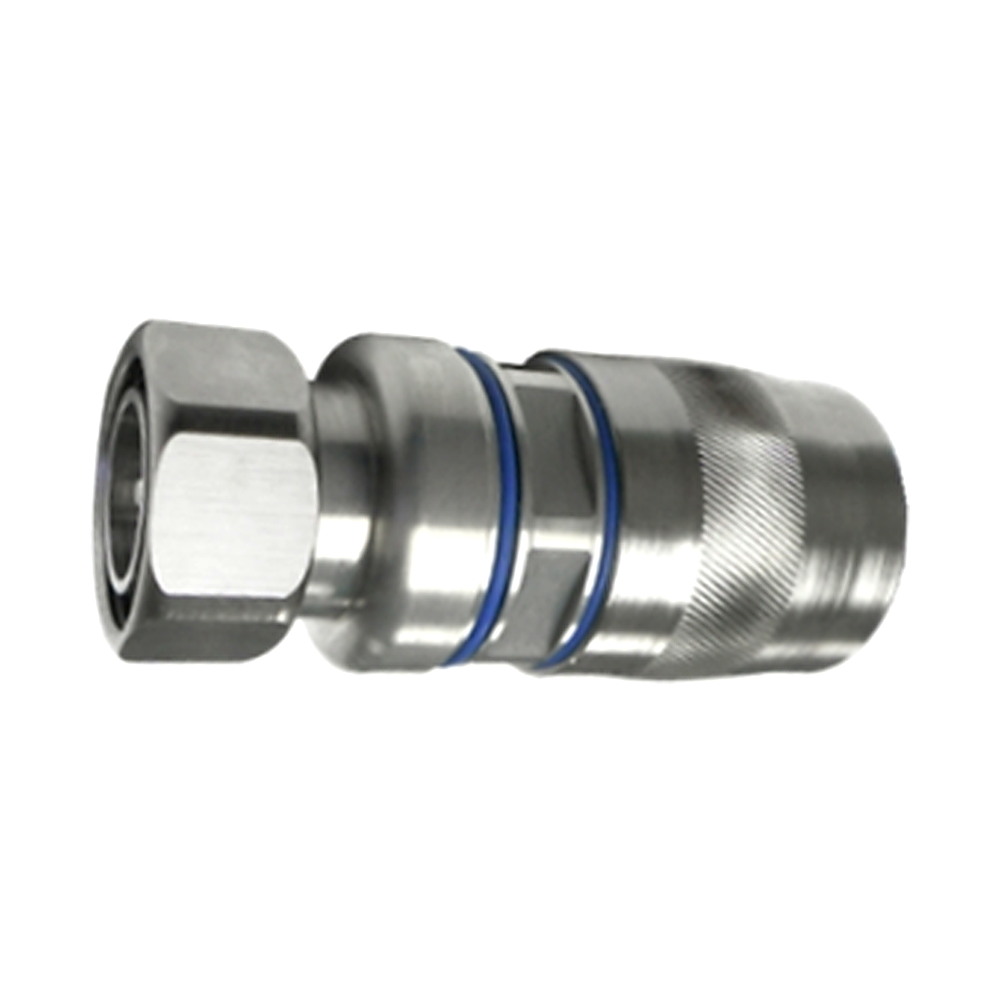

The JMA Wireless UPL-DM-78 is an RF connector with a 7-16 DIN Male interface, designed for 7/8 inch plenum coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector is built for demanding wireless network installations where reliable RF performance and plenum-rated cable compatibility are required.
According to the JMA datasheet, the UPL-DM-78 has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 3000 W at 900 MHz, and peak power rating of 40 kW maximum. It is designed for 7/8 inch plenum cable types and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UPL-DM-78
- Connector Type: 7-16 DIN Male RF Connector
- Cable Type: 7/8 inch plenum coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 3000 W at 900 MHz
- Peak Power: 40 kW maximum
- DC Test Voltage: 4000 V
- Center Contact Resistance: Less than or equal to 0.4 milliohm
- Outer Contact Continuity: 1.5 milliohm maximum
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Pull Force: 1.56 kN / greater than 350 lb combined, cable limited
- Cable Retention Torque: 21.7 N-m / 16 lbf-ft, cable limited
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: N/A
- Cable Preparation Tool: SP-78PL, no coring required
- Compression Tool Options: HCG-CC with HCG-FS-78-01, or HCG-CC with HCG-FRAMESET-7/8
- Torque Wrench: TQ-114-F18, 18 lbf-ft / 24.4 N-m
- Weight: 0.629 lb / 285 g
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- CommScope HJ5
- CommScope HJ5RP
- CommScope HJ5RPV
- RFS HCA78
- Other compatible 7/8 inch plenum coaxial cables, subject to confirmation with JMA Technical Support
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $69.99 | $89.51 | N/A | $96.11 |
| You Save | 22% | N/A | 27% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your exact cable type and installation requirements before purchase.
