Description

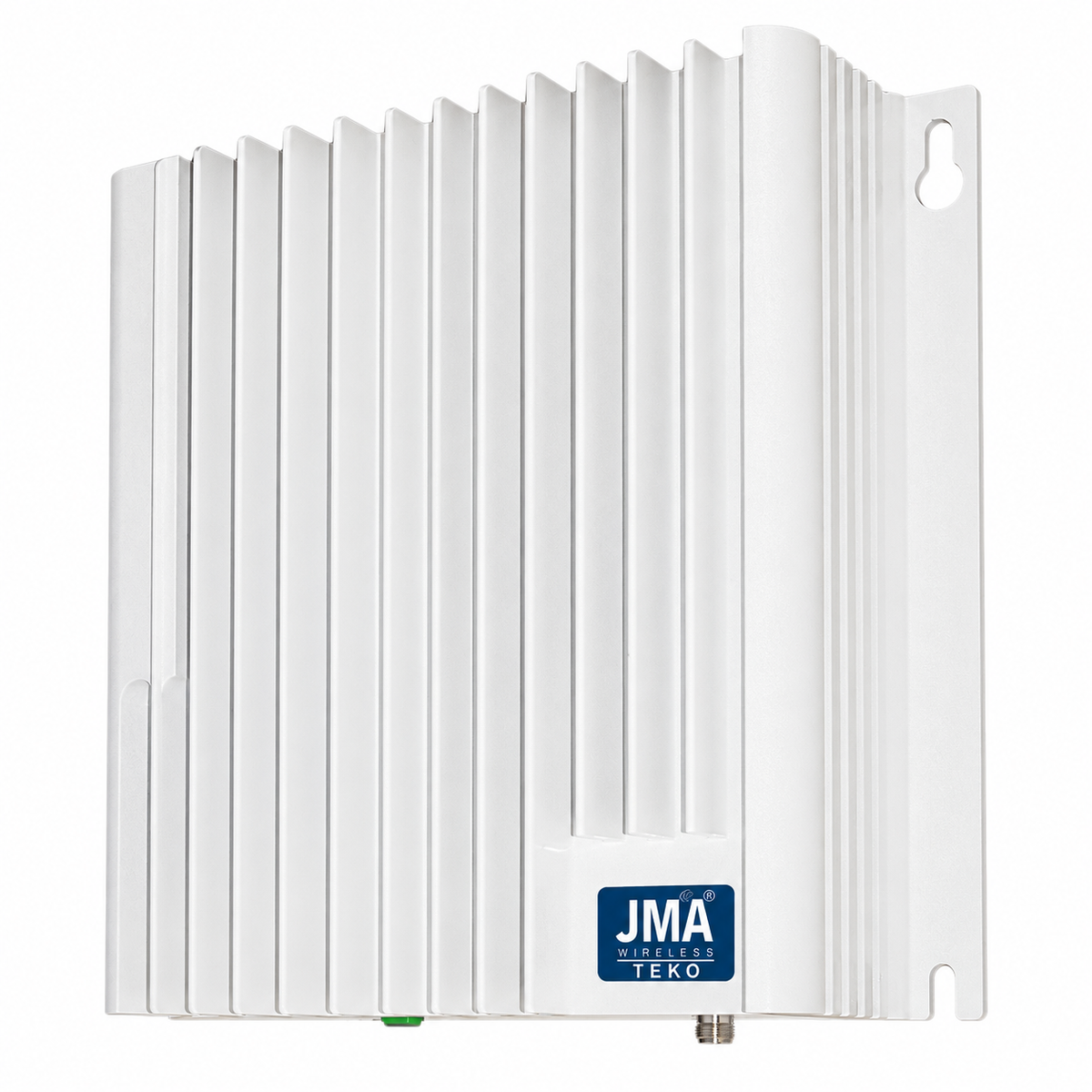

The JMA Wireless TRU7F8PWE/48-WS is a TEKO enhanced low power remote unit designed for 700 MHz and 800 MHz public safety communications. It operates within a compatible TEKO distributed antenna system (DAS) to extend radio coverage throughout buildings, campuses, tunnels, and other challenging coverage areas.
This model uses a nominal -48 VDC power supply and connects to the TEKO master unit over single-mode optical fiber. Wavelength division multiplexing (WDM) supports uplink and downlink communication over the same fiber, while automatic gain control helps maintain consistent system gain as optical losses vary. Passive cooling provides fanless operation.
Key Specifications
- Manufacturer: JMA Wireless
- Platform: TEKO DAS
- Part Number: TRU7F8PWE/48-WS
- Product Type: Dual-band enhanced low power remote unit
- Operating Bands: 700 MHz and 800 MHz public safety
- Downlink Frequencies: 763–775 MHz and 851–862 MHz
- Uplink Frequency Range: 793–817 MHz
- Downlink Output Power: 31 dBm with one carrier; output power varies with carrier configuration
- RF Connector: N-type female
- Optical Connector: SC/APC
- Fiber Type: Single-mode 9/125
- Optical Link Budget: 10 dB with automatic gain control
- Optical Link Distance: Up to 20 km (12.4 miles), subject to optical link requirements
- Power Input: Nominal -48 VDC; operating range -72 to -36 VDC
- Power Consumption: 70 W
- Cooling: Passive natural convection
- Operating Temperature: -40°C to +55°C (-40°F to +131°F)
- IP Rating: IP32 enclosure; IP66 with the optional protection kit
- Dimensions: Approximately 14.65 × 13.78 × 4.02 inches (372 × 350 × 102 mm), including heat sinks and connectors
- Unit Weight: Approximately 28.7 lb (13 kg), excluding shipping materials
- Monitoring and Control: Remote supervision over fiber, RF on/off control, uplink/downlink attenuation, and external alarm/control interfaces
Typical Applications
- Public safety radio coverage within compatible TEKO DAS installations
- Coverage distribution in commercial buildings, campuses, and large facilities
- Tunnel and other coverage-extension projects requiring fiber-connected remote units
- Replacement or expansion of compatible existing TEKO public safety systems
Please Note: Verify compatibility with your TEKO master unit, system configuration, frequency requirements, and DC power source before purchase. IP66 protection requires the optional protection kit. The manufacturer identifies this product as a professional Class B signal booster intended for FCC licensees and qualified installers; consult the manufacturer’s installation and operating requirements.
