Description

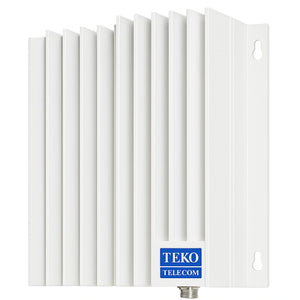

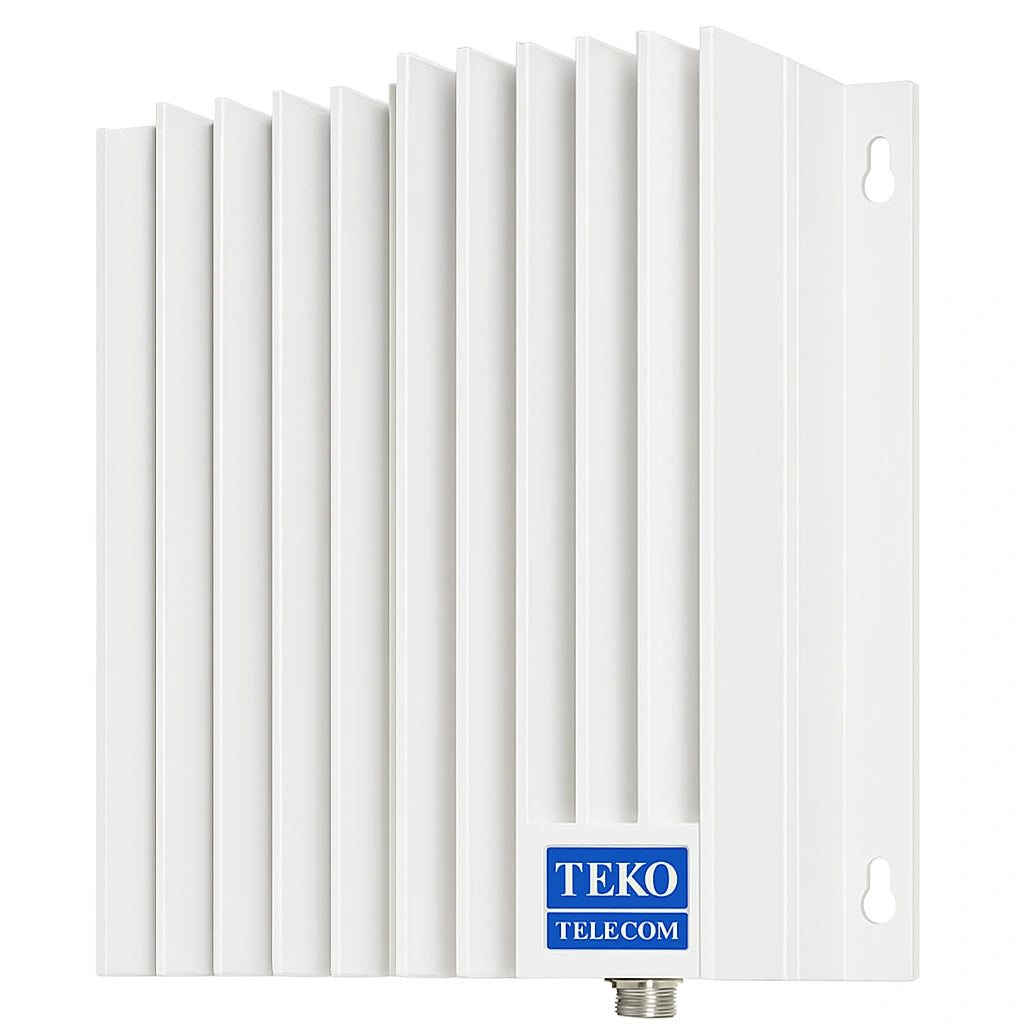

The JMA Wireless TRL7S8SC8A19AWDS is a 5-band enhanced Low Power Remote Unit from the Teko DAS platform, supporting SMR700, SMR800, AMPS850, PCS1900, and AWS1721 bands. Engineered for optimal multi-operator performance, this compact unit delivers consistent signal quality using digital optical transport, Automatic Level Control (ALC), and integrated RF antenna combiners to minimize passive intermodulation (PIM).
Ideal for in-building wireless coverage and capacity distribution, it supports uplink and downlink optical transmission up to 20 km. With passive cooling, an IP32-rated chassis (upgradeable to IP66), and a power-efficient footprint, this remote unit is purpose-built for enterprise, stadium, campus, and public safety deployments requiring robust LTE and 4G support across multiple bands.
Key Specifications
✅ Bands: SMR700, SMR800 + AMPS, Cellular 850, PCS 1900, AWS 1700
✅ Power Output: Up to 31 dBm per band (1 carrier)
✅ Optical Link: SC-APC, WDM enabled, 20 km max
✅ Input Power: 85–264VAC or -36 to -72VDC
✅ Cooling: Passive
✅ Weight: Approx. 41.9 lbs (19 kg)
✅ Dimensions: 16.3 x 16.3 x 5.73 in
✅ IP Rating: IP32 (upgradable to IP66 with protection kit)
