Description

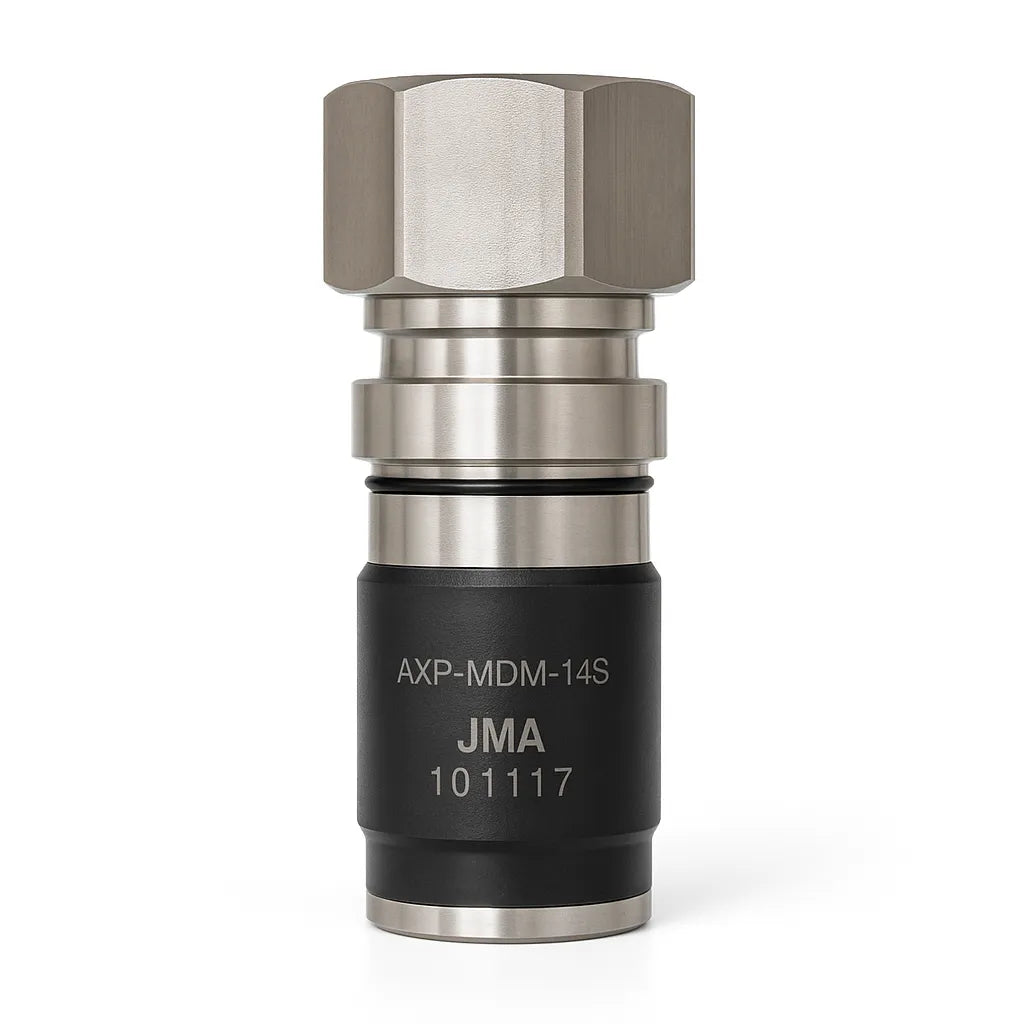

The JMA AXP-MDM-14S is a 4.1-9.5 Mini DIN Male RF connector designed for 1/4 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, and telecom infrastructure applications. This 50 Ohm low PIM connector supports operation from DC to 6 GHz and is designed for reliable RF performance in wireless network installations.
The AXP-MDM-14S provides typical 3rd order IMD / PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 600 W at 900 MHz, and a maximum peak power rating of 6.4 kW. It is designed for supported 1/4 inch superflexible cable types and provides IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: AXP-MDM-14S
- Connector Type: 4.1-9.5 Mini DIN Male RF Connector
- Cable Type: 1/4 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 600 W at 900 MHz
- Maximum Peak Power: 6.4 kW
- DC Test Voltage: 1600 V
- Shielding Effectiveness: < -120 dB at 0 to 1 GHz
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55°C to +85°C
- Weather Protection System: N/A
- Cable Preparation Tool: SP-14S
- Compression Tool: HCG-FRAMESET-1/4, HCG-CC
- Torque Wrench: TQ-78-F8, 8 lbf-ft / 10.85 N-m
- Weight: Approximately 0.282 lb
Compatible RF Cable Types
- CommScope FSJ1-50A
- CommScope FSJ1RK-50B
- PTS1-HRL
- RFS SCF14-50J
- RFS SCF14-50JFN
- Eupen EC1-50-HF
- Hansen RF5014S
- Hansen RF5014SZ
Common Applications
- Distributed Antenna Systems (DAS)
- 5G, LTE, and 4G wireless infrastructure
- Private wireless networks
- Small cell installations
- Macro wireless sites
- Base station RF cable assemblies
- Antenna feed systems
- Low PIM RF infrastructure
Please Note: Please confirm compatibility with your exact cable type and installation requirements before purchase.
