Description

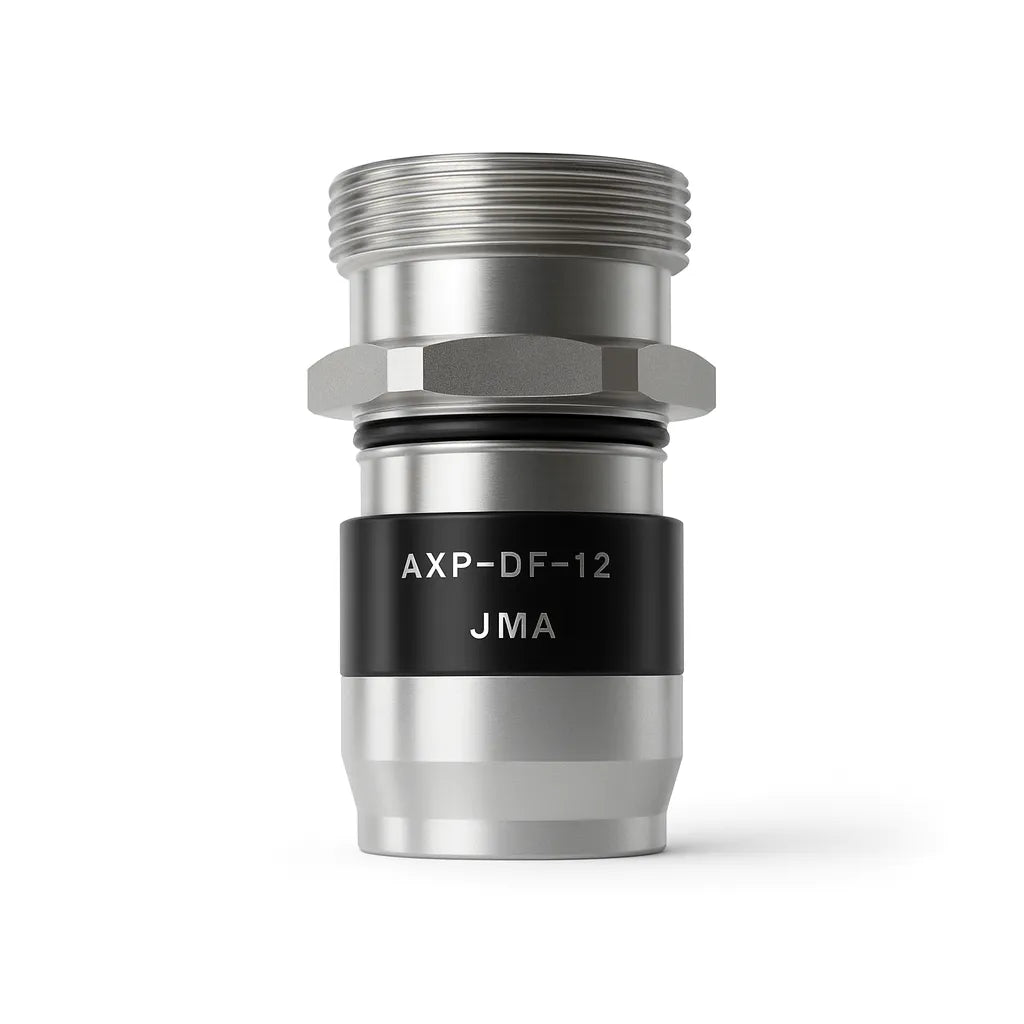

The JMA AXP-DF-12 is a 7-16 DIN Female RF connector designed for 1/2 inch annular coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, and telecom infrastructure applications. This 50 Ohm low PIM connector supports operation from DC to 6 GHz and is designed for reliable RF performance in demanding wireless network installations.
The AXP-DF-12 provides typical 3rd order IMD / PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 1100 W at 900 MHz, and a maximum peak power rating of 40 kW. It is designed for supported 1/2 inch annular cable types and provides IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: AXP-DF-12
- Connector Type: 7-16 DIN Female RF Connector
- Cable Type: 1/2 inch annular coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 1100 W at 900 MHz
- Maximum Peak Power: 40 kW
- DC Test Voltage: 4000 V
- Center Contact Resistance: ≤ 0.8 milliohm
- Outer Contact Continuity: 1.5 milliohm maximum
- Shielding Effectiveness: < -120 dB at 0 to 1 GHz
- Interface Durability: 50 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55°C to +85°C
- Weather Protection System: N/A
- Cable Preparation Tool: SP-1/2-LDF4D, U bit
- Compression Tool: HCG-FRAMESET-1/2, HCG-CC, Insert A
- Hex Width: 32 mm / 1-1/4 in
- Weight: 0.22 lb / 99.79 g
Compatible RF Cable Types
- CommScope LDF4
- CommScope LDF4RK
- CommScope LDF4 RN
- RFS LCF12
- NK Draka RFA1200
- Eupen EC4
- LS/Superior Essex HFC 12D
- LS/Superior Essex HFAC 12D
- Leoni Flexline 1/2 inch R
- Hansen RF5012
- Hansen RF5012Z
- Rosenberger SL 1/2 inch R
Common Applications
- Distributed Antenna Systems (DAS)
- 5G, LTE, and 4G wireless infrastructure
- Private wireless networks
- Small cell installations
- Macro wireless sites
- Base station RF cable assemblies
- Antenna feed systems
- Low PIM RF infrastructure
Please Note: Please confirm compatibility with your exact cable type and installation requirements before purchase.
