Description

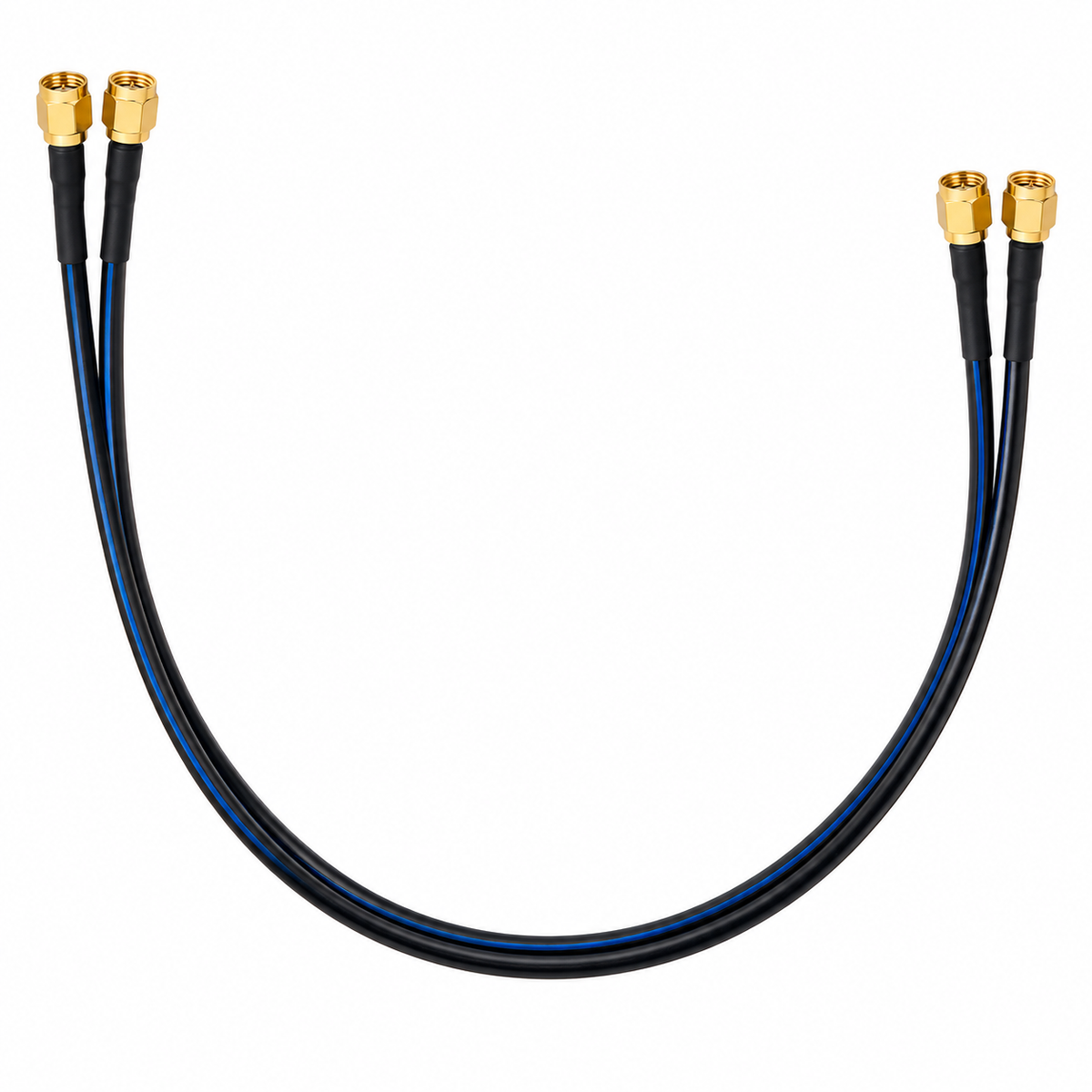

The HUBER+SUHNER ENVIROFLEX 316 D RF Cable Assembly is a professional-grade 50 Ohm SMA Male to SMA Male coaxial cable assembly designed for RF, microwave, test, measurement, telecommunications, laboratory, and wireless applications. Built with genuine HUBER+SUHNER ENVIROFLEX 316 D cable and gold-plated SMA Male connectors, these assemblies provide a high-quality RF interconnect solution for demanding professional environments.
ENVIROFLEX 316 D features a silver-plated center conductor, dual silver-plated copper braid shielding, and a durable RADOX jacket. The cable supports operation up to 6 GHz, has a nominal outside diameter of 3.16 mm, and is designed for excellent flexibility, shielding effectiveness, and environmental resistance. This Shopify listing includes three selectable configurations: 1 PC - 60 Inch, 2 PCs Set - 16 Inch, and 4 PCs Set - 20 Inch.
Key Specifications
- Manufacturer: HUBER+SUHNER
- Cable Series: ENVIROFLEX 316 D
- Product Type: RF Coaxial Cable Assembly
- Connector 1: SMA Male
- Connector 2: SMA Male
- Connector Configuration: SMA Male to SMA Male

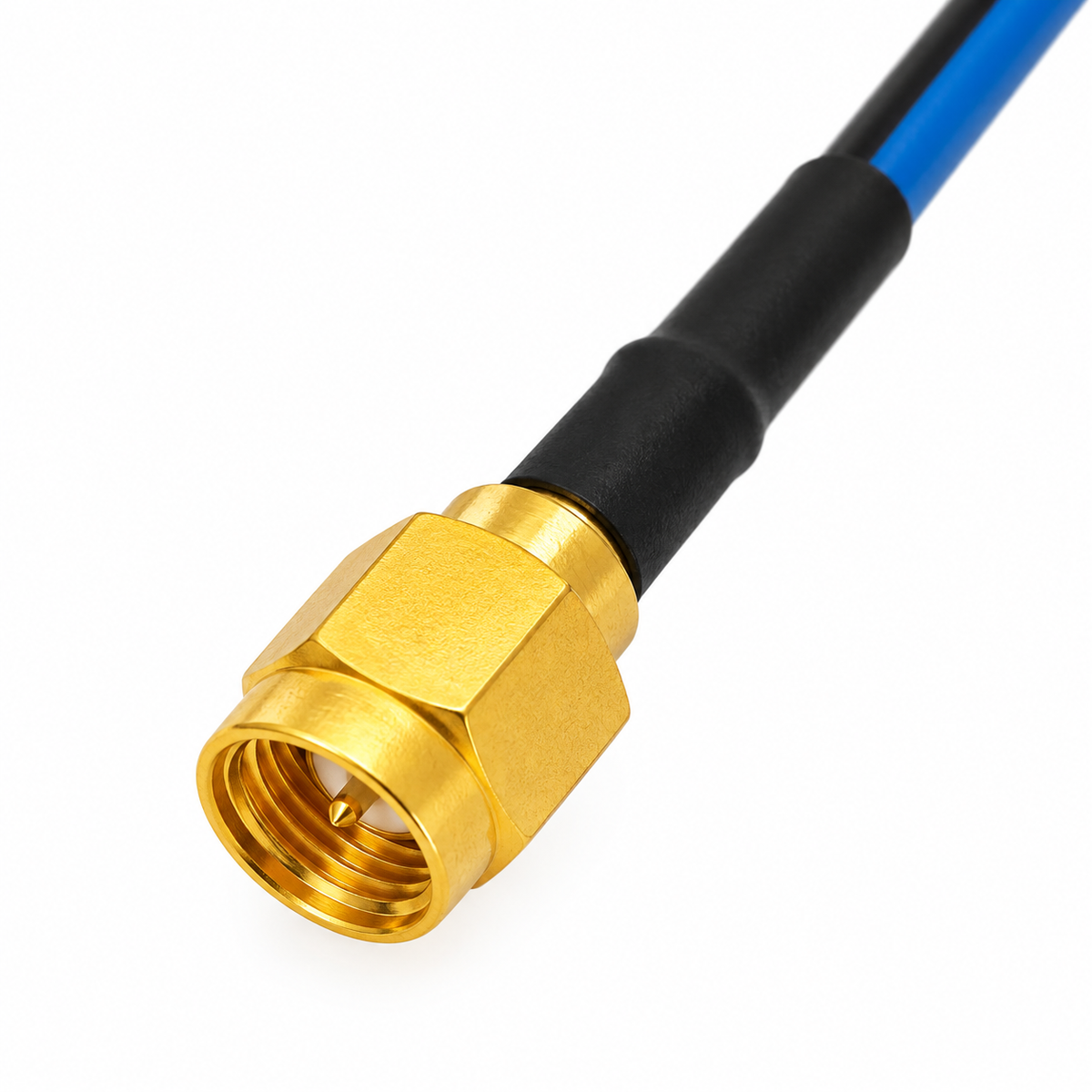

- Connector Finish: Gold Plated
- Impedance: 50 Ohm
- Operating Frequency: Up to 6 GHz
- Cable Type: RG316D LSFH Type
- Cable Outside Diameter: 3.16 mm
- Center Conductor: Steel / Copper, Silver Plated
- Center Conductor Diameter: 0.54 mm
- Primary Outer Conductor: Silver-Plated Copper Braid, 96% Coverage
- Secondary Outer Conductor: Silver-Plated Copper Braid, 90% Coverage
- Shielding: Double Braid
- Jacket Material: RADOX
- Jacket Color: Black
- Halogen Free: Yes
- Low Smoke: Yes
- Ozone Resistant: Yes
- UV Resistant: Yes
- Weathering Resistant: Yes
- Operating Temperature: -40°C to +105°C
- Static Bending Radius: 5 mm Minimum

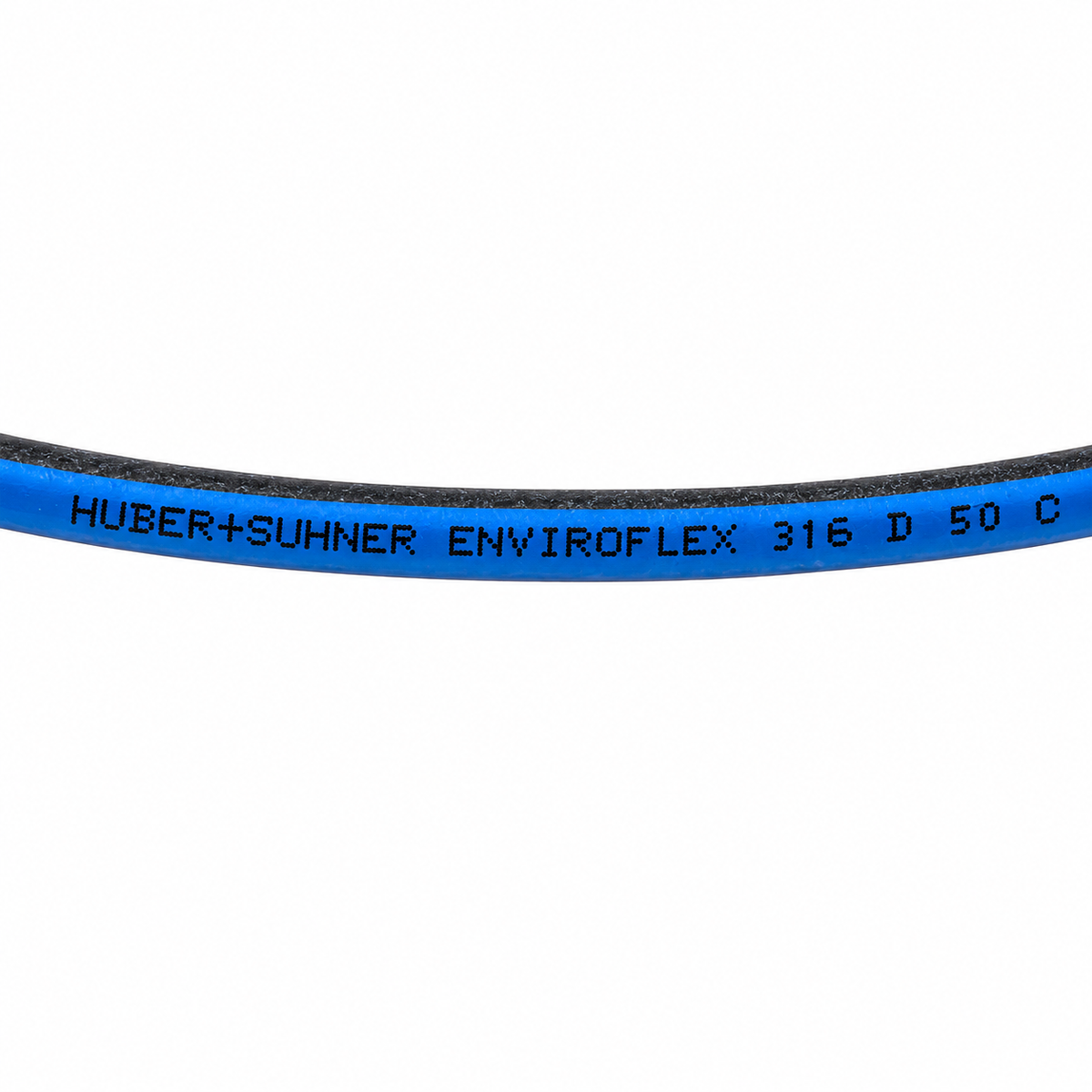

- Cable Marking: HUBER+SUHNER ENVIROFLEX 316 D 50 OHM / AWM STYLE 3651

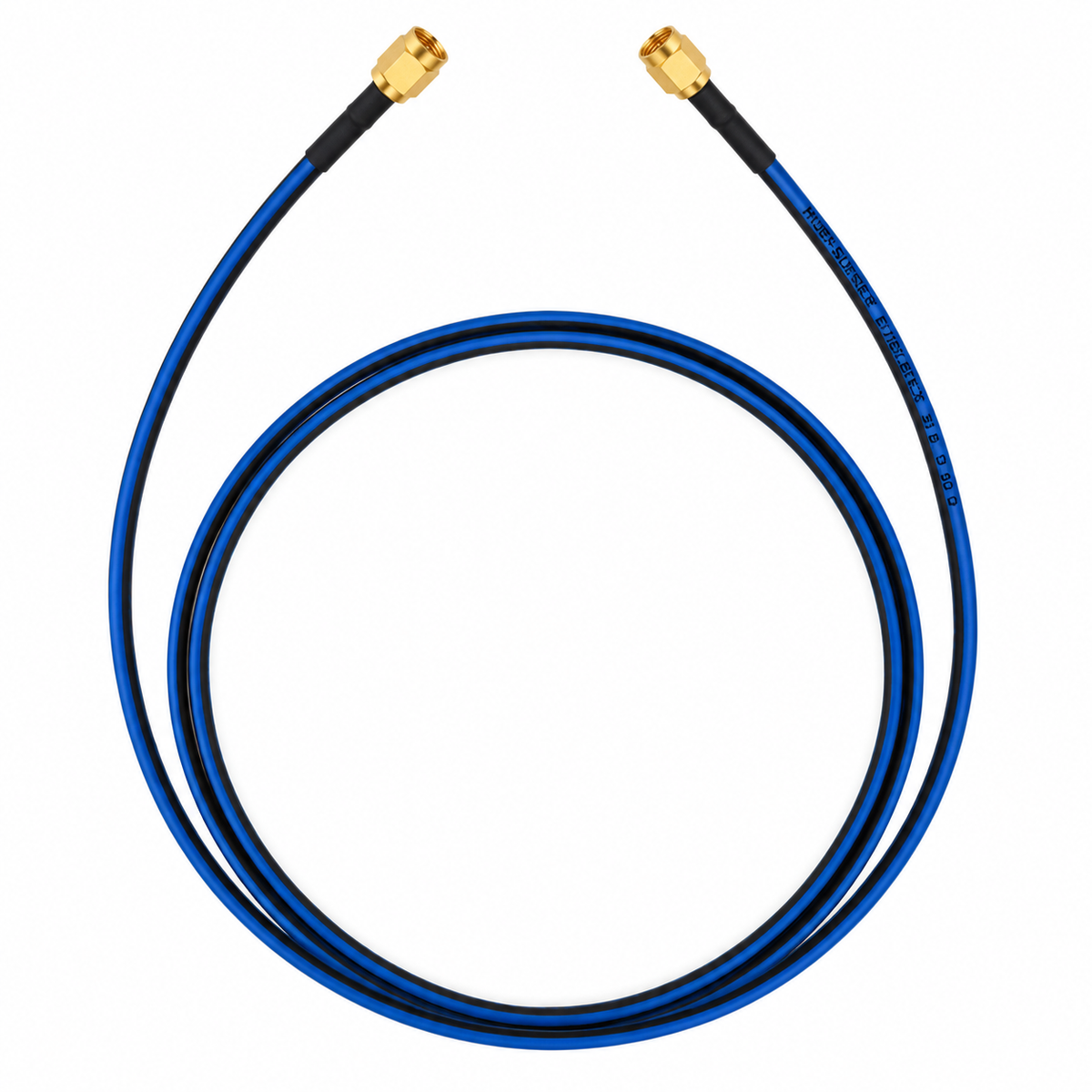

- Available Configuration: 1 PC - 60 Inch
- Available Configuration: 2 PCs Set - 16 Inch Each

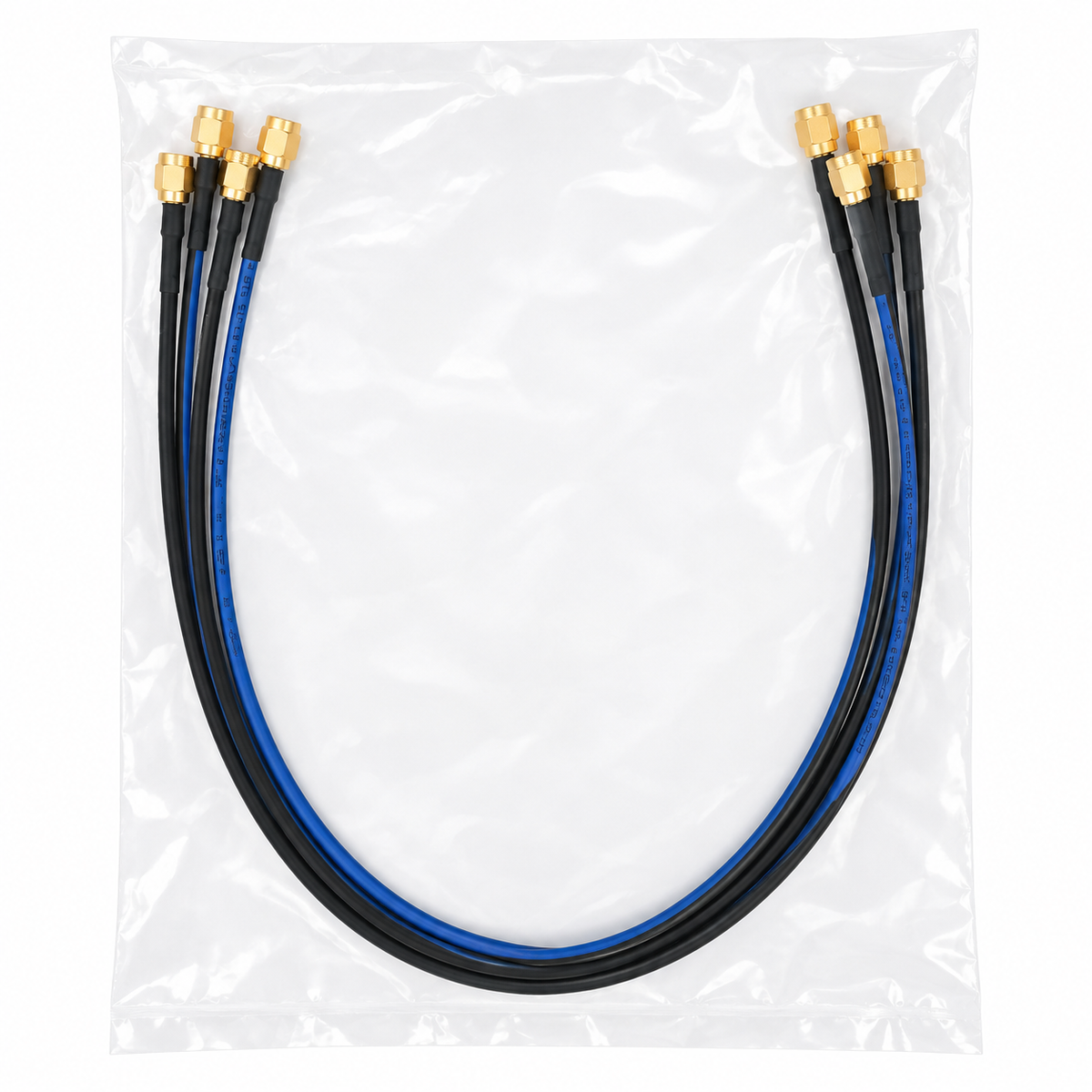

- Available Configuration: 4 PCs Set - 20 Inch Each
- Condition: New
Typical Applications
- RF and microwave test equipment
- Spectrum analyzers
- Vector network analyzers
- RF signal generators
- Laboratory test and measurement systems
- Wireless communications equipment
- Telecommunications systems
- Antenna and radio systems
- RF development and prototype systems
- Aerospace and defense electronics
- Industrial RF equipment
- Research and development laboratories
Please Note: This listing includes three selectable quantity and length configurations. The 1 PC - 60 Inch option includes one approximately 60-inch cable assembly. The 2 PCs Set - 16 Inch option includes two approximately 16-inch cable assemblies. The 4 PCs Set - 20 Inch option includes four approximately 20-inch cable assemblies. All configurations use genuine HUBER+SUHNER ENVIROFLEX 316 D 50 Ohm cable with gold-plated SMA Male connectors on both ends. Please select the desired configuration before ordering.
