Description

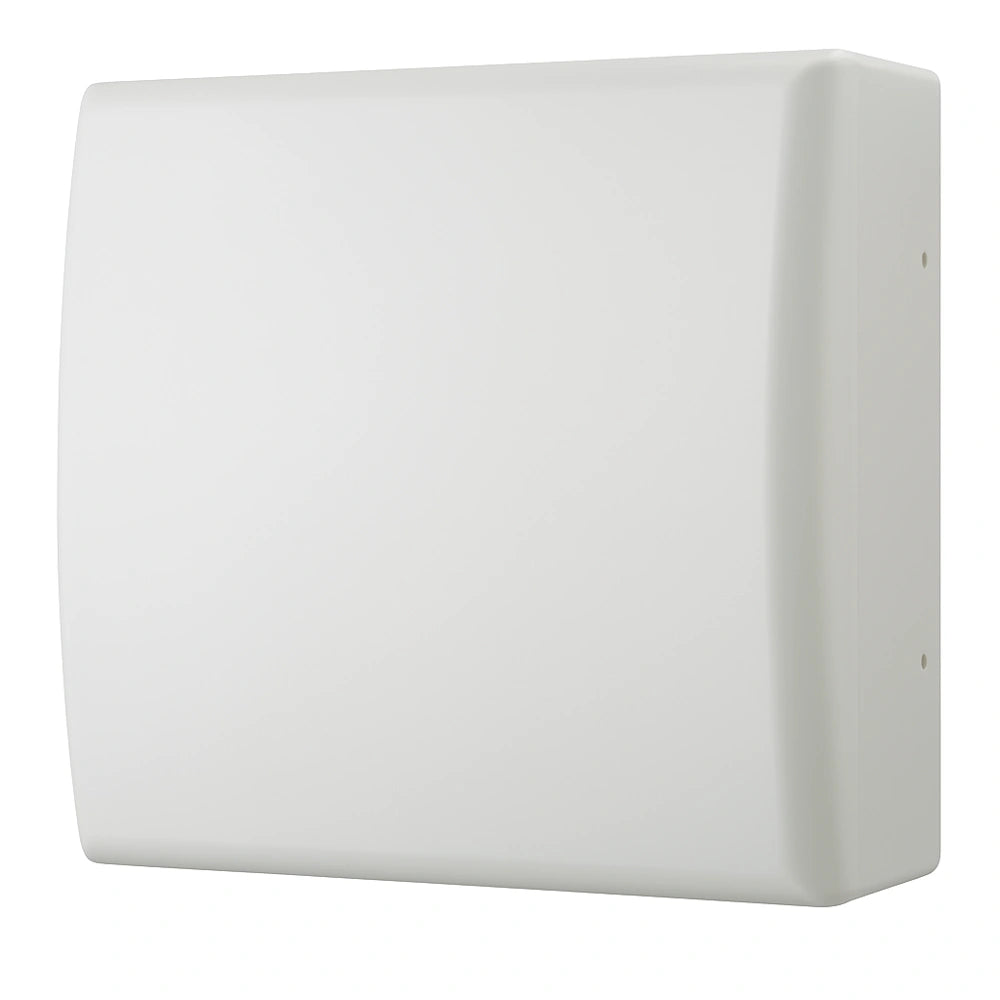

The Gamma Nu DO15X30302P is a high-performance multiband MIMO panel antenna built for high-capacity venues and advanced mobile communication systems. Covering both low band (698–960 MHz) and high band (1695–2700 MHz) frequencies, this antenna delivers 13–16 dBi gain with outstanding beam precision for optimal coverage, minimal interference, and reliable network performance.
Featuring a 30° horizontal and vertical beamwidth, dual ±45° polarization, and robust FRP gray radome, the DO15X30302P is ideal for indoor and outdoor DAS, 5G, and LTE deployments where high directivity and superior isolation are required.
Key Specifications
-
Model: DO15X30302P
-
Frequency Range: 698–960 MHz / 1695–2700 MHz
-
Gain: 12.7 – 16.2 dBi (band dependent)
-
Polarization: ±45° (dual slant)
-
Input Connectors: 2 × 7-16 DIN Female (optional 4.3-10 Female × 2)
-
Connector Position: Rear mount
-
Impedance: 50 Ω
-
VSWR: < 1.6 : 1
-
Isolation: 27 dB (typical)
-
Front-to-Back Ratio: > 23 – 39 dB (depending on band)
-
Cross-Polar Discrimination: > 21 – 24 dB
-
PIM @ 2 × 43 dBm: < –153 dBc
-
Max Input Power: 200 W per port
-
Beamwidth:
-
Horizontal: 23°–39° (band dependent)
-
Vertical: 23°–39° (band dependent)
-
-
Environmental Rating: RoHS compliant
-
Wind Load: 512 N (front/rear), 120 N (side) @ 100 mph
-
Max Wind Speed: 150 mph
Mechanical Details
-
Dimensions (H × W × D): 23.6 × 23.6 × 5.7 in (600 × 600 × 145 mm)
-
Weight (with clamp): 26.4 lb (12 kg)
-
Connector Options: 7-16 DIN (F) × 2 or 4.3-10 (F) × 2
-
Material: FRP gray radome
-
Mounting: Compatible with standard Gamma Nu clamps and accessories
Applications
-
DAS (Distributed Antenna Systems)
-
5G and LTE Network Infrastructure
-
Private Wireless Systems
-
Stadiums, Arenas, and Large Venues
-
High-Density Urban Installations
