Description

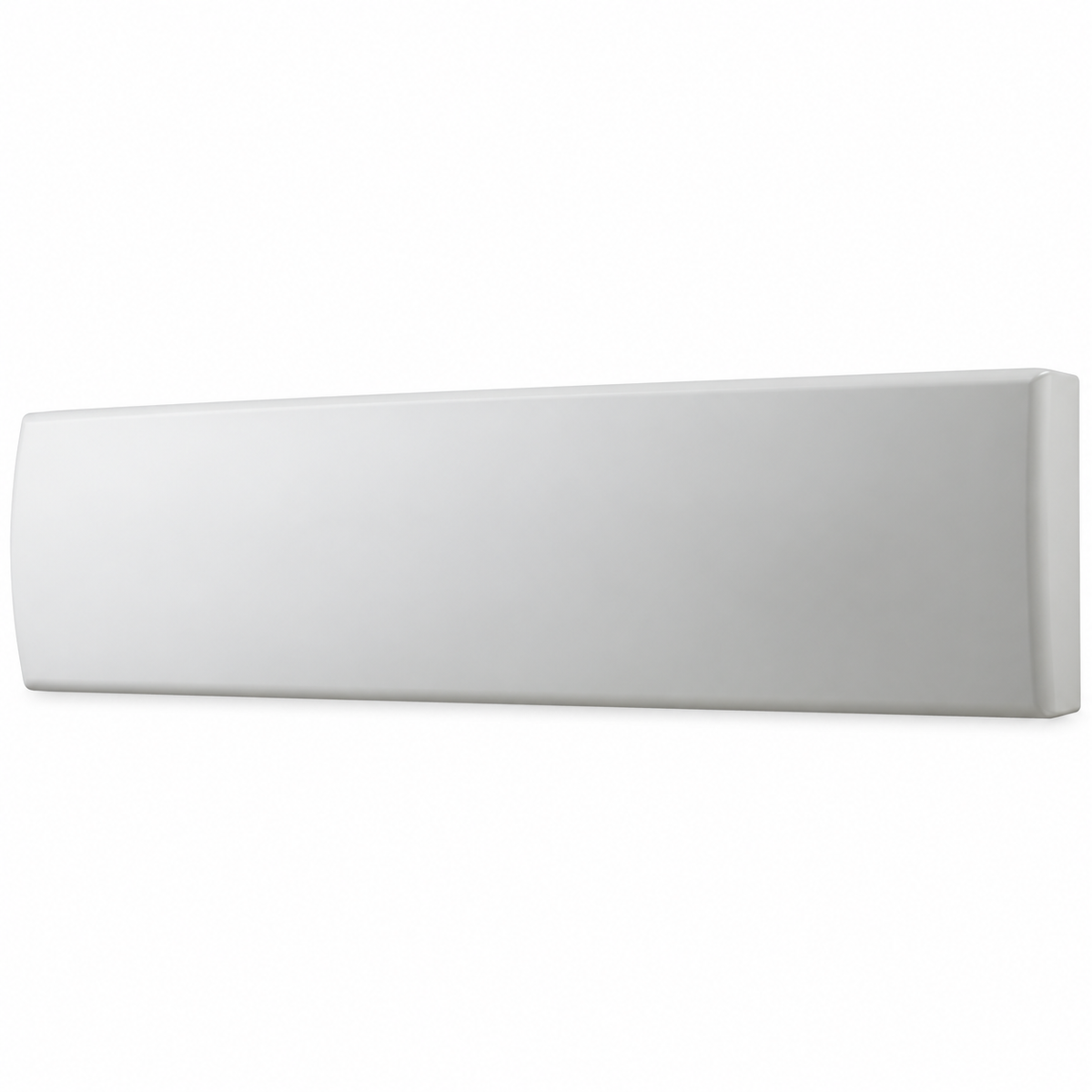

The Gamma Nu DO13X20702P is a dual-port MIMO stadium spot beam antenna designed for focused cellular coverage in stadiums, arenas, and other high-capacity venues. Operating across 698–960 MHz and 1695–2700 MHz, it supports compatible cellular and distributed antenna system (DAS) installations.
This antenna features dual ±45° polarization, nominal gain of 12/13 dBi, and a nominal 20° horizontal by 70° vertical beamwidth. Its directional coverage pattern helps concentrate RF coverage within a targeted area. Two rear-mounted 4.3-10 Female connectors provide connections to compatible RF cabling.
Key Specifications
- Manufacturer: Gamma Nu
- Model Number: DO13X20702P
- Product Type: Directional Stadium Spot Beam Panel Antenna
- Antenna Configuration: Dual-Port MIMO / 2T2R
- Low Frequency Band: 698–960 MHz
- High Frequency Band: 1695–2700 MHz
- Nominal Gain: 12/13 dBi
- Nominal Horizontal Beamwidth: 20°
- Nominal Vertical Beamwidth: 70°
- Polarization: Dual ±45°
- Impedance: 50 Ohms
- VSWR: 1.6:1
- Port Isolation: Greater than 25 dB
- Passive Intermodulation: -153 dBc with 2 x 43 dBm carriers
- Maximum Effective Power: 200W per Port
- Connector Configuration: 2 x 4.3-10 Female
- Connector Position: Rear
- Antenna Dimensions: Approximately 43.3 x 11.8 x 5.1 inches (1100 x 300 x 130 mm)
- Radome Material: Fiberglass-Reinforced Plastic (FRP)
- Radome Color: Gray
- Survival Wind Speed: 150 mph
- Quantity: 1 Antenna
Typical Applications
- Stadium and arena cellular coverage
- High-capacity venue distributed antenna systems (DAS)
- Targeted seating-section coverage
- Directional MIMO cellular installations
- Wireless infrastructure maintenance and antenna replacement
Please Note: This description applies to the 4.3-10 Female connector version. Gain and beamwidth vary by frequency. Verify frequency coverage, connector compatibility, and mounting requirements before ordering. Please review the product photographs and listing details for the condition of the offered unit and included hardware.
