Description

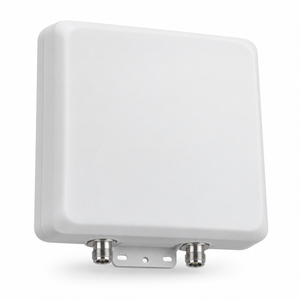

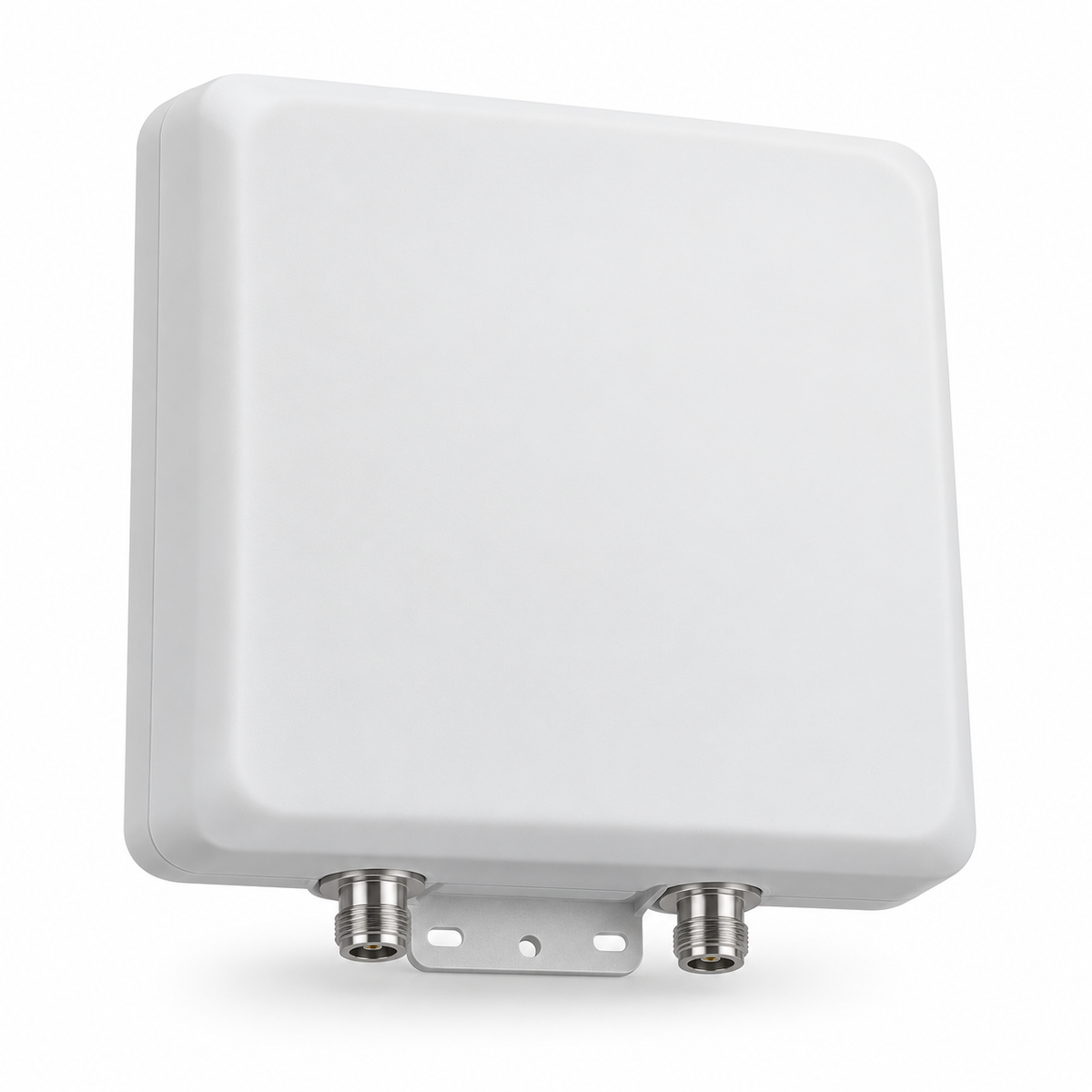

The Gamma Nu GN-IPAL7X-MIMO is a professional-grade Low PIM Dual-Polarized MIMO Patch Antenna designed for cellular, distributed antenna systems (DAS), and wireless network infrastructure. Operating across 698–960 MHz and 1710–2690 MHz frequency bands, this antenna supports 4G LTE, cellular broadband, and compatible wireless communication applications. Its compact outdoor-rated design, dual ±45° polarization, and low passive intermodulation performance make it suitable for wireless installations requiring reliable signal coverage.
The GN-IPAL7X-MIMO features two independent antenna ports with typical gain ranging from 5.2 to 5.4 dBi in the lower frequency bands and 7.8 to 9 dBi in the higher frequency bands. It provides approximately 110° beamwidth at lower frequencies and 60° at higher frequencies, with inter-port isolation greater than 20 dB and passive intermodulation performance better than -153 dBc. The manufacturer's standard configuration features two N-Female antenna connectors. The units offered in this listing have been fitted with custom jumper assemblies incorporating 4.3-10 RF connectors for integration with compatible wireless infrastructure and RF cabling systems.
Key Specifications
- Manufacturer: Gamma Nu
- Model Number: GN-IPAL7X-MIMO
- Product Type: Low PIM MIMO Patch Antenna
- Antenna Configuration: Dual-Port MIMO
- Low Frequency Band: 698–960 MHz
- High Frequency Band: 1710–2690 MHz (performance table extends to 2700 MHz)
- Polarization: Dual ±45°
- Typical Gain, Low Band: 5.2–5.4 dBi
- Typical Gain, High Band: 7.8–9 dBi
- Horizontal Beamwidth: Approximately 110° Low Band / 60° High Band
- Vertical Beamwidth: Approximately 110° Low Band / 60° High Band
- Front-to-Back Ratio: Greater than 15 dB
- Impedance: 50 Ohms
- VSWR: Less than 2:1
- Inter-Port Isolation: Greater than 20 dB
- Passive Intermodulation (PIM): Better than -153 dBc (2 x 43 dBm)
- Maximum Input Power: 50W
- Factory Connector Configuration: 2 x N-Female
- Connector Configuration of Offered Units: Custom Jumper Assemblies with 4.3-10 RF Connectors
- Antenna Dimensions: 180 x 180 x 55 mm (7.0 x 7.0 x 2.1 inches)
- Antenna Weight: Approximately 2.2 lb (1 kg)
- Mounting Type: Pole Mount
- Radome Material: ASA / ABS / Anti-UV PVC
- Radome Color Options: White / Gray
- Wind Load Rating: 60 m/sec
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Application: Indoor / Outdoor Wireless Infrastructure
- Condition: Used - Working Condition
- Quantity: 1 Antenna Assembly
Typical Applications
- 4G LTE cellular network installations
- Distributed Antenna Systems (DAS)
- Outdoor cellular coverage enhancement
- Small cell wireless infrastructure
- Commercial and industrial wireless networks
- Private LTE wireless network deployments
- Telecommunications infrastructure upgrades
- Dual-polarized MIMO wireless systems
- Indoor and outdoor cellular coverage applications
- Wireless network maintenance and antenna replacement
- RF installations utilizing compatible 4.3-10 connector interfaces
Please Note: The Gamma Nu GN-IPAL7X-MIMO is manufactured with two standard N-Female antenna ports. The units offered by DAS DEALS include custom-installed RF jumper assemblies with 4.3-10 connectors. This connector configuration differs from the manufacturer's standard datasheet. Please review the actual product photographs and verify jumper length, connector gender, and mating compatibility before ordering. Published electrical specifications apply to the manufacturer's antenna configuration; performance of the complete assembly with custom jumpers has not been independently verified. Installation requirements and compatibility may vary depending on the wireless system and site configuration.
Condition: These are used antennas in working condition that have been decommissioned and removed from a previous telecommunications installation. The antennas may show normal signs of prior installation, handling, and use. All units are sold AS-IS, in their existing condition.
