Description

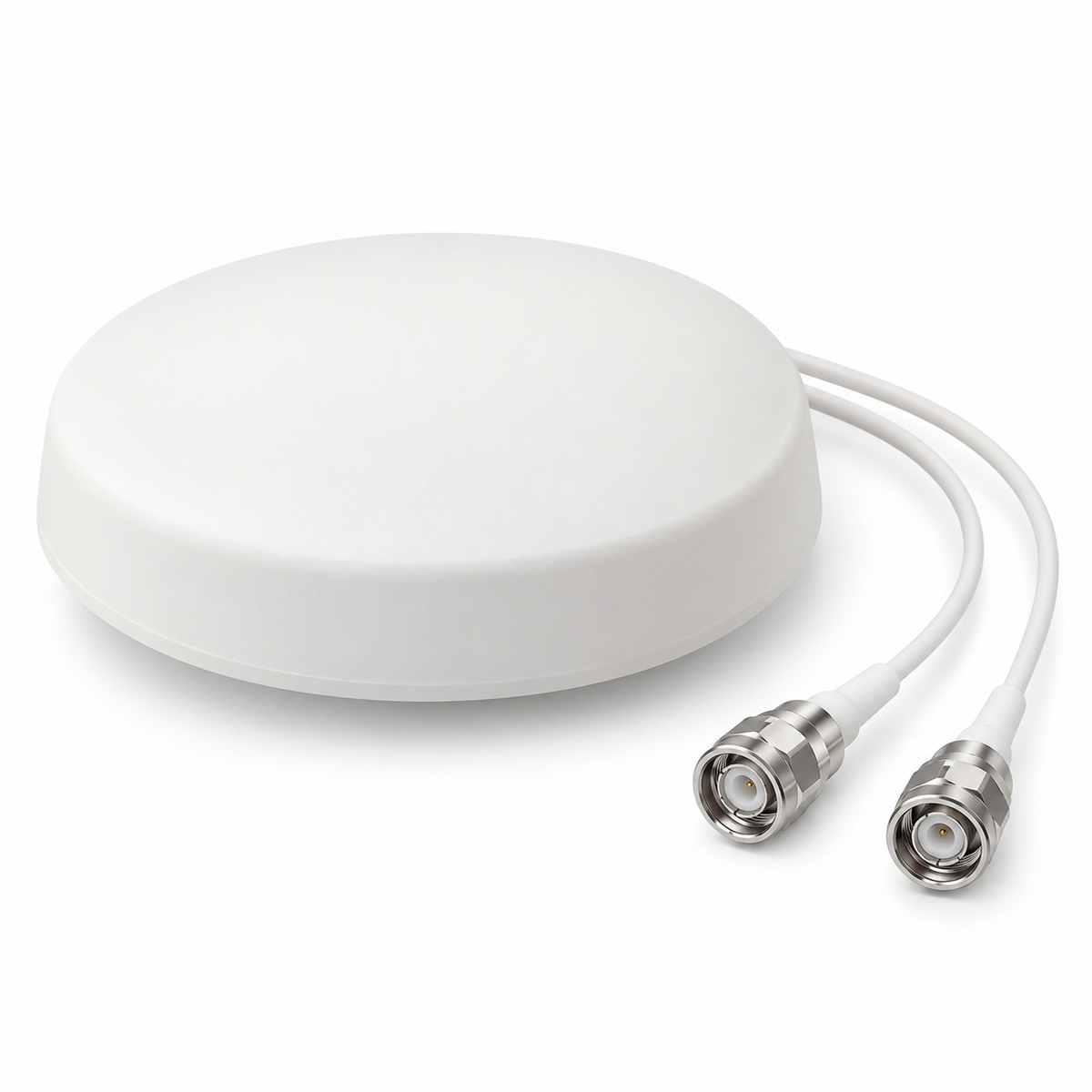

The Gamma Nu GN-IOAO2LHV-MIMO is a professional-grade Low PIM Dual-Port MIMO Omnidirectional Antenna designed for indoor cellular coverage, distributed antenna systems (DAS), and wireless network infrastructure. Operating across 698–960 MHz and 1695–2700 MHz frequency bands, this antenna provides 360° horizontal coverage for compatible cellular and wireless communication systems. Its compact, ceiling-mounted design and low passive intermodulation performance make it suitable for commercial buildings, telecommunications facilities, and indoor wireless installations.
The GN-IOAO2LHV-MIMO features dual linear horizontal/vertical polarization with two independent RF ports, supporting MIMO wireless communication applications. It delivers typical gain ranging from 2.8 to 4.3 dBi in the lower frequency band and 3.5 to 6.5 dBi in the higher frequency band. The antenna provides inter-port isolation of 19 to 20 dB and passive intermodulation performance better than -153 dBc. Equipped with two N-Female pigtail connectors and a durable white ASA radome, this antenna is designed for discreet indoor ceiling installations requiring reliable omnidirectional wireless coverage.
Key Specifications
- Manufacturer: Gamma Nu
- Model Number: GN-IOAO2LHV-MIMO
- Product Type: Low PIM MIMO Omnidirectional Antenna
- Antenna Configuration: Dual-Port MIMO
- Low Frequency Band: 698–960 MHz
- High Frequency Band: 1695–2700 MHz
- Typical Gain, Low Band: 2.8–4.3 dBi
- Typical Gain, High Band: 3.5–6.5 dBi
- Polarization: Linear H/V (Horizontal / Vertical)
- Horizontal Coverage: 360° Omnidirectional
- Impedance: 50 Ohms
- VSWR, Low Band: Less than 1.8:1
- VSWR, High Band: Less than 1.7:1
- Inter-Port Isolation, Low Band: 19 dB
- Inter-Port Isolation, High Band: 20 dB
- Passive Intermodulation (PIM): Better than -153 dBc (2 x 43 dBm)
- Maximum Input Power: 50W per Port
- Connector Configuration: 2 x N-Female Pigtail Connectors
- Connector Position: Bottom
- Antenna Dimensions: 200 mm Diameter x 42.5 mm Height (7.8 x 1.6 inches)
- Antenna Weight: Approximately 1.3 lb (0.6 kg), Excluding Clamp
- Mounting Type: Ceiling Mount
- Radome Material: ASA Plastic
- Radome Color: White
- Environmental Compliance: RoHS Compliant
- Application: Indoor Wireless Infrastructure
- Condition: Used
- Quantity: 1 Antenna
Typical Applications
- Indoor distributed antenna systems (DAS)
- 4G LTE cellular coverage installations
- Commercial building wireless infrastructure
- Indoor MIMO wireless communication systems
- Office buildings and corporate facilities
- Hotels, convention centers, and shopping malls
- Hospitals and healthcare facilities
- Universities and educational campuses
- Industrial and manufacturing facilities
- Indoor cellular signal distribution
- Private cellular network infrastructure
- Telecommunications equipment maintenance and antenna replacement
Please Note: The Gamma Nu GN-IOAO2LHV-MIMO is an indoor, ceiling-mounted omnidirectional antenna featuring two N-Female pigtail connectors. It supports two separate frequency bands, 698–960 MHz and 1695–2700 MHz, and is intended for use with compatible cellular and distributed antenna systems. Please verify frequency coverage, connector configuration, and equipment compatibility before ordering.
Condition: These are used antennas and may show normal signs of previous installation and handling. The antennas are offered in their existing condition.
