Description

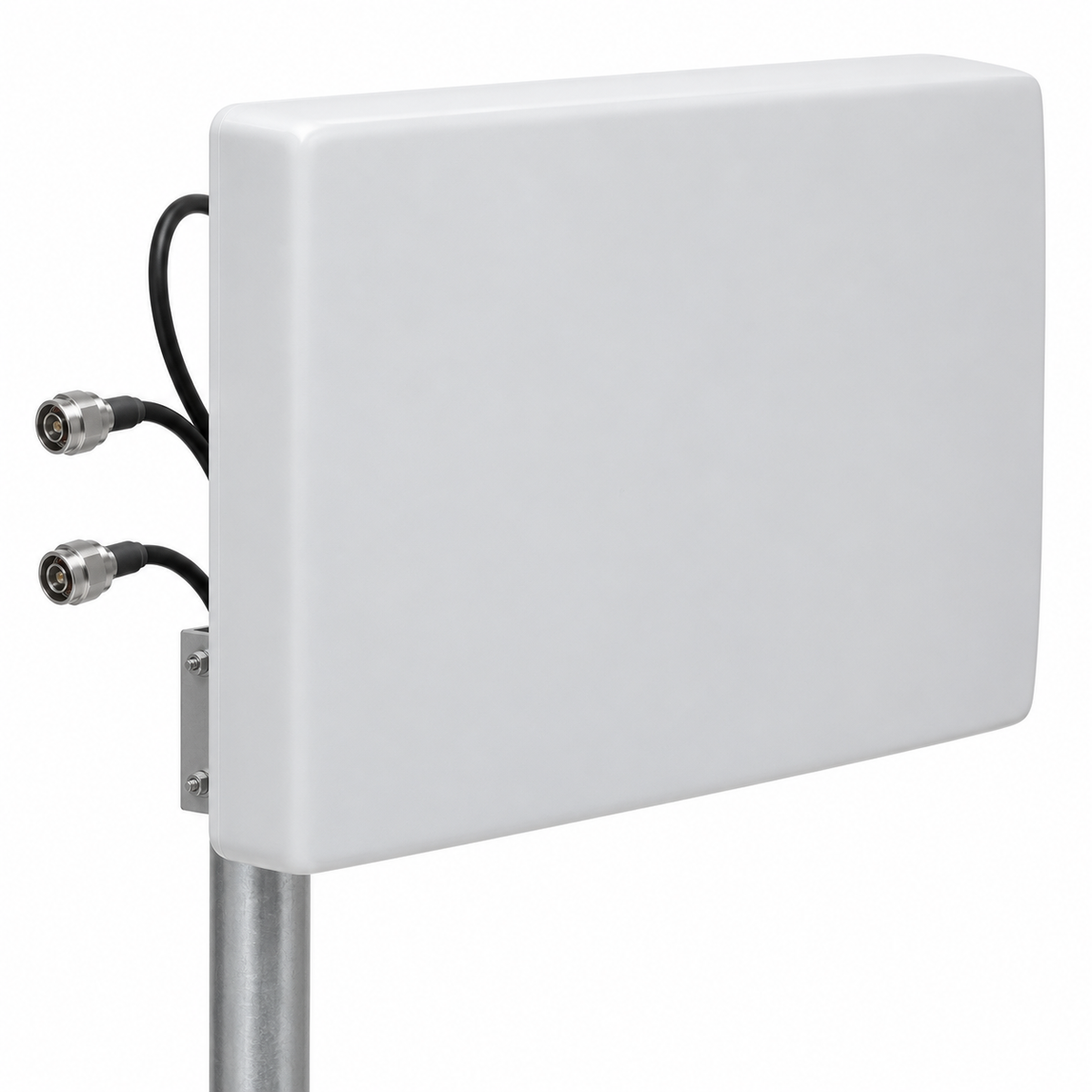

The Galtronics 04119261-05777-1 EXTENT D5777i is a professional-grade Low PIM Dual-Polarized MIMO Directional Panel Antenna designed for high-capacity cellular coverage, distributed antenna systems (DAS), and wireless telecommunications infrastructure. Operating across 698–960 MHz and 1710–2700 MHz frequency bands, this antenna delivers up to 15 dBi gain with approximately 30-degree horizontal and vertical beamwidth, providing focused directional RF coverage for demanding indoor and outdoor wireless installations.
The EXTENT D5777i features dual ±45° polarization with two independent RF ports, supporting MIMO wireless communication systems and high-capacity venue applications. Designed for locations such as stadiums, arenas, campuses, and commercial facilities, the antenna provides passive intermodulation performance better than -150 dBc, 50 Ohm impedance, and maximum input power handling of 250W per port. Its UV-resistant outdoor design features a white radome, IP65 environmental protection, and support for adjustable wall or pole mounting configurations using compatible mounting hardware.
Key Specifications
- Manufacturer: Galtronics
- Part Number: 04119261-05777-1
- Product Family: EXTENT D5777i
- Product Type: Low PIM Directional MIMO Panel Antenna
- Antenna Configuration: Dual-Port MIMO
- Low Frequency Band: 698–960 MHz
- High Frequency Band: 1710–2700 MHz
- Gain, Low Band: 13.0–14.0 dBi
- Gain, High Band: 13.0–15.0 dBi
- Maximum Gain: 15 dBi
- Polarization: Dual ±45°
- Horizontal Beamwidth: Approximately 27°–30°, Frequency Dependent
- Vertical Beamwidth: Approximately 27°–30°, Frequency Dependent
- Front-to-Back Ratio: Greater than 25 dB
- Impedance: 50 Ohms
- VSWR: Less than 1.7:1
- Passive Intermodulation (PIM): Better than -150 dBc (2 x 43 dBm)
- Maximum Input Power: 250W per Port
- Manufacturer Connector Options: 2 x 4.3-10 Female, 2 x 7/16 DIN Female, or 2 x 4.1/9.5 Mini DIN Female
- Connector Position: Rear / Back Mount
- Antenna Length: 30.9 inches (787 mm)
- Antenna Width: 24.7 inches (627 mm)
- Antenna Depth: 5.7 inches (145 mm)
- Antenna Weight: Approximately 22.04 lb (10 kg)
- Mounting Configuration: Wall / Pole Mount with Compatible Bracket
- Radome Color: White
- Ingress Protection Rating: IP65
- Wind Survival Rating: 125 mph
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Environmental Compliance: RoHS Compliant
- Application: Indoor / Outdoor Wireless Infrastructure
- Condition: Used
- Quantity: 1 Antenna
Typical Applications
- Distributed Antenna Systems (DAS)
- 4G LTE cellular network infrastructure
- High-capacity venue wireless coverage
- Stadiums, arenas, and sports facilities
- Convention centers and entertainment venues
- University campuses and educational facilities
- Commercial buildings and corporate campuses
- Airports and transportation facilities
- Indoor and outdoor cellular coverage enhancement
- Directional MIMO wireless communication systems
- Private LTE network infrastructure
- Telecommunications infrastructure upgrades
- Replacement and maintenance of existing Galtronics antenna installations
Please Note: The Galtronics EXTENT D5777i is a dual-port directional MIMO panel antenna designed for 698–960 MHz and 1710–2700 MHz applications. The manufacturer offers this model with multiple RF connector configurations, including 4.3-10 Female, 7/16 DIN Female, and 4.1/9.5 Mini DIN Female. The connector type on these particular units has not yet been confirmed. Please verify the required connector interface, frequency coverage, mounting requirements, and equipment compatibility before ordering. Mounting hardware is included only if specifically identified in the listing.
Condition: These are used antennas previously installed in telecommunications infrastructure. They may show normal signs of prior installation, handling, and use. All units are sold AS-IS, in their existing condition.
