Description

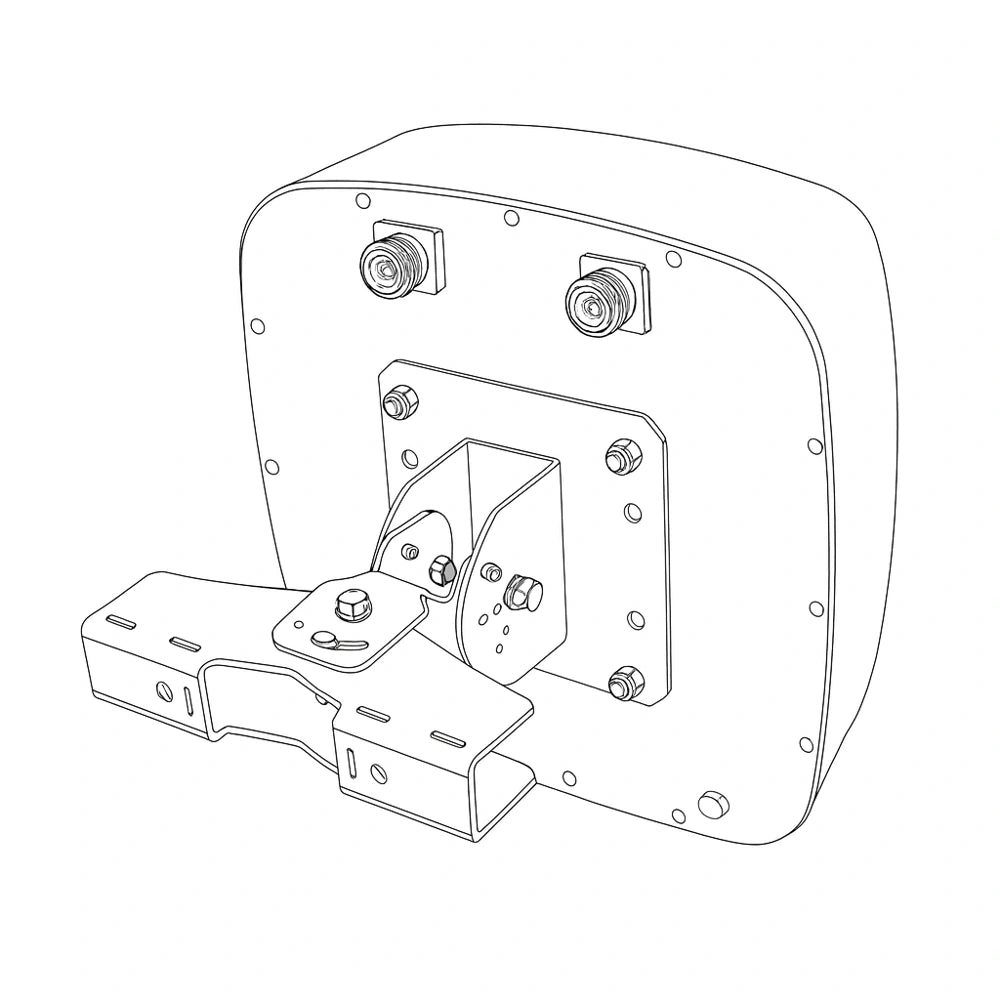

The Galtronics 62-45-09 is an OEM stainless steel mounting bracket designed for installing Galtronics directional antennas on a wall or pole. This 1 or 2 axis adjustable mount is used for DAS, wireless infrastructure, telecom, and antenna deployment applications where precise antenna alignment is required.
According to the Galtronics datasheet, the 62-45-09 is designed for Galtronics EXTENT directional antennas and supports both side pole mount and wall mount installation. It supports pole diameters from 2 inches to 4.5 inches and provides horizontal and vertical adjustment for antenna positioning.
This item is new / unused OEM surplus. The box may show storage wear from warehouse inventory. Includes the Galtronics 62-45-09 mounting bracket kit only as shown; antennas, cables, wall mounting hardware, documentation, and additional accessories are not included unless shown.
Key Specifications
- Manufacturer: Galtronics
- Model / MPN: 62-45-09
- Product Type: 1 or 2 Axis Antenna Mounting Bracket
- Compatible Use: Galtronics EXTENT directional antennas
- Mounting Style: Side pole mount / wall mount
- Pole Diameter Range: 2 in to 4.5 in / 50.8 mm to 114.3 mm
- Material: Stainless steel
- Environmental Use: Outdoor
- Adjustment: 1 or 2 axis mounting with horizontal and vertical tilt adjustment
- Torque Specification: 177 lb-in / 20 Nm for 3/8 in nut tightening, bracket to pole
- Dimensions: 8 in L × 6.3 in H × 8.9 in W
- Weight: 5.07 lb / 2.37 kg
- Condition: New / Unused OEM Surplus
- Includes: Mounting bracket kit only as shown
Common Applications
- DAS and in-building wireless antenna installations
- Galtronics EXTENT directional antenna mounting
- Wall-mounted or pole-mounted telecom deployments
- 5G, LTE, private wireless, and enterprise wireless infrastructure
- Wireless site upgrades, replacements, and contractor installation projects
