Description

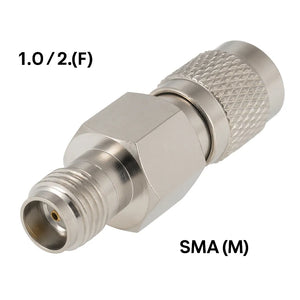

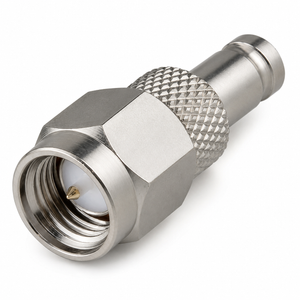

The DAS DEALS AX36160 Low PIM Adapter features a 1.0/2.3 female to SMA male interface, engineered for low Passive Intermodulation (PIM) performance in high-frequency RF applications. Ideal for DAS, 5G, LTE, test equipment, and dense rack deployments, this adapter delivers reliable signal transmission in compact spaces where precision and performance matter.
Constructed from high-grade plated brass and stainless steel, the adapter offers rugged durability and excellent electrical characteristics. The push-pull 1.0/2.3 DIN-style female connector ensures quick installation and secure mating, while the SMA male side provides wide compatibility with RF test gear and wireless infrastructure. Each unit is PIM-tested and quality-verified.
Technical Details
-
Part Number: AX36160 (DAS DEALS SKU)
-
Connector A: 1.0/2.3 Female (DIN-style push-pull)
-
Connector B: SMA Male
-
Impedance: 50 Ohm
-
Frequency Range: DC to 6 GHz (typical)
-
PIM Rating: Low PIM (< -155 dBc typical)
-
Construction: Nickel-plated brass body, stainless steel coupling, gold-plated contact
-
Application: DAS, LTE, 5G, RF labs, test benches, and coaxial infrastructure
