Description
Product Description

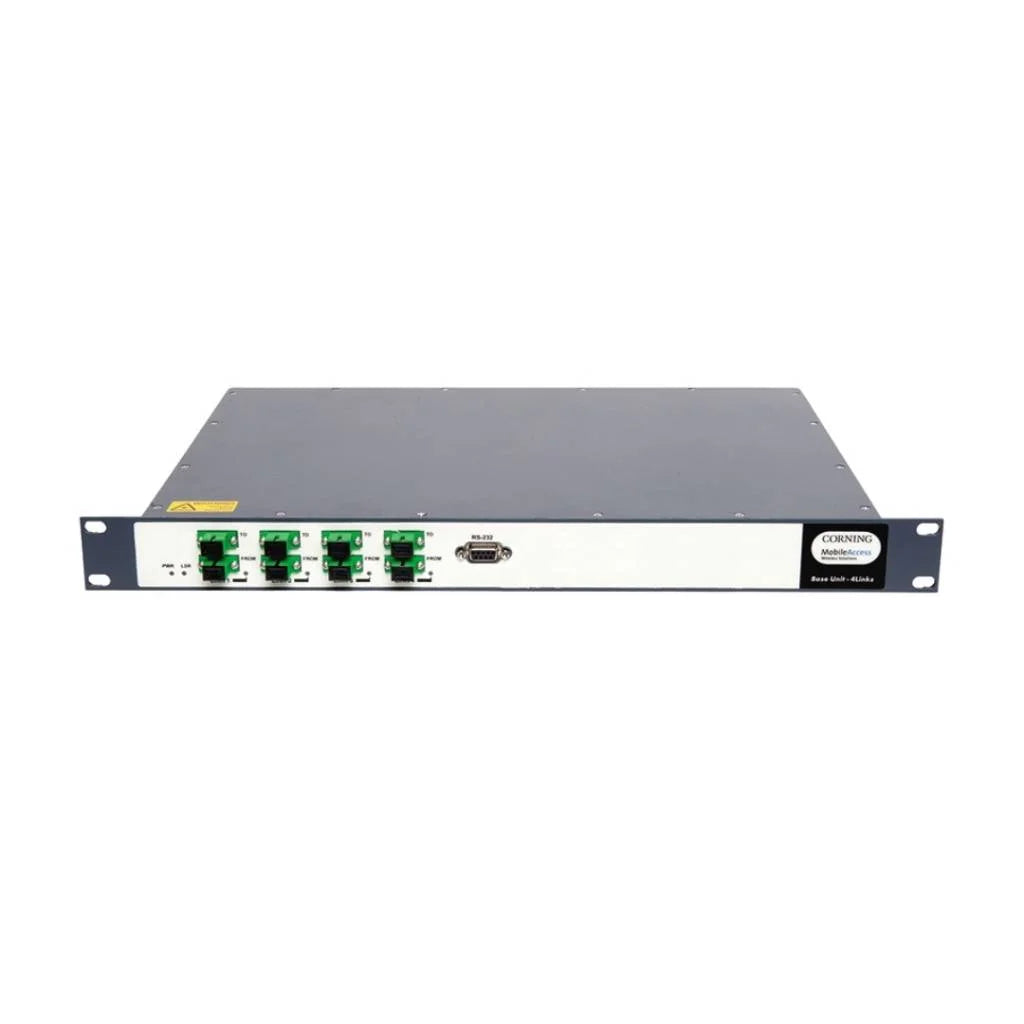

The Corning WB-B4U MobileAccess Wideband Base Unit is a headend RF to optical conversion platform designed for Corning MobileAccess distributed antenna system (DAS) deployments. Installed between the Radio Interface Unit (RIU) or passive BTS interface and the remote-end equipment, the WB-B4U converts RF signals into optical signals for transport over fiber optic infrastructure.
This 4 port base unit supports up to four optical connections to remote modules and is used in enterprise, commercial, healthcare, transportation, campus, and public venue wireless coverage systems. It supports centralized monitoring and management through the Corning MobileAccess management system, dry contact alarm support, and local optical link status indicators.
This listing is for the Corning WB-B4U MobileAccess Wideband 4 Port Base Unit only.
Key Specifications
- Manufacturer: Corning
- Part Number: WB-B4U
- Product Name: MobileAccess Wideband 4 Port Base Unit
- Product Type: RF to Optical DAS Base Unit
- Supported Remote Units: Up to 4 optical connections
- Application: Distributed Antenna System (DAS)
- Signal Conversion: RF to Optical
- Optical Ports: 4 SC/APC ports to remote-end modules
- RF Port: N-Type Female, 50 Ohm, to RIU or passive BTS
- Optical Wavelength: 1310 ±10 nm
- Maximum Fiber Distance: 2 km over single-mode fiber
- Input Power: 20 to 48 VDC
- Power Consumption: 14 W typical
- Alarm Support: Dry contact alarms
- Management Features: Centralized monitoring and management support
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +85°C
- Dimensions: 19 x 1.75 x 11.8 in
- Weight: 6.2 lb
- Safety Standards: UL 60950, EN 60950, CAN/CSA-C22.2 No. 60950, UL 2043
- FCC Compliance: FCC 47 CFR Part 2, 15, 22, 24, 27, 90
- Quality Certification: ISO 9001 Certified
