Description
Product Description

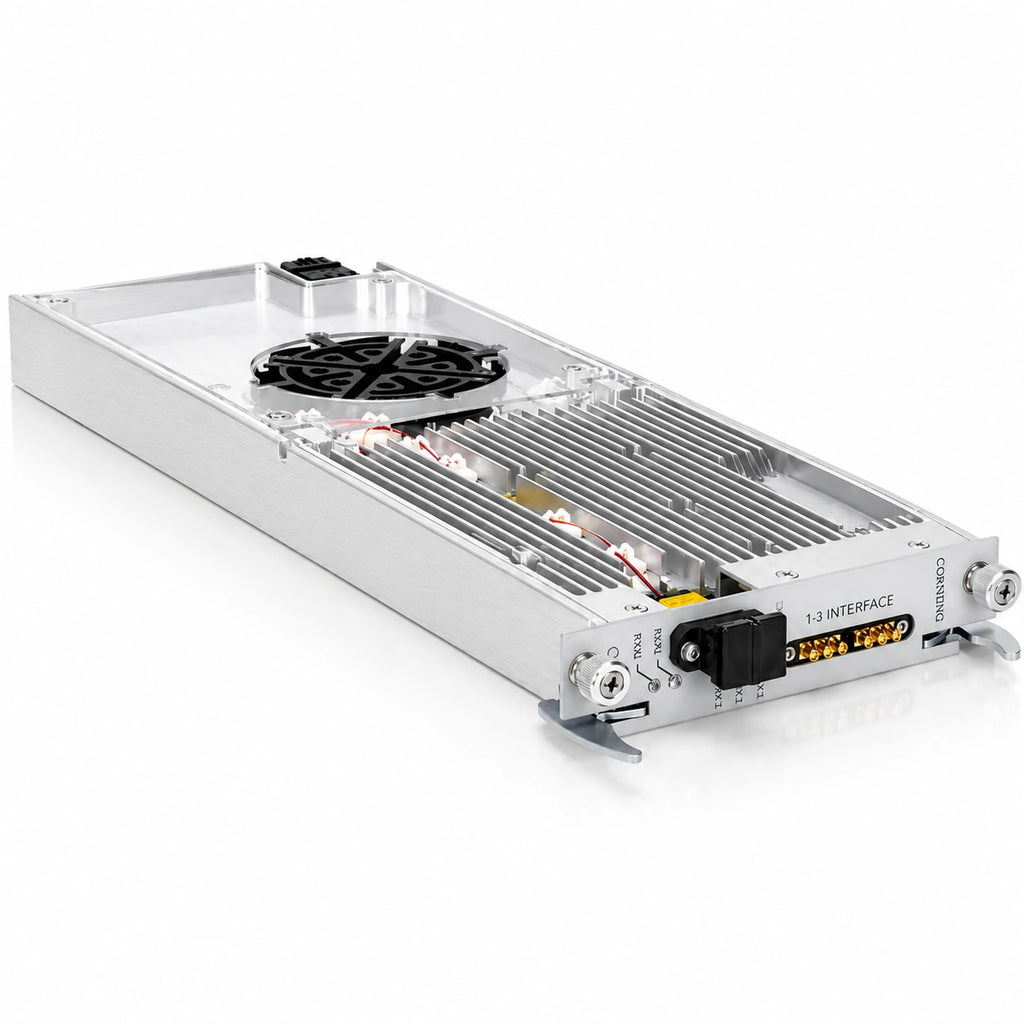

The Corning OIM-LC Optical Interface Module is designed for use in the Corning ONE Wireless Platform Optical Interface Unit (OIU). Installed in the OIU chassis, the module converts RF services into optical links for transport across the DAS fiber infrastructure.
The OIM supports three optical links and is used as part of the Corning ONE fiber-based RF distribution architecture for enterprise, healthcare, transportation, stadium, campus, and commercial wireless coverage systems. It supports multi-service DAS deployments including LTE 700, Cellular 850, PCS 1900, AWS 1700/2100, CDMA, WCDMA, GSM, and TDMA services when used with the appropriate Corning ONE platform components.
This listing is for the Corning OIM-LC Optical Interface Module only.
Key Specifications
- Manufacturer: Corning
- Part Number: OIM-LC
- Product Name: Optical Interface Module
- Platform: Corning ONE Wireless Platform
- Compatible Chassis: Optical Interface Unit (OIU)
- Product Type: Optical Interface Module
- Application: Distributed Antenna System (DAS)
- Function: RF to optical transport
- Optical Links Supported: 3
- Optical Interface: One MTP connector
- RF Interfaces: Two 9-pin connectors
- Supported Services: LTE 700, Cellular 850, PCS 1900, AWS 1700/2100
- Supported Technologies: LTE, CDMA, WCDMA, GSM, TDMA
- Maximum Fiber Distance: 2 km over single-mode fiber
- Optical Wavelength: 1310 ±10 nm
- Maximum Optical Budget: 5 dB
- Fiber Type: Single-mode fiber, Corning SMF-28 or compatible
- Power Source: Powered by the OIU chassis
- Operating Temperature: 0°C to +50°C
- Storage Temperature: -20°C to +85°C
- Weight: 1.5 lb
- Deployment Type: Indoor DAS infrastructure
- Compliance: UL 60950, IEC 60825-1, IEC 60825-2, CAN/CSA-C22.2 No. 60950-1-03, FCC 47 CFR Part 15
- Quality Certification: ISO 9001 Certified
