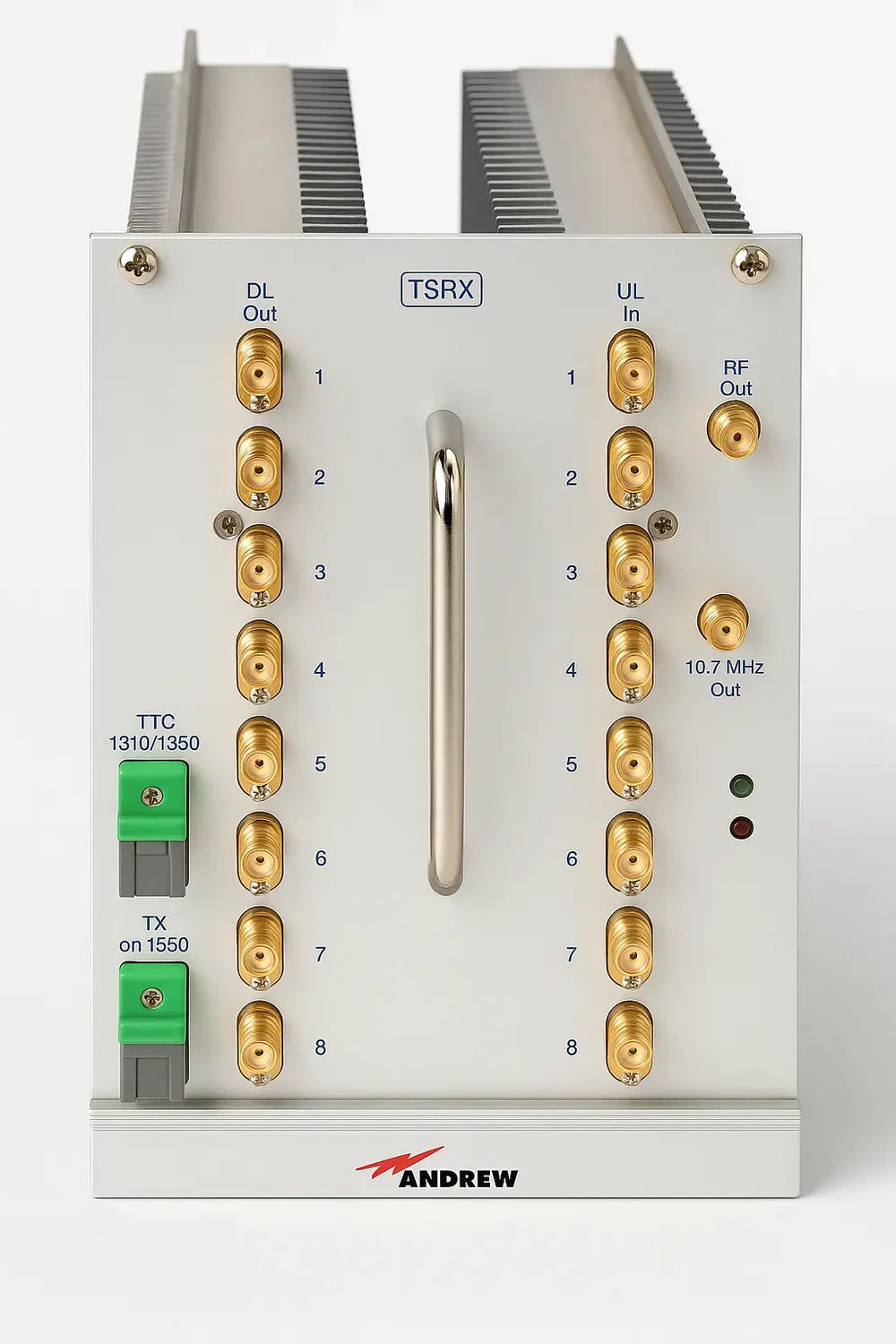

Commscope TSRX-344/8 ION-B Interconnect Link Receiver Module

Product Description

The Commscope TSRX-344/8 is a receiver module component for the ION-B Series Interconnect Link platform. It is listed by Commscope as an included receiver module for the TIL-US1-HLW ION-B Series Interconnect Link, a WDM version used for Cellular 700, LMR 700, LMR 800, Cellular 850, LMR 900, AWS, and PCS 1900 Extended DAS applications.

According to the Commscope datasheet, the TIL-US1-HLW Interconnect Link supports uplink frequency bands including 1710 MHz to 1755 MHz for AWS 1700, 1850 MHz to 1915 MHz for PCS 1900 Extended, 698 MHz to 716 MHz and 776 MHz to 787 MHz for Cellular 700, 788 MHz to 806 MHz for LMR 700, 806 MHz to 824 MHz for LMR 800, 824 MHz to 849 MHz for Cellular 850, and 896 MHz to 901 MHz for LMR 900.

The datasheet also lists downlink frequency bands including 1930 MHz to 1995 MHz for PCS 1900 Extended, 2110 MHz to 2155 MHz for AWS 1700, 728 MHz to 757 MHz for Cellular 700, 758 MHz to 776 MHz for LMR 700, 851 MHz to 869 MHz for LMR 800, 869 MHz to 894 MHz for Cellular 850, and 935 MHz to 940 MHz for LMR 900.

Please confirm compatibility with your existing Commscope ION-B Interconnect Link system, chassis configuration, and DAS deployment requirements before purchase.

This listing is for the Commscope TSRX-344/8 Receiver Module only.

Key Specifications

• Manufacturer: Commscope
• Part Number: TSRX-344/8
• Product Type: Receiver Module
• Platform: ION-B Series Interconnect Link
• Related System: TIL-US1-HLW
• System Type: WDM ION-B Interconnect Link DAS transport platform
• Application: Distributed Antenna System infrastructure
• Supported Bands: Cellular 700, LMR 700, LMR 800, Cellular 850, LMR 900, AWS, PCS 1900 Extended
• Uplink Frequencies: 698-716 MHz, 776-787 MHz, 788-806 MHz, 806-824 MHz, 824-849 MHz, 896-901 MHz, 1710-1755 MHz, 1850-1915 MHz
• Downlink Frequencies: 728-757 MHz, 758-776 MHz, 851-869 MHz, 869-894 MHz, 935-940 MHz, 1930-1995 MHz, 2110-2155 MHz
• Included Product Note: Listed by Commscope as a product component for the ION-B Series Interconnect Link
• Quality Management: Designed, manufactured and/or distributed under ISO 9001:2008 quality management system
