Description
Product Description

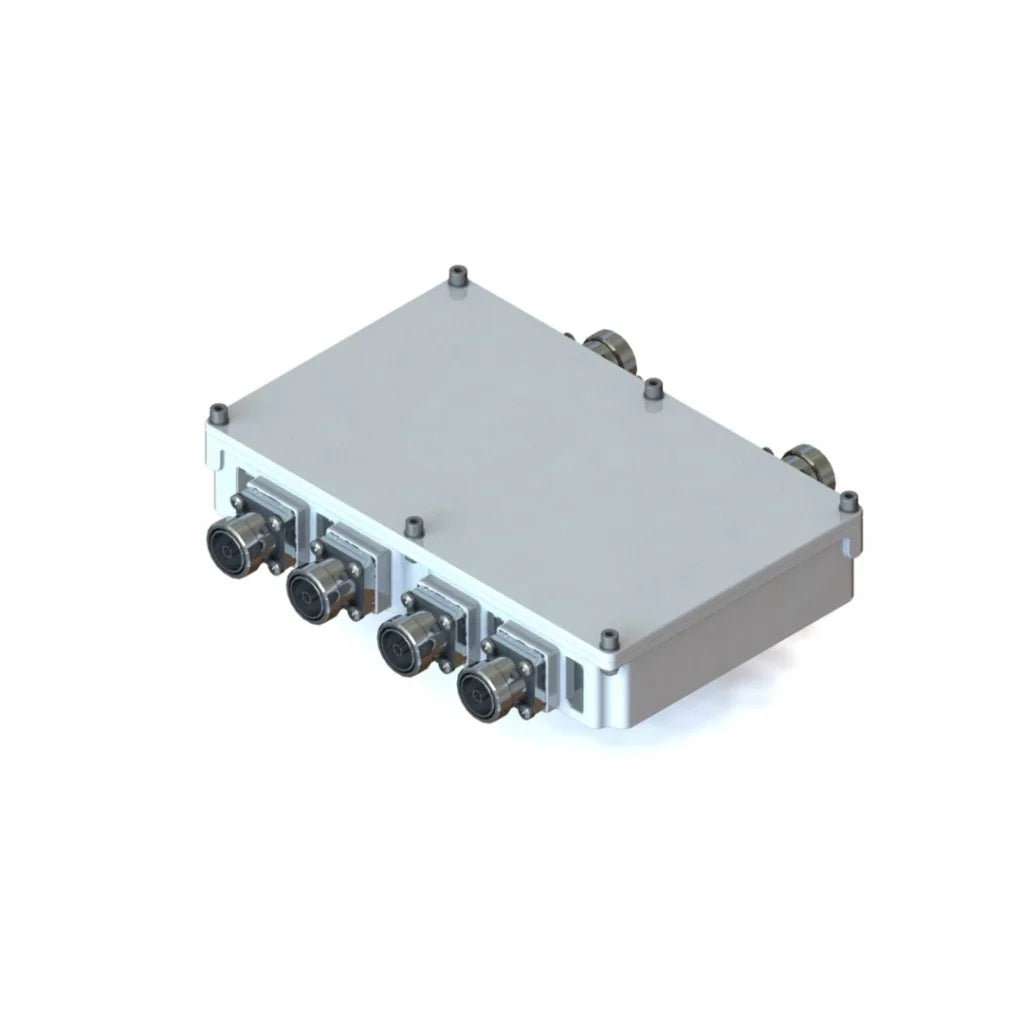

The Commscope TMAT23B78-21A, also identified as E15R07P02, is a twin tower mounted amplifier designed for carrier-grade wireless network deployments. This outdoor tower mounted amplifier supports WCS 2300 MHz uplink amplification while providing 700-850 MHz bypass capability for compatible cellular, LMR, and public safety frequency bands.
Engineered for macro cell, rooftop, and wireless infrastructure applications, the TMAT23B78-21A provides low noise amplification for WCS 2300 uplink performance while allowing pass-through operation for Cellular 850, LMR 750, LMR 800, USA 700, and USA 750 bands. The unit includes AISG 1.1 and AISG 2.0 support for remote control and monitoring in compatible network deployments.
The amplifier features rugged outdoor construction, 7-16 DIN Female RF connectors, 8-pin DIN Female AISG connectivity, lightning surge protection, low PIM performance, and an IP67 ingress protection rating for demanding tower and rooftop environments.
This product has been discontinued by the manufacturer. This listing is for the Commscope TMAT23B78-21A Twin Tower Mounted Amplifier only.
Key Specifications
- Manufacturer: Commscope / Andrew
- Part Number: TMAT23B78-21A
- Alternate Product ID: E15R07P02
- Product Type: Twin Tower Mounted Amplifier
- Application: Outdoor Wireless Infrastructure
- Amplified License Band: WCS 2300
- Band Pass License Bands: Cellular 850, LMR 750, LMR 800, USA 700, USA 750
- Band Pass Frequency Range: 698-894 MHz
- Uplink Frequency Range: 2305-2315 MHz
- Downlink Frequency Range: 2350-2360 MHz
- Gain: 13 dB nominal
- Gain Tolerance: 1 dB
- Noise Figure: 1.7 dB typical
- Composite Power, RMS: 200 W
- Input Power, PEP Maximum: 3000 W
- 3rd Order PIM: -153 dBc typical
- RF Connector Interface: 7-16 DIN Female
- RF Connector Body Style: Long Neck
- AISG Protocol: AISG 1.1 and AISG 2.0
- AISG Connector: 8-pin DIN Female
- Operating Voltage: 10-18 Vdc
- AISG Mode Voltage: 10-30 Vdc
- Operating Current: 210 mA at 12 Vdc
- Lightning Surge Current: 10 kA
- Operating Temperature: -40°C to +65°C
- Relative Humidity: Up to 100%
- Ingress Protection: IP67
- Product Dimensions: 11 x 7 x 2 in
- Net Weight: 9.26 lb
- Manufacturer Status: Obsolete / Discontinued March 30, 2024
