Description

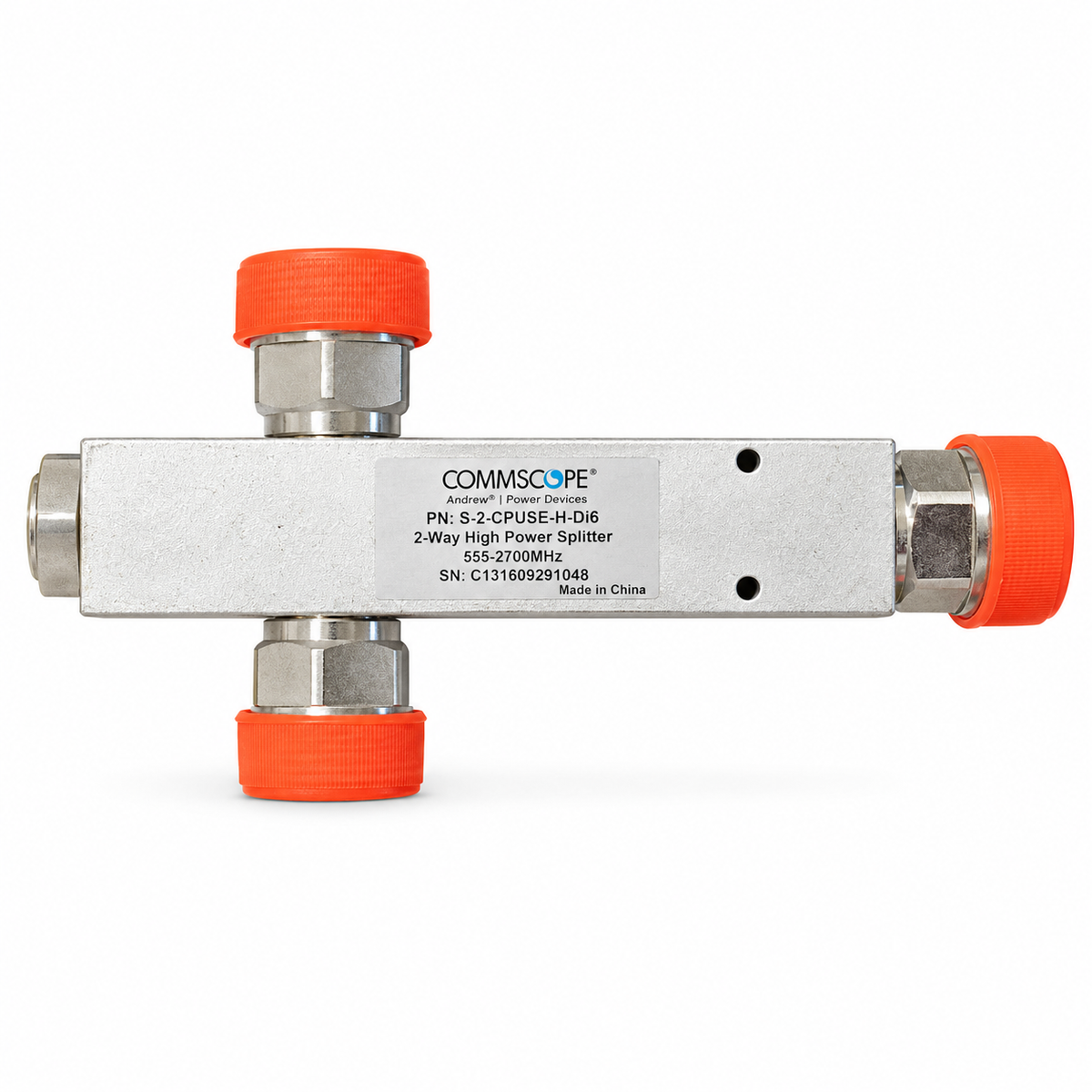

The Commscope S-2-CPUSE-H-Di6 is an OEM 2-Way High Power Reactive RF Splitter designed for distributed antenna systems (DAS), cellular networks, and wireless telecommunications infrastructure. Operating across 555–2700 MHz, this 50 Ohm splitter distributes RF power between two output ports with a nominal 3 dB split loss and just 0.2 dB additional insertion loss. Its low passive intermodulation performance and high power handling make it suitable for demanding indoor and outdoor wireless installations.
The S-2-CPUSE-H-Di6 features a reactive splitter design with three 7/16 DIN Female RF connectors, providing one input and two output connections for distributing RF signals to multiple antennas or network branches. Designed for professional telecommunications applications, the splitter supports up to 300W average power and 3 kW peak power, with third-order passive intermodulation performance of -160 dBc. Its compact metal construction, low VSWR, and IP65 environmental protection make it suitable for multiband cellular and DAS infrastructure requiring reliable RF power distribution.
Key Specifications
- Manufacturer: Commscope
- Brand: Andrew
- Part Number: S-2-CPUSE-H-Di6
- Product Type: 2-Way Reactive RF Power Splitter
- Application: Cellular and DAS RF Power Distribution
- Operating Frequency: 555–2700 MHz
- Number of Ways: 2
- RF Ports: 1 Input / 2 Outputs
- RF Connector Type: 7/16 DIN Female
- Impedance: 50 Ohms
- Nominal Split Loss: 3.0 dB
- Additional Insertion Loss: 0.2 dB
- VSWR: 1.2:1
- Minimum Return Loss: 20.8 dB
- Passive Intermodulation (IM3): -160 dBc (2 x 43 dBm)
- Maximum Average Power: 300W
- Maximum Peak Power: 3 kW
- Maximum Reflected Power: 300W
- Connector Inner Contact Plating: Silver
- Connector Outer Contact Plating: Trimetal
- Product Dimensions: 6.14 x 2.87 x 0.98 inches (L x W x H)
- Metric Dimensions: 156 x 73 x 25 mm
- Net Weight: Approximately 0.84 lb (382 g)
- Color: Silver
- Ingress Protection Rating: IP65
- Operating Temperature: -35°C to +85°C (-31°F to +185°F)
- Relative Humidity: Up to 100%
- Environmental Application: Indoor / Outdoor
- Quantity: 1 RF Power Splitter
Typical Applications
- Distributed Antenna Systems (DAS)
- 4G LTE cellular network installations
- Indoor and outdoor cellular coverage systems
- RF signal distribution to multiple antennas
- Cellular base station infrastructure
- Public safety and commercial wireless systems operating within the supported frequency range
- Commercial buildings and enterprise wireless networks
- Hotels, hospitals, and educational facilities
- Stadiums, arenas, and convention centers
- Transportation facilities and wireless infrastructure
- Telecommunications RF distribution networks
- Wireless system expansion and maintenance
- Replacement of existing RF power splitters
Please Note: The Commscope S-2-CPUSE-H-Di6 is a 2-way reactive RF power splitter with 7/16 DIN Female connectors, designed for 555–2700 MHz operation. This is a passive RF distribution component and does not amplify signals or require external electrical power. The manufacturer's additional mounting bracket, P/N 42396A-17, is sold separately. Please verify frequency coverage, connector compatibility, mounting requirements, and RF power specifications before ordering.
Condition: This is a used RF power splitter and may show normal signs of previous installation, handling, and use. The unit is offered in its existing condition.
