Description
Product Description

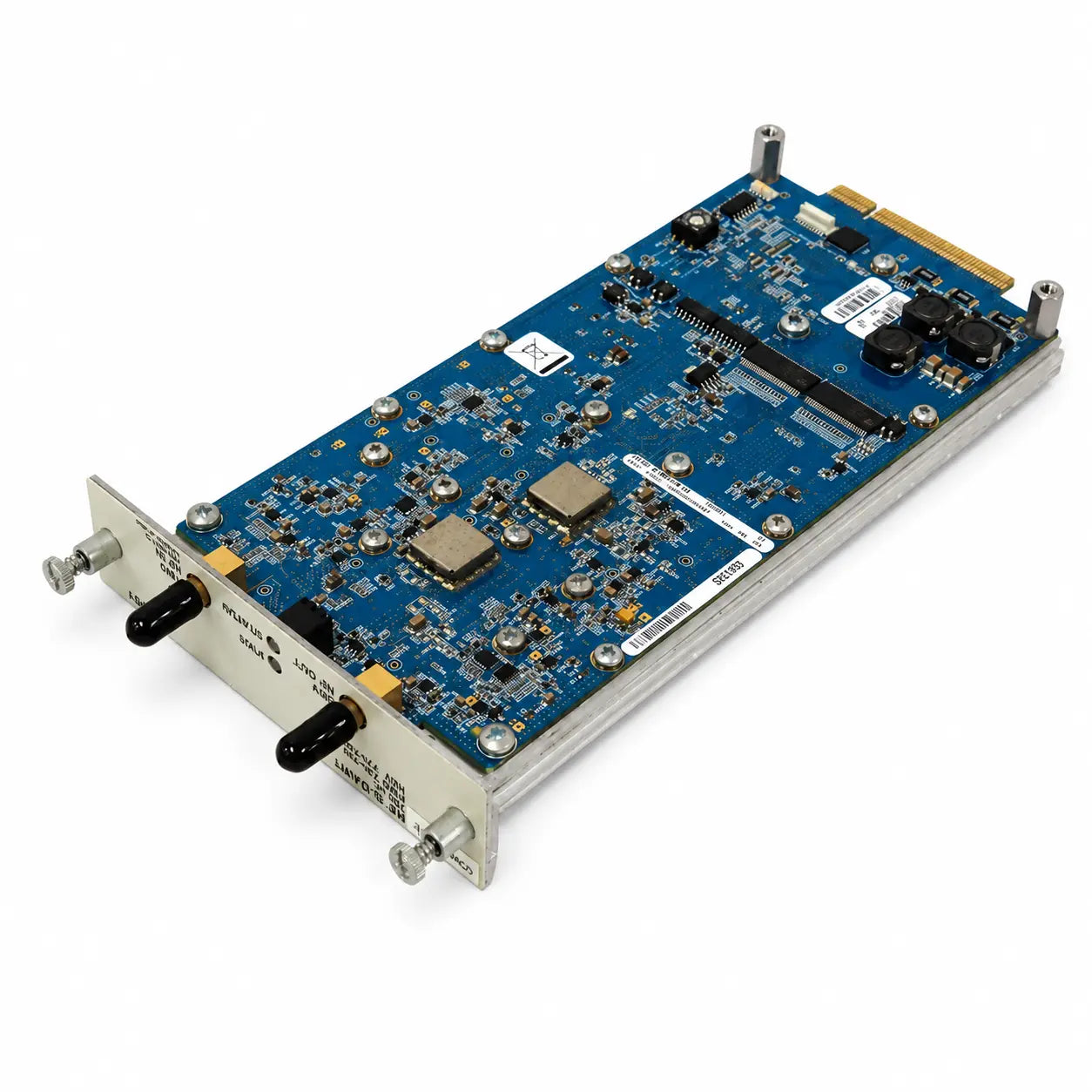

The Commscope FWU-U6000HUDART is a Single RF SuperDART module for FlexWave Spectrum and FlexWave Prism distributed antenna system platforms. This module is listed by Commscope as the FlexWave Spectrum-Prism 700 LTE Upper C Single RF SuperDART and is designed for use in compatible FlexWave Spectrum-Prism Host Unit configurations.
According to the Commscope FlexWave Spectrum system documentation, the FlexWave Spectrum Host Unit receives RF signals from the BTS, digitizes the designated RF bands, and transports them over single mode fiber to the expansion units. The Host Unit uses hot-swappable Digital/Analog Radio Transceiver DART cards to support field upgrades and additional frequency bands.
The FWU-U6000HUDART supports the 700 LTE Upper C band. The Commscope documentation lists 700 Upper C frequency ranges of 746 MHz to 757 MHz for TX and 776 MHz to 787 MHz for RX. Please confirm compatibility with your existing FlexWave Spectrum or FlexWave Prism Host Unit, DART configuration, and DAS system requirements before purchase.
This listing is for the Commscope FWU-U6000HUDART 700 LTE Upper C Single RF SuperDART module only.
Key Specifications
- Manufacturer: Commscope
- Part Number: FWU-U6000HUDART
- Product Type: Single RF SuperDART Module
- Series: FlexWave Spectrum / FlexWave Prism
- Application: Distributed Antenna System infrastructure
- Frequency Band: 700 LTE Upper C
- Wireless Technology: LTE
- TX Frequency Range: 746 MHz to 757 MHz
- RX Frequency Range: 776 MHz to 787 MHz
- Module Location: FlexWave Spectrum-Prism Host Unit
- Architecture: Single RF SuperDART
- Transport Method: Digital RF over single mode fiber through compatible Host Unit infrastructure
- Host Unit Function: Digitizes designated RF bands and transports them over fiber to expansion units
- Hot Swappable: Yes, DART cards are described as hot swappable in the system documentation
- Field Upgradeable: Yes, used to add supported frequency band capability in compatible systems
- Fiber Interface: Host Unit supports SFP transceivers using duplex LC single mode fiber connections
- Network Type: In-building wireless DAS coverage
- Deployment Environment: Enterprise, campus, stadium, airport, public venue, and large building DAS systems
