Description

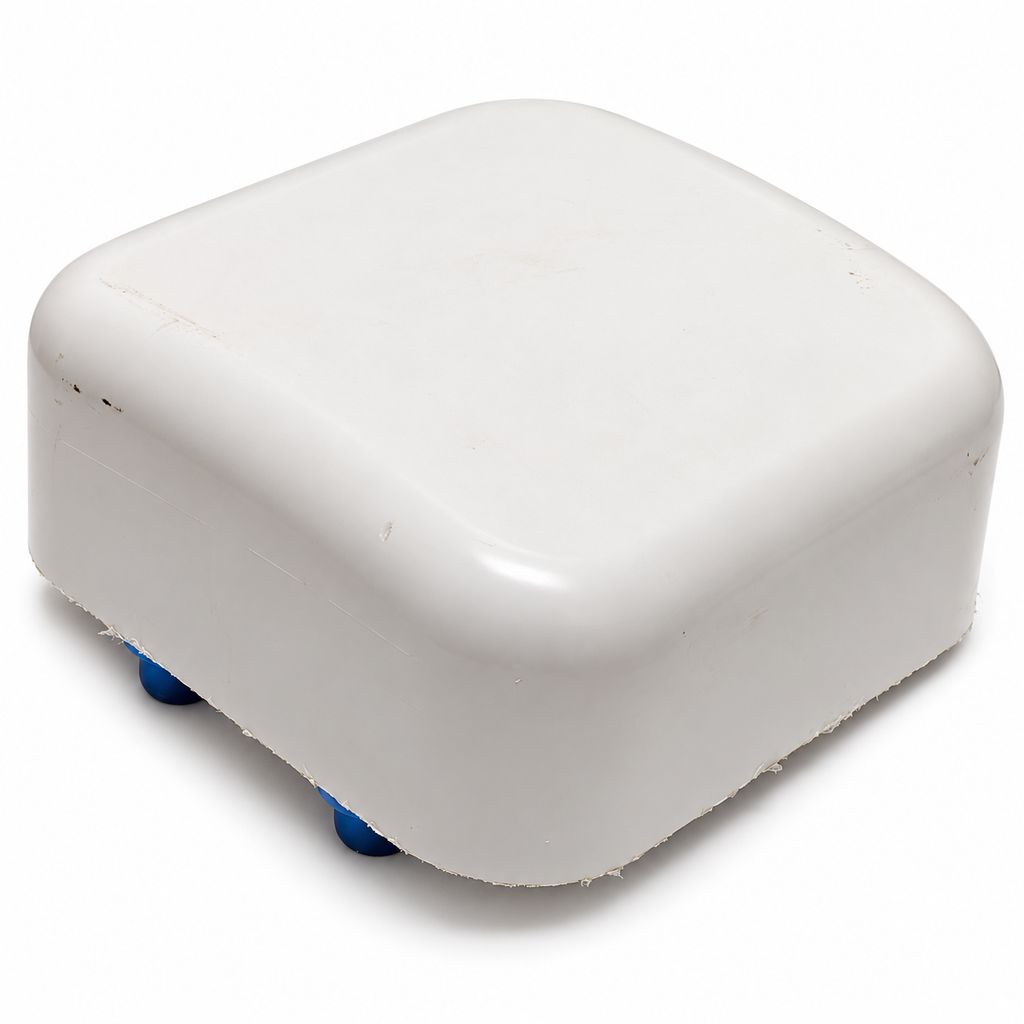

The Commscope CMAX-DM60-CPUSEi is a Cell-Max directional MIMO antenna designed for high-capacity wireless coverage in indoor and outdoor venues. It operates across 698-960 MHz and 1710-2700 MHz, providing 8 dBi gain and dual slant ±45° polarization for compatible cellular and distributed antenna system (DAS) installations.
Two 7/16 DIN female RF ports provide separate connections for the two polarizations. A nominal 60° horizontal beamwidth directs coverage toward the intended area, while the white, UV-resistant ABS radome and IP65 protection rating support indoor and outdoor deployment. The antenna supports up to 100 W input power per port and third-order passive intermodulation of -150 dBc with two 20 W carriers.
Key Specifications
- Manufacturer: Commscope
- Product Line: Cell-Max
- Part Number: CMAX-DM60-CPUSEi
- Product Type: Two-port directional MIMO venue antenna
- Frequency Ranges: 698-960 MHz and 1710-2700 MHz
- Gain: 8.0 dBi across the specified frequency bands
- Horizontal Beamwidth: 60° at 698-960 MHz and 2200-2700 MHz; 58° at 1710-2200 MHz
- Vertical Beamwidth: 60°
- Polarization: Dual slant ±45°
- Number of RF Ports: 2
- RF Connector: 7/16 DIN female
- Impedance: 50 ohms
- Maximum Input Power: 100 W per port
- VSWR: 1.9:1 at 698-960 MHz and 2200-2700 MHz; 1.8:1 at 1710-2200 MHz
- Passive Intermodulation: -150 dBc, third order with two 20 W carriers
- Port Isolation: 26 dB
- Front-to-Back Ratio: 24 dB at 180°
- Installation Environment: Indoor or outdoor
- Radome Material: UV-resistant ABS
- Color: White
- IP Rating: IP65
- Operating Temperature: -40°C to +60°C (-40°F to +140°F)
- Maximum Wind Speed: 134 mph (216 km/h)
- Dimensions (L × W × D): Approximately 11.8 × 11.8 × 4.9 inches (299.7 × 299.7 × 124.5 mm)
- Unit Weight: Approximately 6.3 lb (2.8 kg), excluding shipping materials
Typical Applications
- Directional MIMO coverage in compatible distributed antenna systems
- Wireless coverage in arenas, convention centers, airports, and other large venues
- Indoor and outdoor cellular installations operating within the specified frequency bands
- Replacement or expansion of compatible existing Cell-Max antenna installations
Please Note: Verify frequency, connector, mounting, and system compatibility before purchase. The manufacturer lists this model as discontinued. Refer to the listing photos and included-item details for supplied mounting hardware and accessories.
