Description

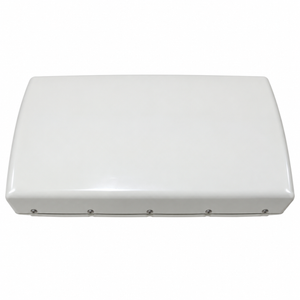

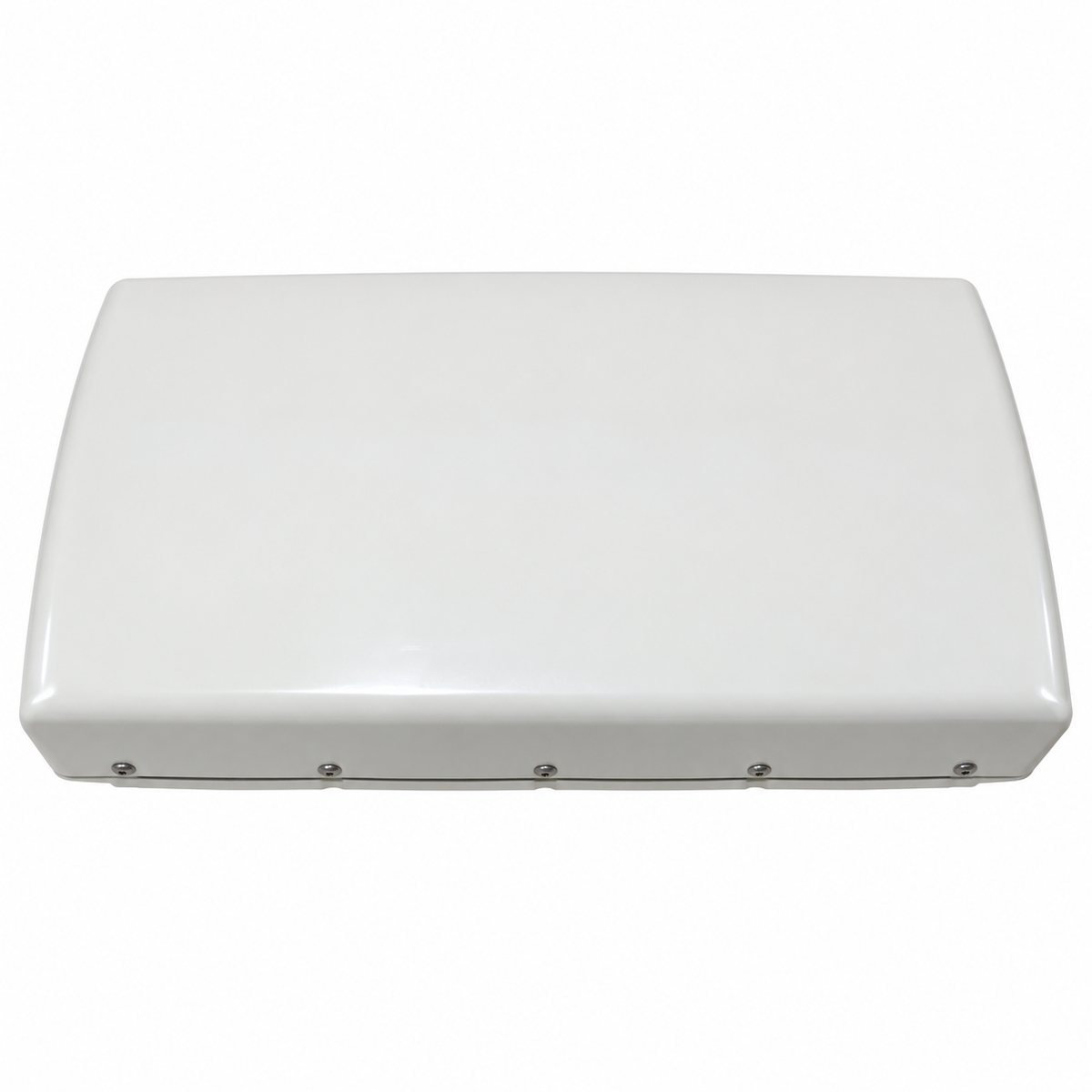

The Commscope CMAX-DM30-CPUSEi53 is a professional-grade Cell-Max Low PIM Directional MIMO Panel Antenna designed for high-capacity cellular coverage, distributed antenna systems (DAS), and wireless telecommunications infrastructure. Operating across 698–960 MHz and 1710–2700 MHz frequency bands, this dual-port antenna delivers approximately 11 dBi gain with a narrow 30-degree horizontal beamwidth, providing focused directional coverage for indoor and outdoor wireless installations.
The CMAX-DM30-CPUSEi53 features dual ±45° polarization with two independent RF ports, supporting MIMO wireless communication systems and high-capacity venue applications. The antenna provides excellent passive intermodulation performance of -153 dBc, cross-polarization isolation of 24 dB, and maximum input power handling of 200W per port. Equipped with two 7/16 DIN Female connectors, a UV-resistant white ABS radome, and IP65-rated environmental protection, this Commscope Cell-Max antenna is engineered for professional cellular and DAS infrastructure deployments.
Key Specifications
- Manufacturer: Commscope
- Part Number: CMAX-DM30-CPUSEi53
- Product Family: Cell-Max
- Product Type: Low PIM Directional MIMO Panel Antenna
- Antenna Configuration: Dual-Port MIMO
- Low Frequency Band: 698–960 MHz
- High Frequency Band: 1710–2700 MHz
- Typical Gain: Approximately 11 dBi
- Gain Range: 10.0–11.2 dBi Across Specified Frequency Bands
- Polarization: Dual ±45°
- Horizontal Beamwidth: Approximately 29°–36°, Frequency Dependent
- Vertical Beamwidth: Approximately 54°–66°, Frequency Dependent
- Front-to-Back Ratio: 24–27 dB
- Impedance: 50 Ohms
- VSWR, Low Band: 1.8:1
- VSWR, High Band: 1.7:1
- Cross-Polarization Isolation: 24 dB
- Passive Intermodulation (PIM): -153 dBc (3rd Order, 2 x 20W)
- Maximum Input Power: 200W per Port
- RF Connector Type: 2 x 7/16 DIN Female
- Lightning Protection: DC Ground
- Antenna Length: 609.6 mm / 24 inches
- Antenna Width: 340.4 mm / 13.4 inches
- Antenna Depth: 127 mm / 5 inches
- Net Weight: Approximately 15.4 lb (7 kg)
- Radome Material: UV-Resistant ABS Plastic
- Radome Color: White
- Ingress Protection Rating: IP65
- Maximum Wind Speed: 134 mph (216 km/h)
- Operating Temperature: -40°C to +60°C (-40°F to +140°F)
- Application: Indoor / Outdoor Wireless Infrastructure
- Product Status: Discontinued by Manufacturer
- Condition: Used
- Quantity: 1 Antenna
Typical Applications
- Distributed Antenna Systems (DAS)
- 4G LTE cellular network installations
- High-capacity venue wireless coverage
- Indoor and outdoor cellular coverage enhancement
- Directional MIMO wireless communication systems
- Stadiums, arenas, and convention centers
- Commercial buildings and corporate campuses
- Airports and transportation facilities
- Hotels, resorts, and entertainment venues
- Industrial and manufacturing facilities
- Private LTE wireless network infrastructure
- Telecommunications infrastructure upgrades
- Replacement and maintenance of existing Commscope Cell-Max antenna systems
Please Note: The Commscope CMAX-DM30-CPUSEi53 is a dual-port directional MIMO antenna with two 7/16 DIN Female connectors, designed for indoor and outdoor cellular coverage applications. This model was discontinued by Commscope in August 2016 and superseded by the CMAX-DM30-CPUSEV53. Please verify the required frequency bands, connector configuration, mounting requirements, and equipment compatibility before ordering. Mounting accessories are included only if specifically shown or identified in this listing.
Condition: These are used antennas and may show normal signs of previous installation, handling, and use. The antennas are offered in their existing condition.
