Description
Product Description

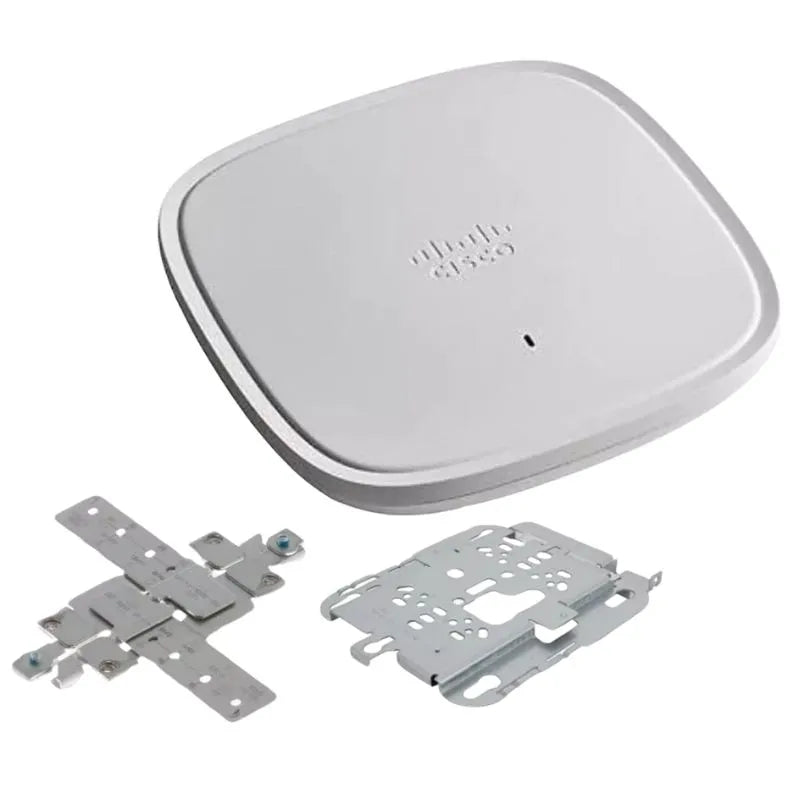

The Cisco Catalyst C9130AXI-B is an enterprise-class WiFi 6 indoor wireless access point designed for high-density business, education, healthcare, hospitality, campus, and large office deployments. This model features integrated internal omnidirectional antennas, WiFi 6 efficiency features, integrated Bluetooth Low Energy 5, and a multigigabit Ethernet uplink supporting speeds up to 5 Gbps.
The C9130AXI-B uses Flexible Radio Assignment technology. In its default configuration, it provides an 8x8:8 5 GHz radio and a 4x4:4 2.4 GHz radio. The 8x8 5 GHz radio can also be software-split into two separate 4x4:4 5 GHz radios for higher client capacity in demanding wireless environments.
Built for Cisco enterprise wireless deployments, the C9130AXI-B supports uplink and downlink MU-MIMO, OFDMA, Target Wake Time, BSS Coloring, beamforming, Cisco CleanAir, Wireless Intrusion Prevention System capabilities, and Cisco RF spectrum analysis. It includes a 5G multigigabit RJ45 Ethernet port, RJ45 management console port, USB 2.0 port, and integrated BLE radio for location, wayfinding, asset tracking, and IoT applications.
The C9130AXI-B is a controller-based access point designed for use with compatible Cisco Wireless LAN Controllers, including Cisco Catalyst 9800 Series Wireless Controllers. Cisco sold Embedded Wireless Controller versions under separate C9130AXI-EWC part numbers.
The -B suffix identifies the regulatory domain. Buyers are responsible for confirming regulatory approval and compatibility for their intended country of use.
Key Specifications
- Manufacturer: Cisco
- MPN: C9130AXI-B
- Product Series: Catalyst 9130AX Series
- Product Type: Indoor Wireless Access Point
- Wireless Standard: IEEE 802.11ax WiFi 6
- Backward Compatibility: IEEE 802.11a/b/g/n/ac
- Frequency Bands: 2.4 GHz and 5 GHz
- Antenna Type: Internal omnidirectional antennas
- Antenna Gain: 4 dBi at 2.4 GHz and 6 dBi at 5 GHz
- Default Radio Configuration: 8x8:8 at 5 GHz and 4x4:4 at 2.4 GHz
- Flexible Radio Assignment: Supports dual 4x4:4 5 GHz radio operation
- WiFi 6 Features: Uplink and downlink MU-MIMO, OFDMA, Target Wake Time, BSS Coloring, beamforming, WPA3 support
- Maximum PHY Data Rate: Up to 5.38 Gbps theoretical maximum
- Bluetooth: Integrated Bluetooth Low Energy 5 radio
- Ethernet Interface: 1 x 100/1000/2500/5000 Mbps multigigabit RJ45 port
- Management Port: RJ45 console interface
- USB Interface: USB 2.0, up to 4.5W
- Supported Controllers: Compatible Cisco Wireless LAN Controllers, including Cisco Catalyst 9800 Series
- Power Input: IEEE 802.3af PoE, IEEE 802.3at PoE+, or IEEE 802.3bt Cisco UPOE
- Dimensions: 8.9 x 8.9 x 1.88 in.
- Weight: 3.2 lb.
- Operating Temperature: 32°F to 122°F
Important: This listing is for the Cisco C9130AXI-B access point only. Wireless controller, subscription or software licensing, power injector, mounting hardware, Ethernet cable, and other accessories are not included unless expressly shown or stated.
