Product Description

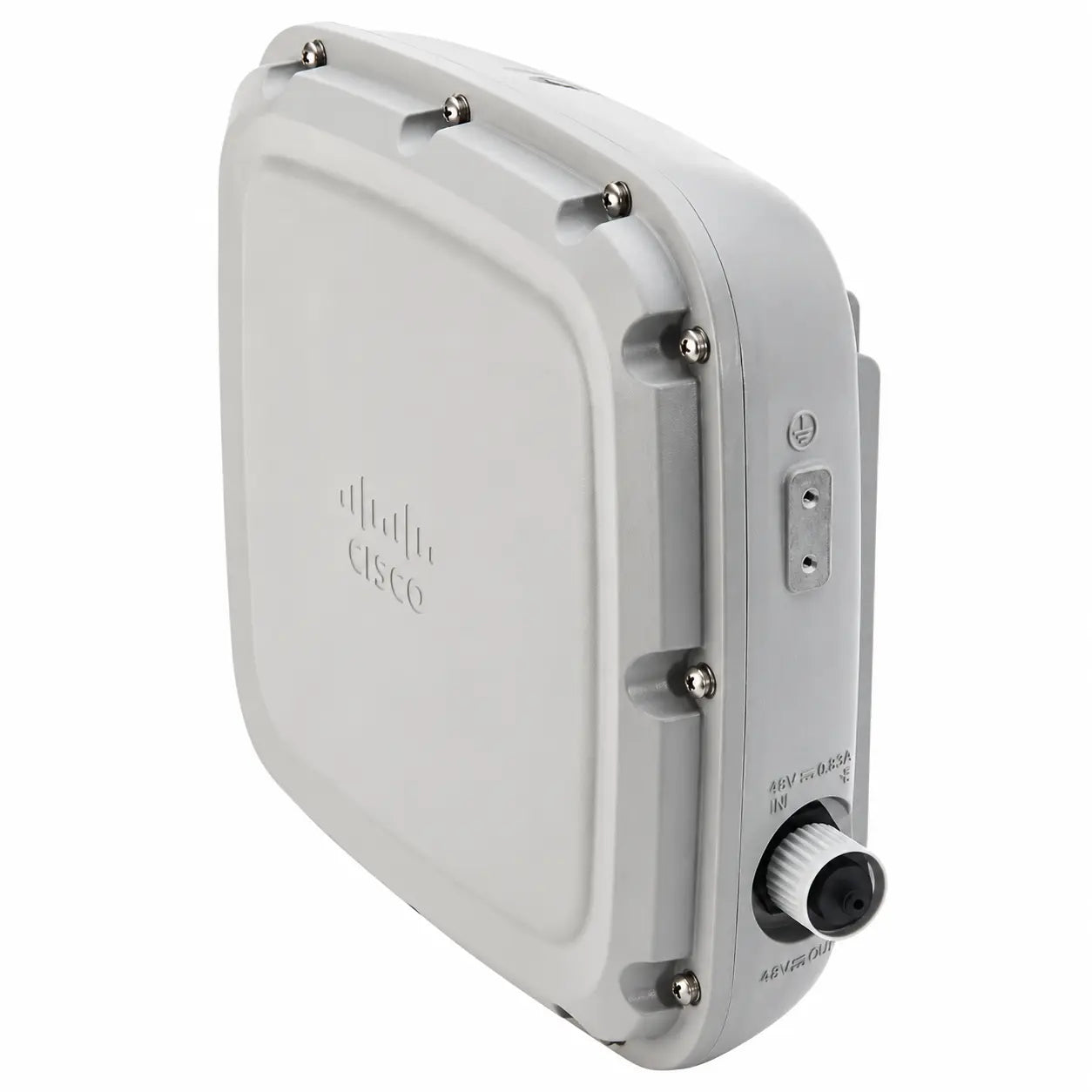

The Cisco C9130AXE-STA-B is a high-performance WiFi 6 stadium access point factory assembled with the Cisco C-ANT9104 directional antenna. This weather-protected large-venue bundle is designed for high-density indoor or outdoor wireless deployments, including stadiums, arenas, convention centers, auditoriums, transportation hubs, and other public venues.
The integrated Cisco C-ANT9104 is an eight-port, polarization-diverse, low-sidelobe directional patch array supporting 2.4 GHz and dual 5 GHz operation. Its 5 GHz antenna patterns support software-controlled wide or narrow beamwidth operation and configurable beam steering when used with a compatible Cisco Catalyst 9800 Wireless Controller.
The C9130AXE-STA-B supports WiFi 6 technologies including uplink and downlink MU-MIMO, OFDMA, Target Wake Time, BSS Coloring, beamforming, and WPA3. It includes a 5G multigigabit Ethernet RJ45 uplink, RJ45 management console port, USB 2.0 interface, and integrated Bluetooth Low Energy 5 radio for location, asset tracking, analytics, and IoT use cases.
This model is designed for Cisco Catalyst 9800 Series Wireless Controllers running Cisco IOS XE 17.6.1 or later. The C9130AXE-STA-B is not supported on AireOS wireless controllers. The -B suffix identifies the regulatory domain; buyers are responsible for confirming regulatory approval and compatibility for their intended country of use.
Key Specifications
- Manufacturer: Cisco
- MPN: C9130AXE-STA-B
- Product Series: Catalyst 9130AX Series
- Product Type: WiFi 6 Stadium Access Point Bundle
- Wireless Standard: IEEE 802.11ax WiFi 6
- Backward Compatibility: IEEE 802.11a/b/g/n/ac
- Deployment Type: High-density indoor and outdoor large venues
- Factory Bundle: Cisco C9130AXE access point with Cisco C-ANT9104 stadium antenna
- Antenna Type: External directional eight-port patch array
- Frequency Bands: 2.4 GHz and dual 5 GHz operation
- 2.4 GHz Antenna Gain: 6 dBi
- 5 GHz Antenna Gain: 7 dBi wide beam or 10 dBi narrow beam
- 5 GHz Beamwidth: Software-selectable wide or narrow beam patterns
- 5 GHz Beam Steering: 0°, 10°, or 20° off-center in narrow-beam mode
- WiFi 6 Features: Uplink and downlink MU-MIMO, OFDMA, Target Wake Time, BSS Coloring, beamforming, WPA3
- Maximum PHY Data Rate: Up to 5.38 Gbps theoretical maximum
- Bluetooth: Integrated Bluetooth Low Energy 5 radio
- Ethernet Interface: 1 x 100/1000/2500/5000 Mbps multigigabit RJ45 port
- Management Port: RJ45 console interface
- USB Interface: USB 2.0, up to 4.5W
- Supported Controller Platform: Cisco Catalyst 9800 Series Wireless Controllers with IOS XE 17.6.1 or later
- Power Input: IEEE 802.3af PoE, IEEE 802.3at PoE+, or IEEE 802.3bt Cisco UPOE
- Ingress Protection: IP65
- Mounting Options: Wall, flat ceiling, pole, or mast mounting with articulating bracket
- Dimensions: 23.5 x 18.2 x 5.8 in.
- Weight: 15.5 lb.
- Operating Temperature: -4°F to 140°F without solar loading
Important: This listing is for the Cisco C9130AXE-STA-B factory-assembled access point and C-ANT9104 stadium antenna bundle. Wireless controller, Cisco licensing, PoE injector, Ethernet cable, solar shield, installation services, and other accessories are not included unless expressly shown or stated.
