Product Description

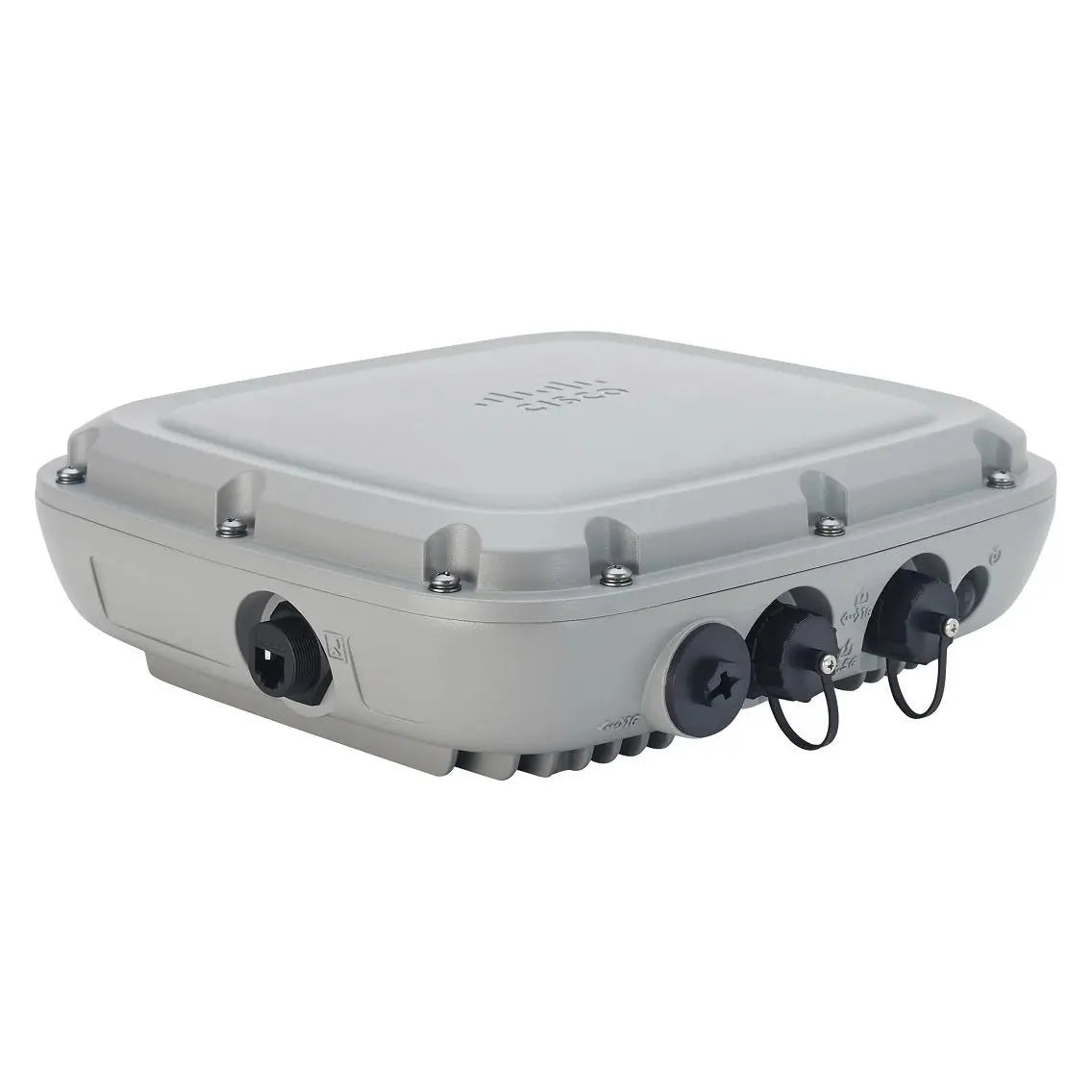

The Cisco C9124AXI-B Catalyst 9124AX Series is a rugged WiFi 6 outdoor wireless access point designed for enterprise and service provider deployments. It features integrated omnidirectional antennas, 4x4:4 MU-MIMO on both the 2.4 GHz and 5 GHz bands, uplink and downlink OFDMA, and Bluetooth Low Energy 5 for location-based and IoT applications.
Built for demanding outdoor environments, the C9124AXI-B has an IP66/IP67-rated enclosure and supports operating temperatures from -40°F to 149°F without solar loading. The access point includes a 2.5G multigigabit PoE-in Ethernet uplink, a Gigabit SFP uplink port, and a Gigabit Ethernet PoE-out port when powered by a compatible UPOE, 802.3bt, or qualifying DC power source.
The C9124AXI-B is designed for use with Cisco Catalyst 9800 Series Wireless Controllers. The -B suffix identifies the regulatory domain; buyers are responsible for confirming regulatory approval and compatibility for their intended country of use.
Key Specifications
- Manufacturer: Cisco
- MPN: C9124AXI-B
- Product Series: Catalyst 9124AX Series
- Product Type: Outdoor Wireless Access Point
- Wireless Standard: IEEE 802.11ax WiFi 6
- Backward Compatibility: IEEE 802.11a/b/g/n/ac
- Frequency Bands: 2.4 GHz and 5 GHz
- Antenna Type: Internal omnidirectional antennas
- Antenna Gain: 7 dBi at 2.4 GHz and 5 GHz; 5 dBi BLE antenna
- Spatial Streams: 4x4:4 MU-MIMO on 2.4 GHz and 5 GHz
- Maximum PHY Data Rate: Up to 5.38 Gbps
- WiFi 6 Features: OFDMA, Target Wake Time, BSS Coloring, beamforming, WPA3
- Bluetooth: Integrated Bluetooth Low Energy 5 radio
- Ethernet Uplink: 1 x 100/1000/2500BASE-T multigigabit PoE-in port
- SFP Port: 1 x Gigabit Ethernet SFP uplink port
- PoE Output: 1 x Gigabit Ethernet PoE-out port, subject to input power source
- Management: Cisco Catalyst 9800 Series Wireless Controllers
- Power Input: 802.3af, 802.3at, 802.3bt, Cisco UPOE, or 24V to 56VDC
- Ingress Protection: IP66/IP67
- Dimensions: 10.2 x 9.2 x 3.2 in.
- Weight: 6.5 lb.
Important: This listing is for the Cisco C9124AXI-B access point. Controller, licensing, PoE injector, power supply, SFP module, mounting hardware, and other accessories are not included unless expressly shown or stated.
