Description

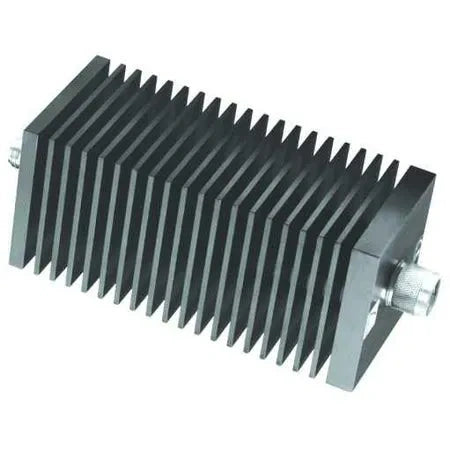

The Bird 100-SA-FFN-20 is a high-power RF coaxial attenuator designed for reducing RF signal levels in lab, test, telecom, and wireless infrastructure environments. This model provides 20 dB attenuation, supports 100 watts continuous power, and features N-Type female connectors on both ends.
Part of Bird’s 100-SA series, this dry convection-cooled attenuator is designed for bi-directional in-line RF use from DC to 2.4 GHz. It is useful for RF test benches, component isolation, harmonic analysis, DAS verification, cellular base station testing, and high-power RF signal reduction where passive cooling and rugged construction are preferred.
This item is open-box / used. It may show minor cosmetic wear, handling marks, or storage wear. Includes the attenuator only; no cables, adapters, manuals, calibration documents, test reports, or accessories unless shown.
Key Specifications
- Manufacturer: Bird Technologies
- Model / MPN: 100-SA-FFN-20
- Product Type: RF Coaxial Attenuator
- Attenuation: 20 dB
- Power Rating: 100W continuous
- Frequency Range: DC–2.4 GHz
- Connector Type: N-Type Female to N-Type Female
- Configuration: Bi-directional / in-line
- VSWR: 1.10:1 max from DC–1 GHz; 1.25:1 max from 1–2.4 GHz
- Impedance: 50 Ohm nominal
- Cooling: Dry convection-cooled / passive cooling
- Applications: RF labs, DAS verification, telecom testing, cellular base station testing, harmonic analysis, and high-power RF attenuation
- Condition: Open-Box / Used
- Includes: Attenuator only; no cables, adapters, manuals, or accessories unless shown
