Description

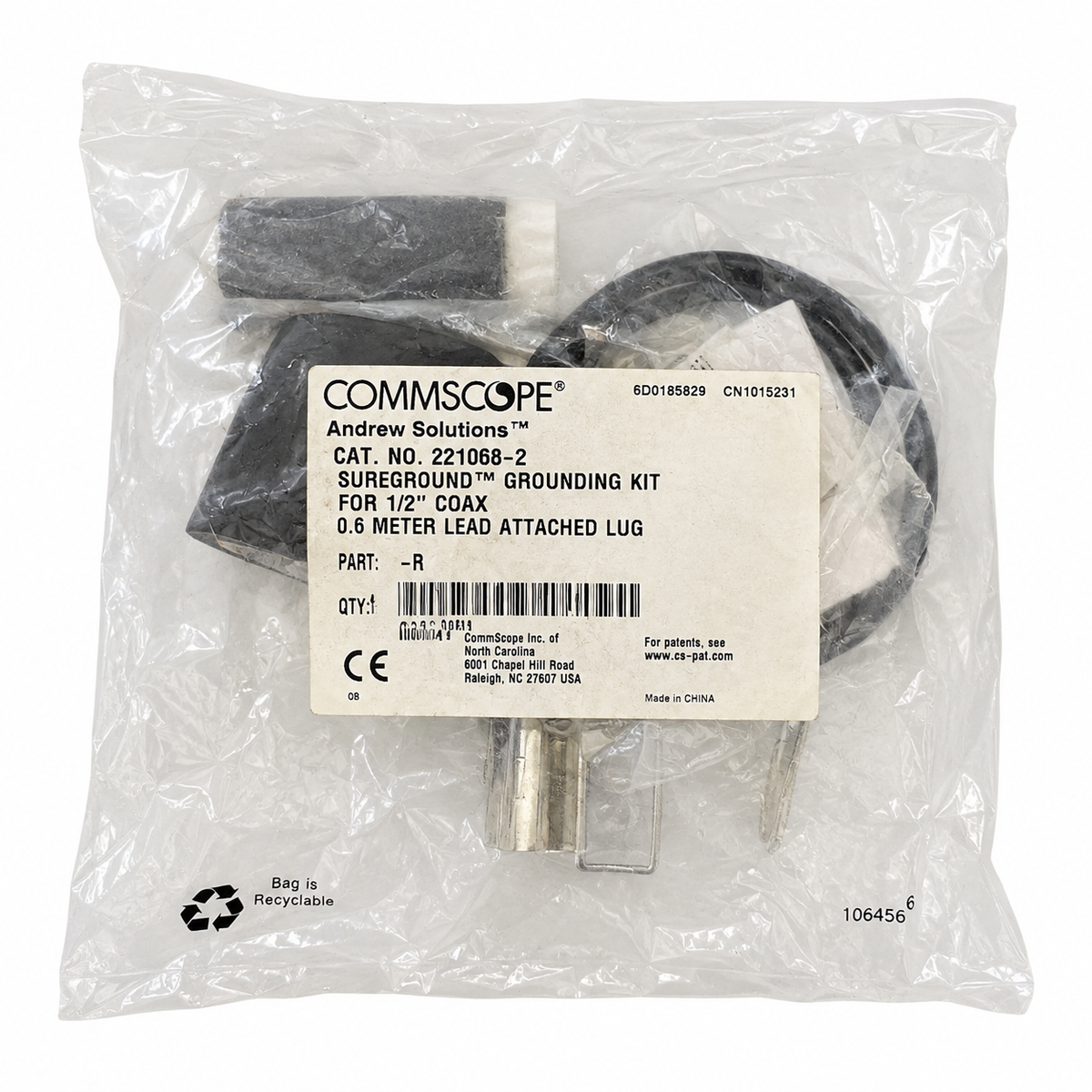

The Commscope SureGround SG12-06B2A is a professional grounding kit for 1/2 inch coaxial cable designed to provide reliable grounding, bonding, and lightning protection for wireless and telecommunications installations. The kit is compatible with both corrugated and smoothwall coaxial cable with compatible cable diameters from 0.610 to 0.650 inch.
The SG12-06B2A features a 24 inch, 6-gauge copper bonding conductor with PVC jacketing and a factory-attached two-hole lug. It is tested to withstand up to 100,000 amps peak current surge and meets demanding grounding, bonding, shielding, environmental, and lightning protection test requirements. The kit includes grounding hardware along with PVC and butyl rubber weatherproofing tape for professional installation.
Key Specifications
- Manufacturer: CommScope
- Brand: SureGround
- Part Number: SG12-06B2A
- Product Type: Coaxial Cable Grounding Kit
- Nominal Cable Size: 1/2 in
- Cable Type: Corrugated / Smoothwall
- Compatible Cable Diameter: 0.610 to 0.650 in / 15.494 to 16.510 mm
- Bonding Conductor Length: 24 in / 609.6 mm
- Bonding Conductor Material: Copper
- Bonding Conductor Wire Size: 6 Gauge
- Bonding Conductor Jacketing: PVC
- Grounding Strap Material: Tinned Copper
- Lug Type: Two-Hole Lug
- Lug Attachment: Factory Attached
- Locking Bail Material: Stainless Steel
- Rivet Material: Tinned Copper
- Thread Size: 3/8 in
- Current Handling: Tested to withstand 100,000 amps peak current surge
- Current Handling Test: MIL-STD-1757
- Grounding, Bonding and Shielding Test: MIL-STD-188-124A
- Lightning Protection Test: IEC 1024-1
- Immersion Protection: IP68 per IEC 60529:2001
- Operating Temperature: -40°C to +85°C (-40°F to +185°F)
- Storage Temperature: -40°C to +80°C (-40°F to +176°F)
- Weatherproofing Method: Butyl and Electrical Tape
- Color: Black
- Condition: New
- Package Quantity: 1 Grounding Kit
Kit Includes
- SureGround grounding kit
- Grounding hardware
- Factory-attached two-hole lug
- One roll of 2 inch PVC tape
- One roll of 24 inch butyl rubber tape
Typical Applications
- Wireless telecommunications installations
- Cellular and DAS coaxial cable grounding
- Base station and antenna feedline grounding
- Rooftop wireless installations
- Tower and outdoor coaxial cable installations
- Grounding and bonding of 1/2 inch coaxial cable
- Lightning protection and RF infrastructure grounding
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $14.99 | $26.32 | $20.16 | $22.05 |
| You Save | 43% | 26% | 32% |
Please Note: Price comparison is shown per grounding kit. The SG12-06B2A is designed for compatible 1/2 inch coaxial cable with an outside diameter from 0.610 to 0.650 inch. Please verify cable diameter and installation requirements before ordering.
