Description

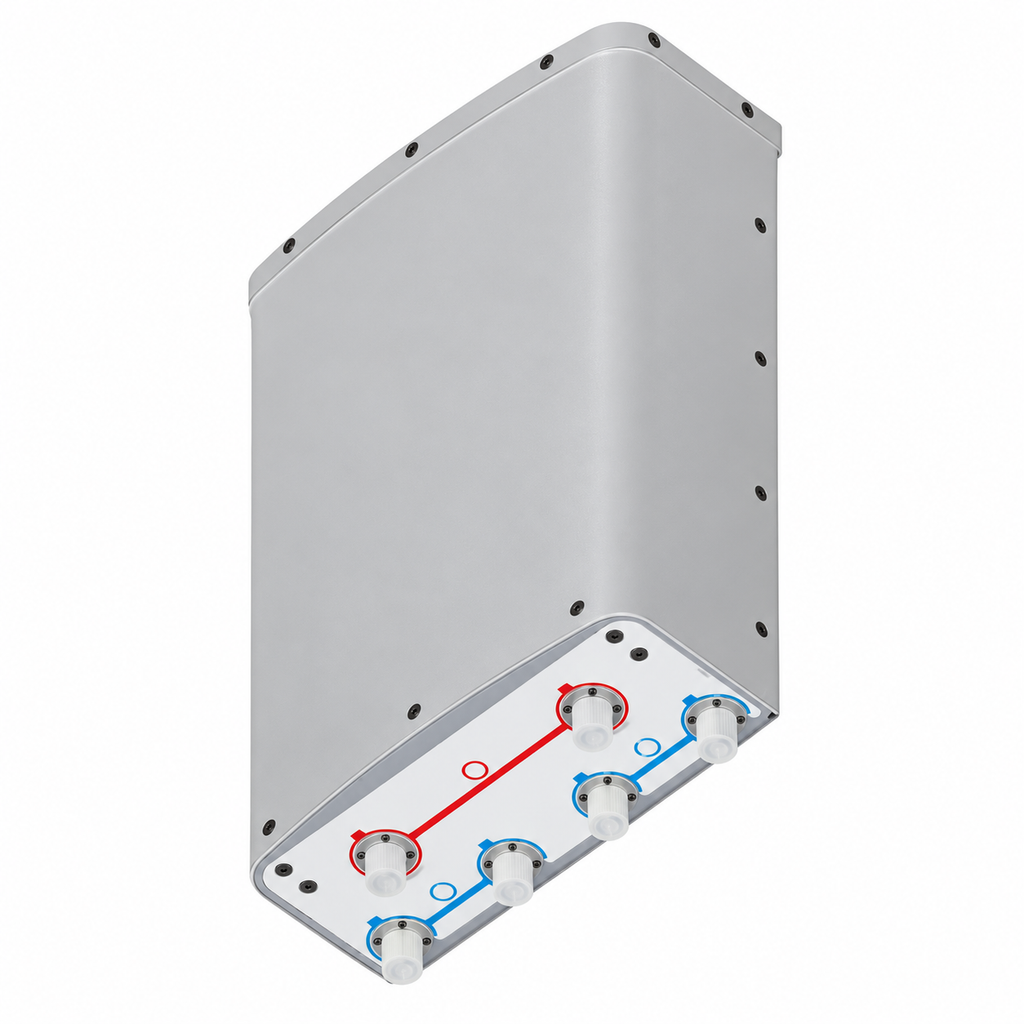

The Amphenol HTXCWW4513F20100 is a six-port, dual-polarized panel antenna designed for small cell wireless coverage. Its three-array design combines one 696-960 MHz low-band array and two 1695-2180 MHz mid-band arrays in a compact 24.1-inch enclosure, with a nominal 45-degree horizontal beamwidth for focused coverage.
This model features fixed electrical downtilt of 20 degrees on the low band and 10 degrees on both mid-band arrays. Six bottom-mounted 7/16 DIN female connectors provide separate RF connections for the three dual-polarized arrays. Low passive intermodulation, peak gain up to 14.1 dBi, and a direct-ground design support demanding wireless installations.
Key Specifications
- Manufacturer: Amphenol Antenna Solutions
- Part Number: HTXCWW4513F20100
- Product Type: Six-port, fixed-tilt panel antenna
- Low-Band Frequency Range: 696-960 MHz; one array with two ports
- Mid-Band Frequency Range: 1695-2180 MHz; two arrays with four ports total
- Polarization: Dual-slant, ±45 degrees
- RF Connectors: Six 7/16 DIN female connectors, located on the bottom
- Fixed Electrical Downtilt: 20 degrees low band; 10 degrees mid band
- Nominal Horizontal Beamwidth: 45 degrees; actual beamwidth varies by frequency
- Peak Gain: Up to 13.9 dBi low band; up to 14.1 dBi mid band
- Impedance: 50 ohms
- VSWR: ≤1.5:1
- Maximum Power Per Port: 500 W for each low-band port; 300 W for each mid-band port
- Passive Intermodulation: <-153 dBc, third order, with two 20 W carriers
- Front-to-Back Ratio: >24 dB low band; >25 dB mid band
- Grounding Type: Direct ground
- Radome Color: Gray
- Survival Wind Speed: 150 mph (241 km/h)
- Dimensions: Approximately 24.1 × 16.2 × 7.3 inches (611 × 412 × 185 mm), length × width × depth
- Unit Weight: Approximately 15.7 lb (7.1 kg), antenna only; excludes mounting hardware and shipping materials
- Compatible Mounting Kit: Amphenol 36210006 two-point pole mounting and downtilt bracket kit
- Supported Pipe Diameter: 1.57-4.5 inches (40-115 mm) when used with the specified mounting kit
Typical Applications
- Small cell wireless coverage in the supported low-band and mid-band frequency ranges
- Directional coverage for campuses, commercial properties, and public venues
- Multiband installations requiring separate RF connections for three dual-polarized arrays
- Replacement or expansion of installations requiring a 20-degree low-band and 10-degree mid-band fixed electrical downtilt configuration
Please Note: Verify frequency coverage, connector compatibility, and fixed electrical downtilt requirements before purchase. The HTXCWW4513F20100 uses the 20-degree/10-degree electrical downtilt configuration; other models in this antenna family have different tilt settings. Mounting hardware and accessories are included only when specifically stated in the listing.
