Description

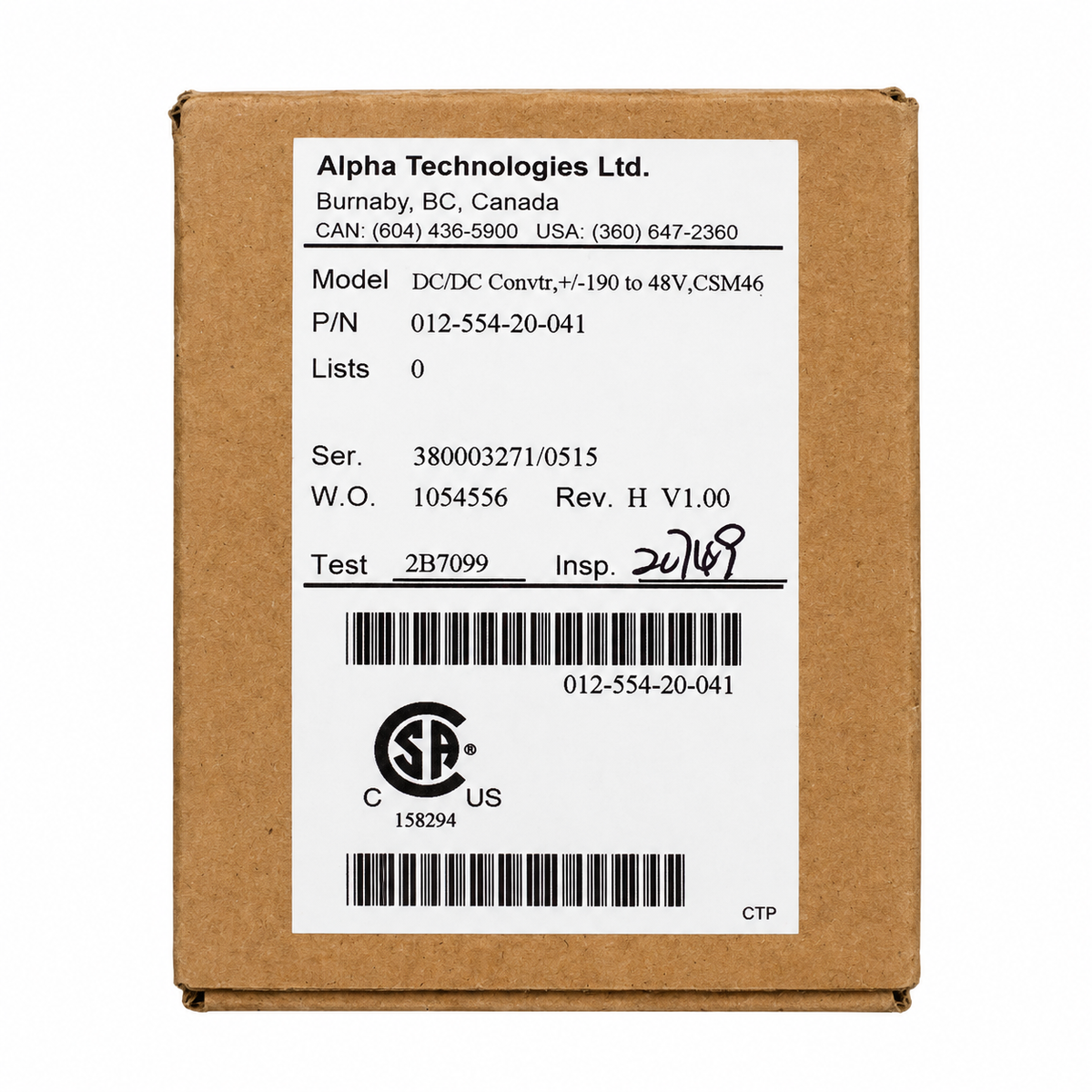

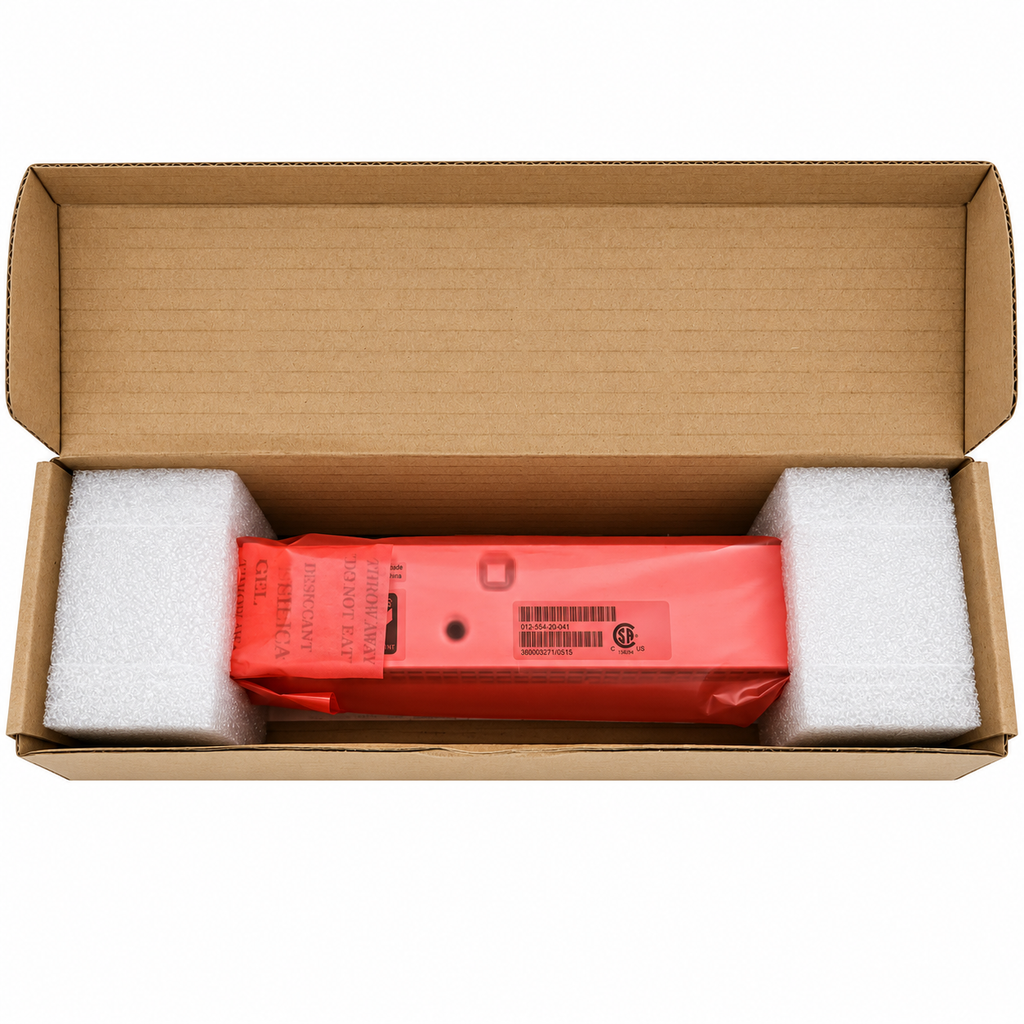

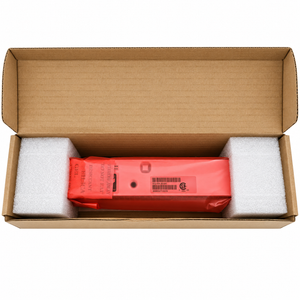

The Alpha Technologies 012-554-20-041 is an OEM CSM46 DC-DC Converter Module designed for telecommunications network and remote line powering applications. This modular converter transforms high-voltage DC input from distributed power networks into regulated -48V nominal DC output, providing reliable power conversion for remote telecommunications equipment. The module supports an input voltage range of 195 to 380 VDC and delivers up to 150W of output power.
The Alpha Technologies CSM46 Modular Converter System uses high-frequency switched-mode conversion technology to support centralized network powering over existing copper pair infrastructure. Each converter module incorporates two isolated DC-DC converter channels, rated up to 75W each, with built-in protection and monitoring features. Designed for installation in compatible CSM46 converter shelves, the module supports scalable power capacity, hot-swappable replacement, and integration with Alpha CSM36 upstream power conversion systems used in telecommunications network infrastructure.
Key Specifications
- Manufacturer: Alpha Technologies
- Part Number: 012-554-20-041
- Product Family: CSM46 Modular Converter System
- Product Type: DC-DC Down Converter Module
- Application: Telecommunications Remote / Line Powering
- Input Voltage: 195 to 380 VDC (±97.5 to ±190 VDC)
- Nominal Output Voltage: -48 VDC
- Output Voltage Range: -50 to -55 VDC
- Maximum Output Power: 150W per Module
- Converter Channels: 2 Independent Isolated Channels
- Output Power per Channel: Up to 75W
- Maximum Output Current: 1.5A per Channel / 3.0A Total
- Conversion Efficiency: Greater than 85%
- Module Dimensions: 42 x 23 x 280 mm (H x W x D)
- Module Weight: Approximately 1.5 lb (0.67 kg)
- Cooling: Natural Convection / External Forced Airflow
- Monitoring: Front Panel Input and Output Status LEDs
- Protection Features: Overvoltage, Overcurrent, Overtemperature, Input Voltage Shutdown and Reverse Polarity Protection
- Compatible Equipment: Alpha CSM46 Modular Converter Shelves
- OEM: Alpha Technologies
- Quantity: 1 Converter Module
Typical Applications
- Telecommunications DC power conversion systems
- Alpha Technologies CSM46 modular converter installations
- Remote telecommunications equipment powering
- Centralized network power distribution
- High-voltage DC to -48V DC conversion
- FTTx fiber access network infrastructure
- DSL and broadband access equipment
- Copper pair remote line powering systems
- Telecommunications central office infrastructure
- Remote network equipment installations
- Replacement and maintenance of existing CSM46 converter systems
Please Note: This listing is for the Alpha Technologies 012-554-20-041 CSM46 DC-DC Converter Module only. The complete converter shelf, power distribution equipment, wiring harnesses, and other system components are not included. The module requires a compatible Alpha CSM46 converter shelf and an appropriate high-voltage DC power source. Output power and operating conditions depend on input voltage, system configuration, and cooling requirements. Please verify the exact part number, electrical specifications, and equipment compatibility before ordering. Installation and servicing should be performed by qualified telecommunications power personnel.
