Description

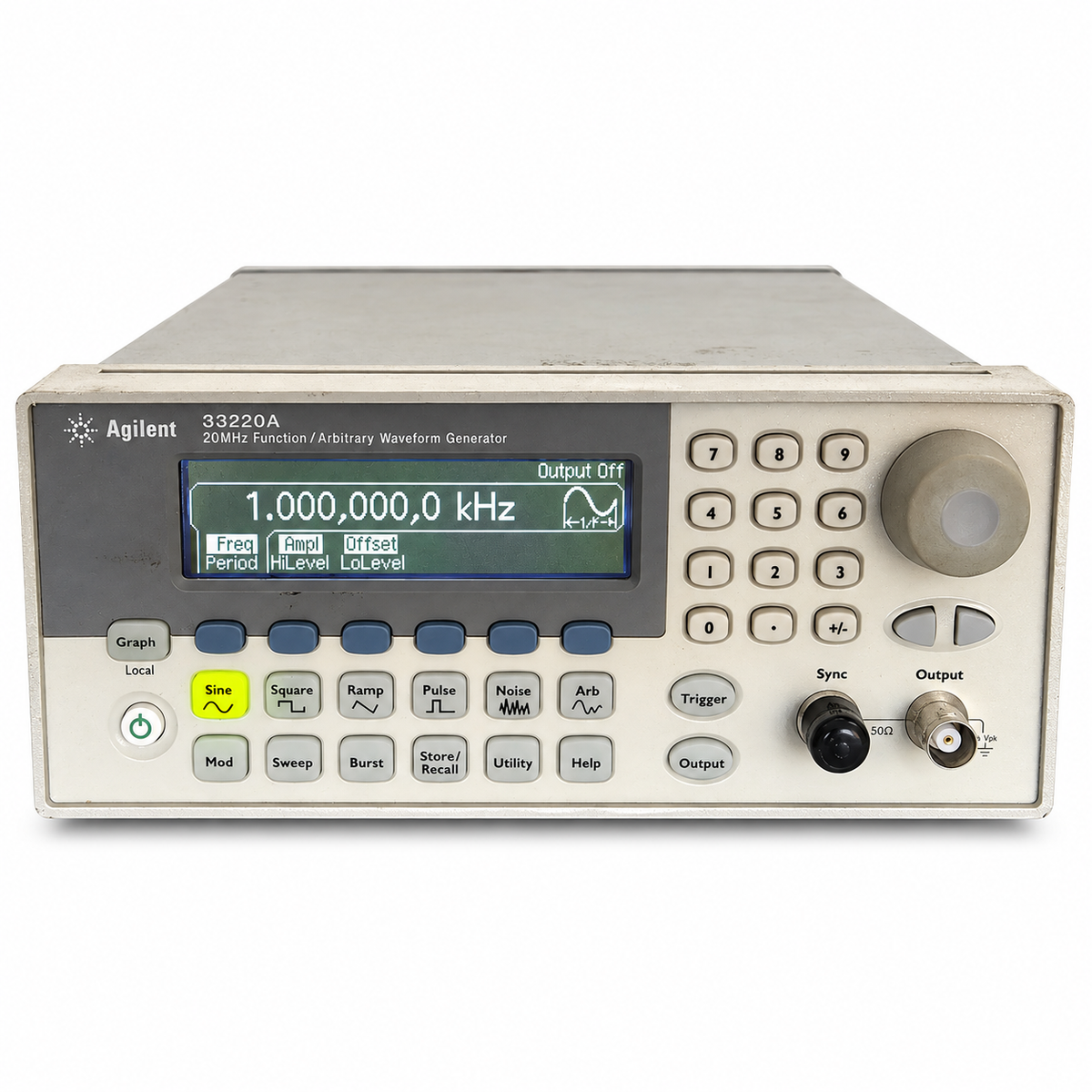

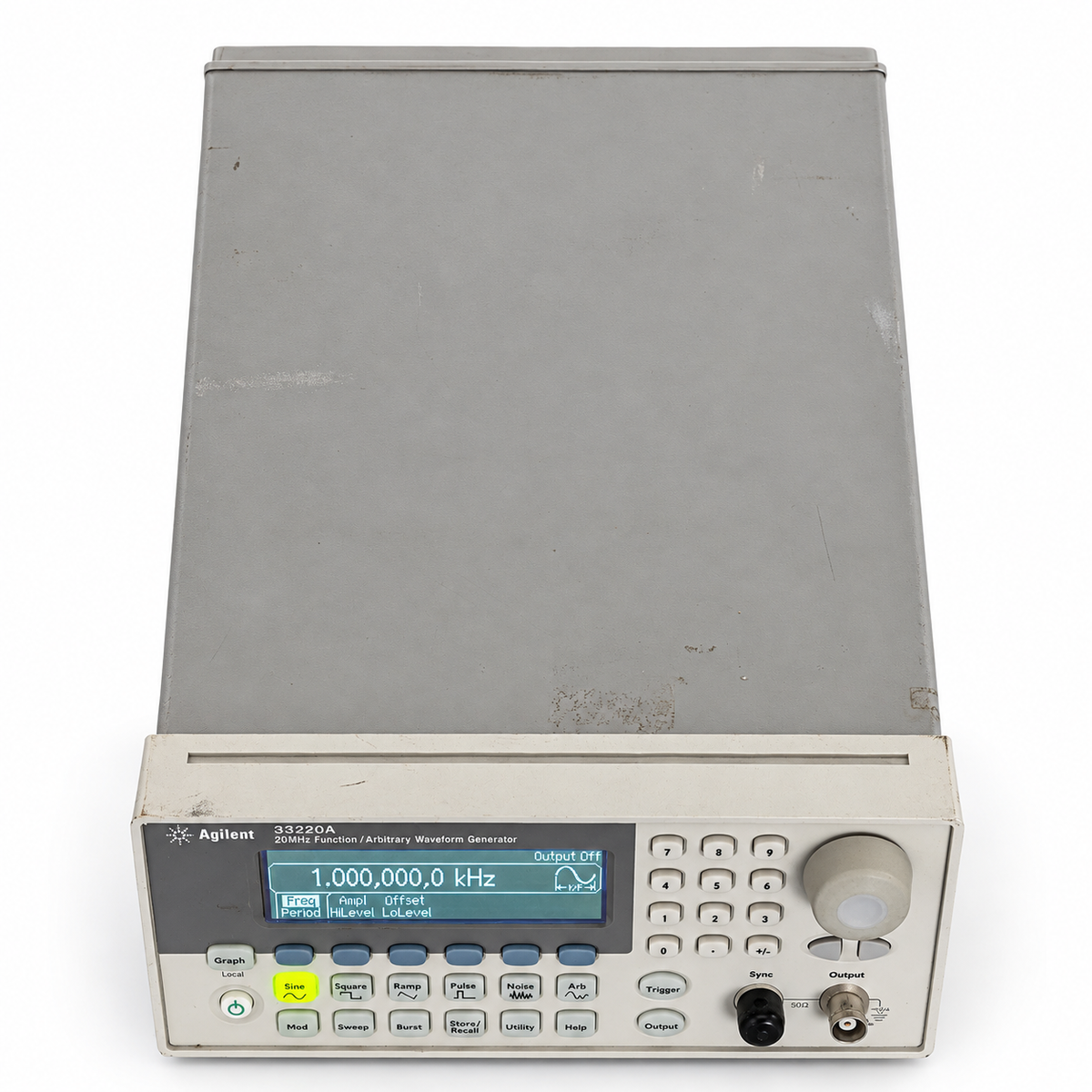

The Agilent Keysight 33220A is a professional 20 MHz Function / Arbitrary Waveform Generator designed for laboratory, engineering, electronics development, manufacturing test, education, and general-purpose signal generation applications. It provides standard waveforms, arbitrary waveform capability, modulation functions, sweep and burst operation, and programmable output for a wide range of electronic test and measurement requirements.
The 33220A supports frequencies up to 20 MHz for sine and square waveforms and provides 14-bit, 50 MSa/s arbitrary waveform generation. Connectivity includes GPIB, USB, and LAN. This listing includes both standard units and units equipped with Option 001 External Timebase Input, selectable through the available product variants.
Key Specifications
- Manufacturer: Agilent Technologies / Keysight Technologies
- Model: 33220A
- Product Type: Function / Arbitrary Waveform Generator
- Maximum Frequency: 20 MHz
- Sine / Square Frequency Range: 1 µHz to 20 MHz
- Arbitrary Waveform Resolution: 14 Bit
- Arbitrary Waveform Sample Rate: 50 MSa/s
- Arbitrary Waveform Length: Up to 64,000 Points
- Ramp Repetition Frequency: Up to 200 kHz
- Pulse Frequency Range: 500 µHz to 5 MHz
- Amplitude Range: 10 mVpp to 10 Vpp into 50 Ohm Load
- Standard Waveforms: Sine, Square, Pulse, Ramp, Noise, DC, Triangle
- Modulation Types: AM, FM, PM, FSK, Burst, PWM
- Sweep: Linear / Logarithmic
- Computer Interfaces: GPIB, USB, LAN
- Programming: SCPI Compatible
- Option 001: External Timebase Input on Equipped Units
- Condition: Used – Good Condition
- Power Test: Unit Powers On and Off
- Quantity: 1 Waveform Generator
Available Variants
- Standard: Agilent 33220A without Option 001
- Option 001: Agilent 33220A with External Timebase Input
Typical Applications
- Electronic engineering laboratories
- Research and development
- Bench testing and troubleshooting
- Signal generation and circuit testing
- Manufacturing test environments
- University and technical education laboratories
- Component and system characterization
- Waveform development and modulation testing
- General-purpose electronic test and measurement

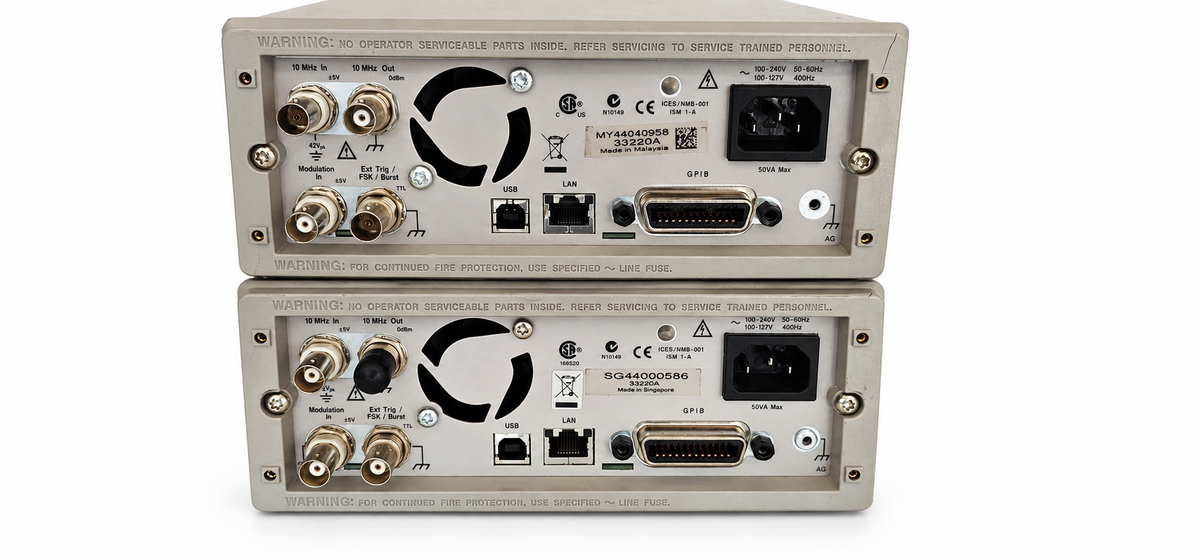

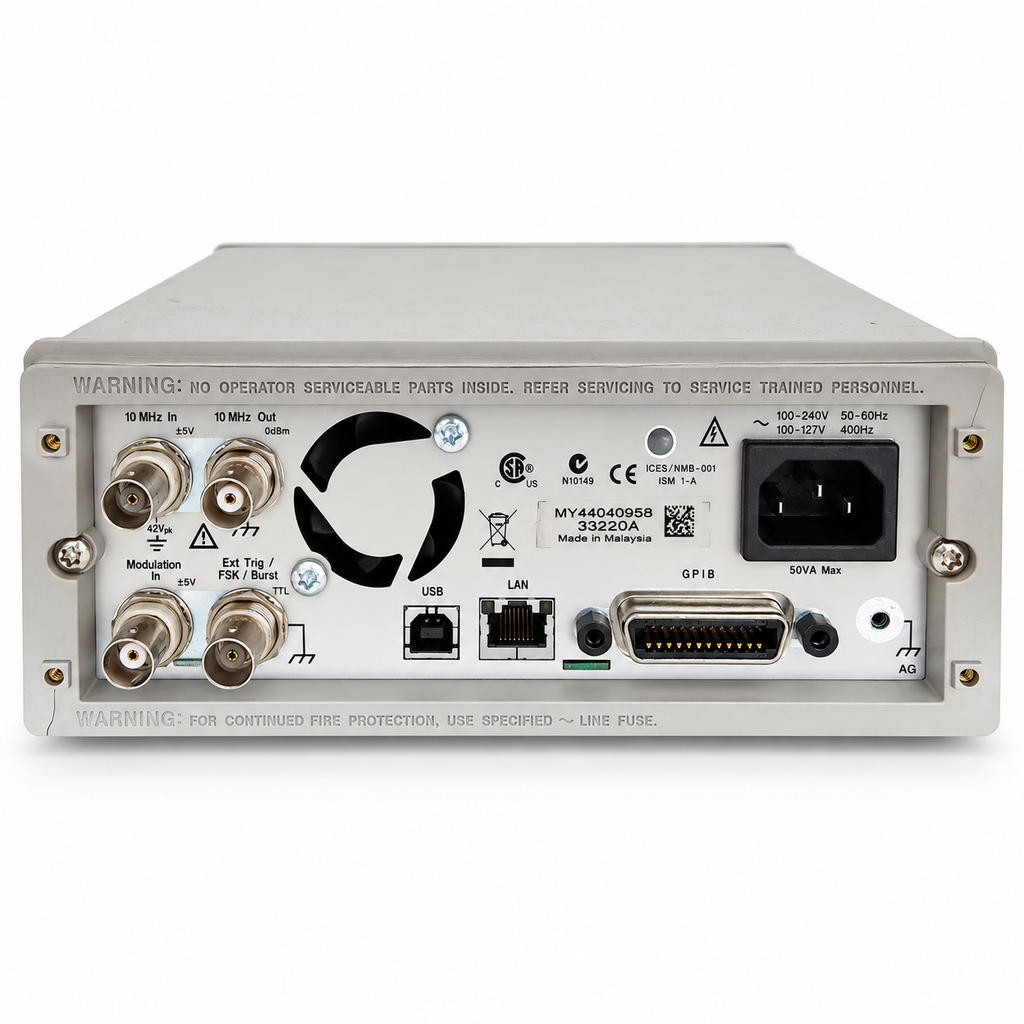

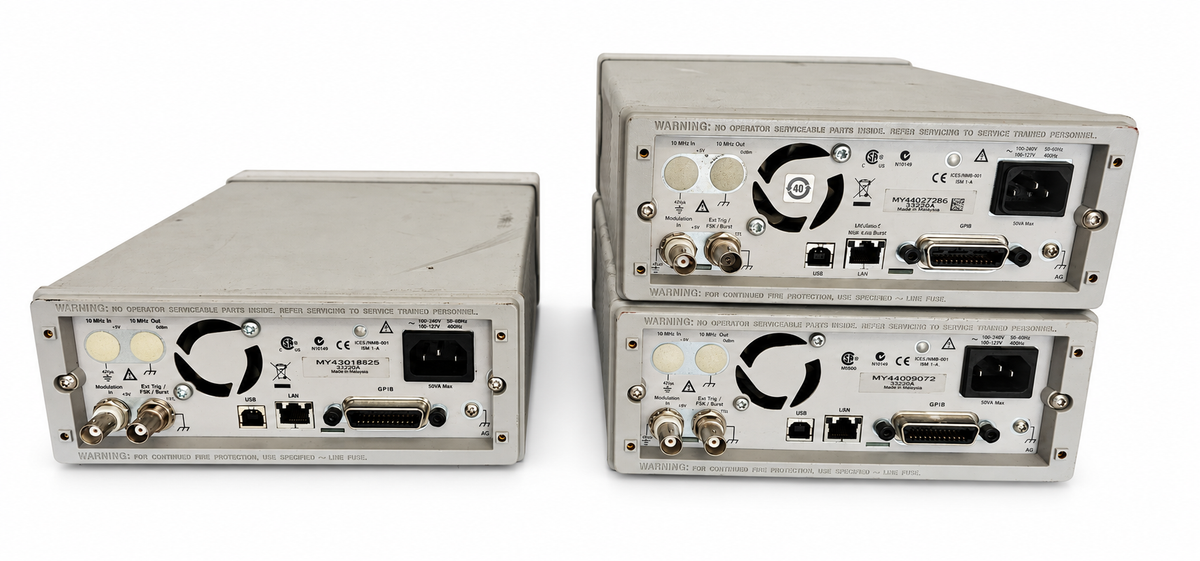

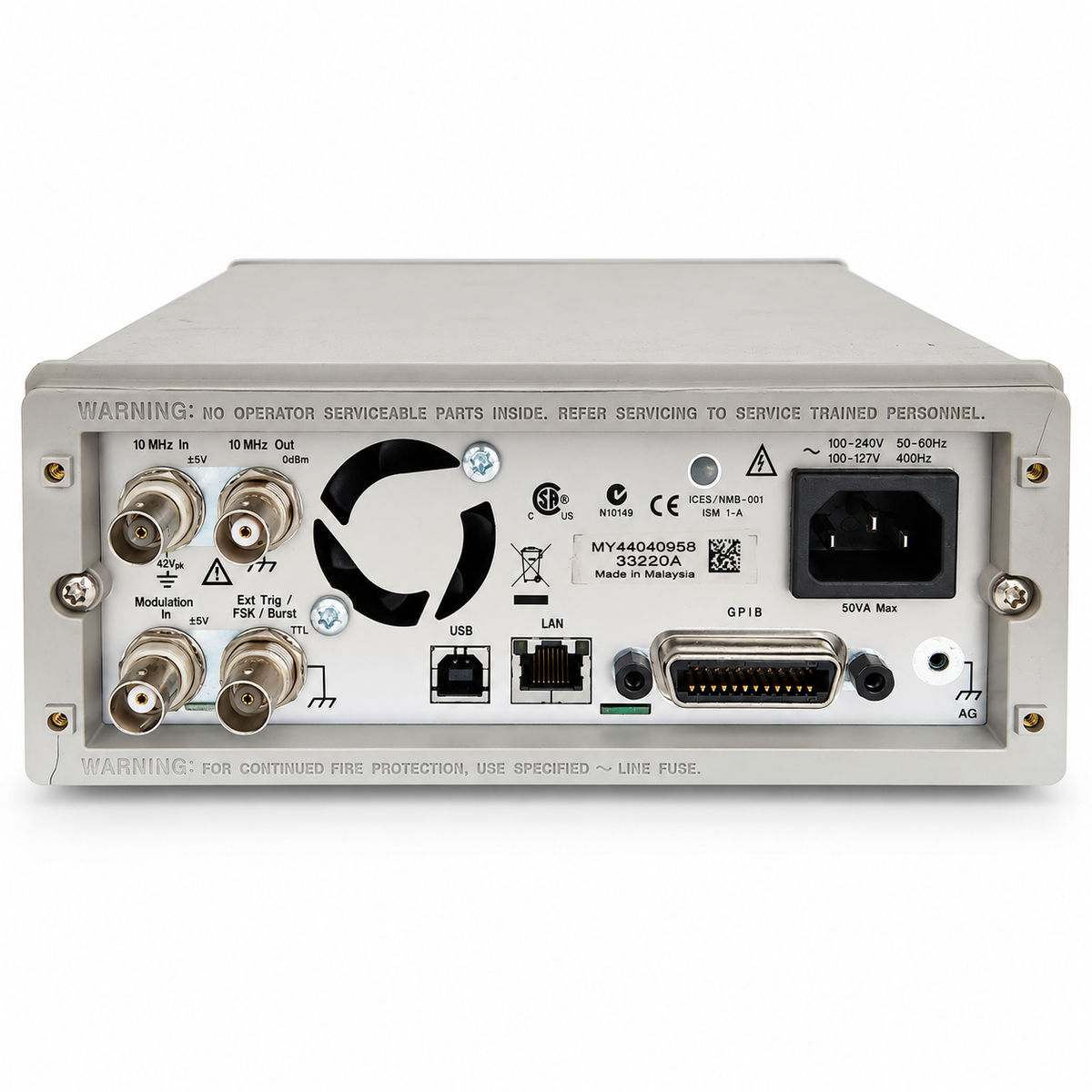

Please Note: These Agilent 33220A waveform generators are offered in used, good cosmetic condition. The units have been verified to power on and power off. No additional functional testing is represented unless specifically stated. Option 001 availability varies by unit and should be selected from the available product variants. Units equipped with Option 001 can be identified by the external 10 MHz In / 10 MHz Out reference connections on the rear panel. Cosmetic condition may vary slightly between individual units. Please review the product photos and select the desired configuration before ordering.
