Description

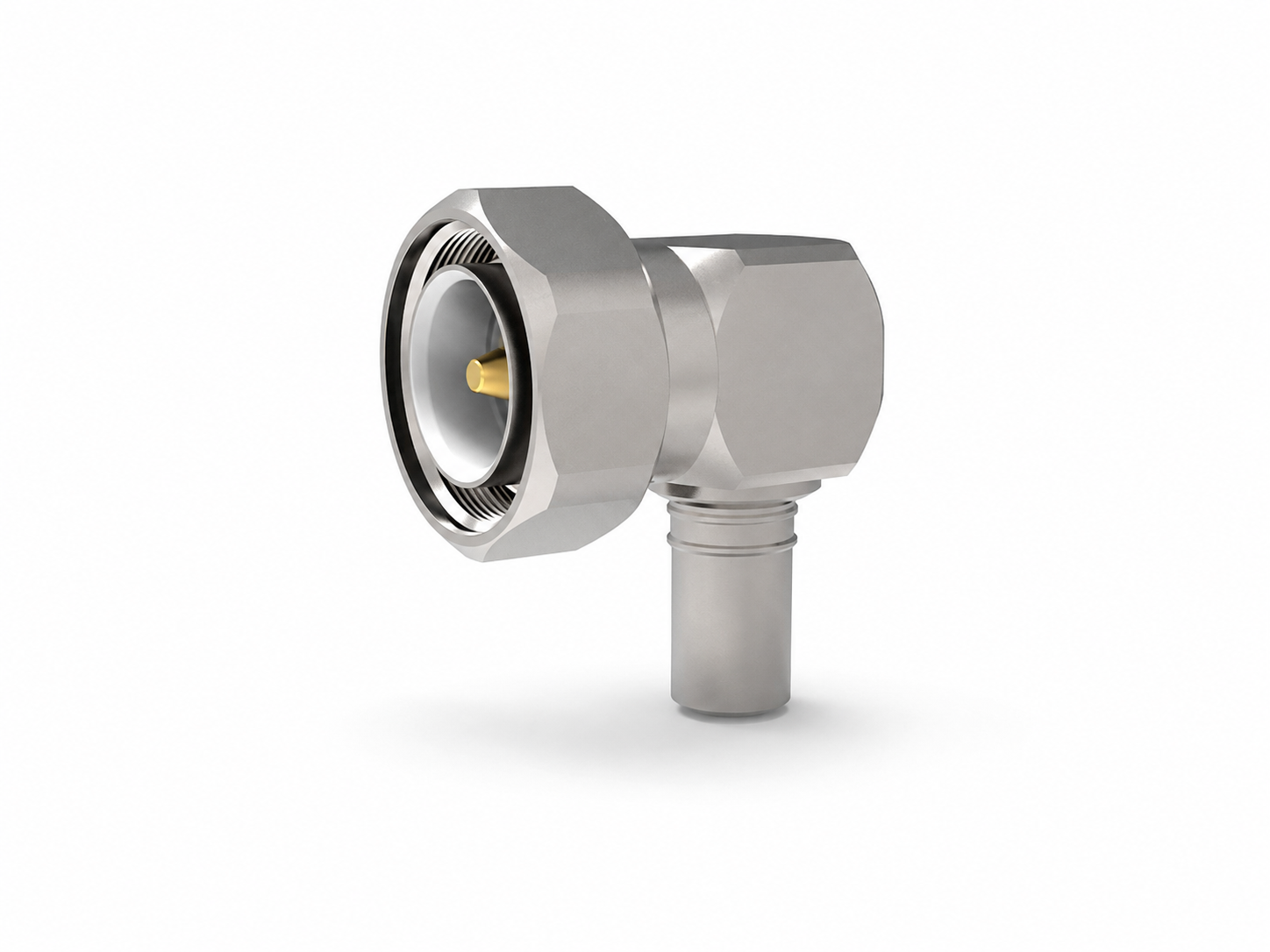

The Times Microwave EZ-400-716M-RA-X is a 7/16 DIN Male right angle RF connector designed for use with LMR-400 coaxial cable. This EZ-Series connector is built for secure RF cable terminations where a 90 degree connector body is needed for tight equipment spaces, antenna systems, DAS deployments, cellular infrastructure, and telecom installations.
The package identifies this connector as a Times 7/16 DIN Male right angle connector for LMR-400 foam dielectric cable. It features a captivated pin, no soldering required installation, hex coupling nut, and crimp-on braid termination. This makes it suitable for field installations, replacement cable assemblies, wireless infrastructure, and high-power RF applications.
Key Specifications
- Manufacturer: Times Microwave Systems
- Part Number: EZ-400-716M-RA-X
- Times P/N: 3190-2545
- Connector Type: 7/16 DIN Male Right Angle
- Cable Compatibility: LMR-400 foam dielectric coaxial cable
- Impedance: 50 Ohm
- Frequency Range: DC to 3 GHz
- VSWR: <= 1.15
- Insertion Loss: <= 0.05
- Proof Voltage: 2500 V
- Installation Method: Crimp-on braid installation
- Center Pin: Captivated pin, no soldering required
- Coupling Nut: Hex coupling nut
- Weatherproofing: IP67
- Compliance: RoHS compliant
- Country of Origin: China
- Condition: New in original box / OEM surplus
Compatible RF Cable Types
- LMR-400 Times Microwave coaxial cable
- CNT-400 Commscope coaxial cable
- RF400 equivalent coaxial cables
- Compatible 400-series foam dielectric RF coaxial cables
Price Comparison
| DAS DEALS | Mouser | DigiKey | Talley |
|---|---|---|---|
| $19.99 | $26.40 | $32.53 | $34.19 |
| You Save | 24% | 39% | 42% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your cable type and installation requirements before purchase. This listing is for the right angle EZ-400-716M-RA-X version.
