Description

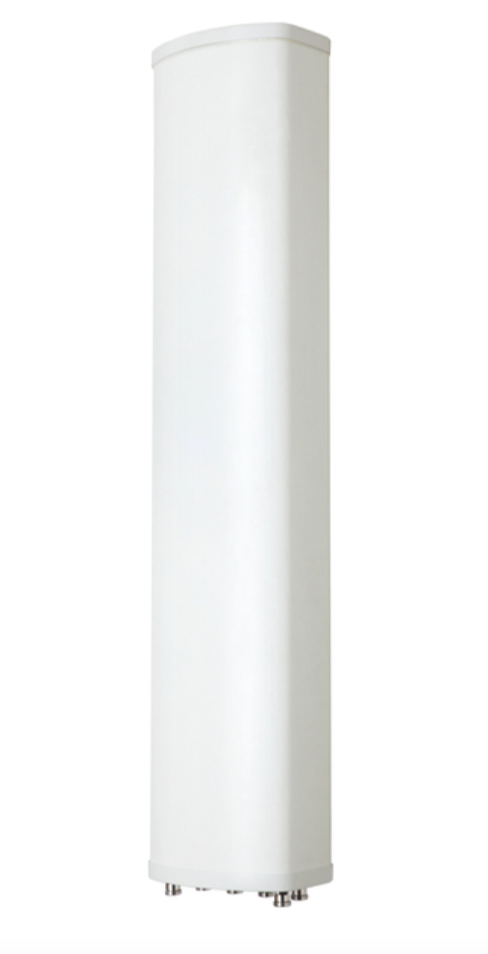

The Commscope SBNHH-1D65A is a 6-port sector antenna engineered for high-capacity LTE and 5G network deployments. It combines two low-band ports (698–896 MHz) and four high-band ports (1695–2360 MHz) into a compact, low-wind-load package utilizing Commscope’s interleaved dipole technology for superior pattern consistency and mechanical efficiency.
Equipped with dual RET (Remote Electrical Tilt) systems—one each for the low and high bands—this antenna allows precise, independent tilt control for optimal coverage and interference mitigation across all supported frequencies. Designed for outdoor macrocell, DAS, and small-cell systems, the SBNHH-1D65A offers exceptional gain, beam control, and reliability even in harsh weather conditions.
Key Specifications
-
Model: SBNHH-1D65A
-
Type: 6-Port Multiband Sector Antenna
-
Frequency Bands:
-
Low Band: 698–896 MHz
-
High Band: 1695–2360 MHz
-
-
Ports: 6 total (2 low, 4 high)
-

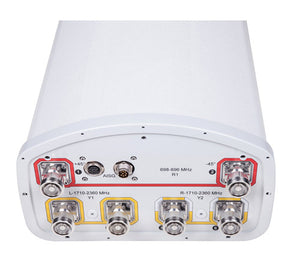

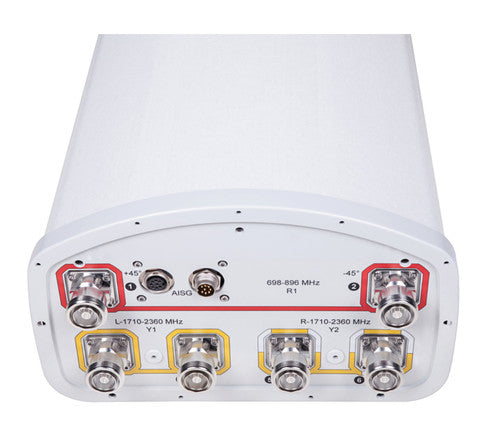

Connectors: 7-16 DIN Female (bottom mount)
-
Impedance: 50 Ω
-
Polarization: ±45°
-
VSWR / Return Loss: ≤ 1.5 : 1 / ≥ 14 dB
-
Gain:
-
Low Band: 13.4 – 13.5 dBi
-
High Band: 16.5 – 17.5 dBi
-
-
Horizontal Beamwidth: 61° – 69.5°
-
Vertical Beamwidth: 5.5° – 17.6° (band-dependent)
-
Front-to-Back Ratio: ≥ 25 – 29 dB
-
Isolation (Cross & Inter-band): 25 – 30 dB
-
PIM (3rd Order, 2 × 20 W): < –153 dBc
-
Max Input Power / Port:
-
300 W (low band)
-
200–250 W (high band)
-
-
RET System: 2 × RET (high / low band independent)
-
Protocol: 3GPP / AISG 2.0 (Multi-RET)
-
Input Voltage: 10–30 V DC
-
Power Consumption: ≤ 13 W
Mechanical Details
-
Dimensions (L × W × D): 55.6 × 11.9 × 7.1 in (1413 × 301 × 180 mm)
-
Weight (net): 33.5 lb (15.2 kg)
-
Material: Fiberglass radome (UV-resistant) / Aluminum reflector
-
Color: Light Gray (RAL 7035)
-
Mounting Bracket: BSAMNT-2F included (fits 60–115 mm pipe Ø)
-
Wind Load @ 150 km/h (93 mph):
-
Frontal: 206 N (46 lbf)
-
Lateral: 169 N (38 lbf)
-
Rear: 208 N (47 lbf)
-
-
EPA (Effective Projected Area): Frontal 0.19 m² / Lateral 0.16 m²
-
Max Wind Speed: 241 km/h (150 mph)
Certifications & Compliance
-
ISO 9001:2015 Certified
-
RoHS / UK-RoHS Compliant
-
REACH SVHC Compliant
-
China RoHS: Above MCV
-
Tested per WP-112534-EN (Wind Tunnel Validation)
Applications
-
5G / LTE / 4G Macrocell Deployments
-
DAS (Distributed Antenna Systems)
-
Private Wireless and Enterprise Networks
-
Rural and Urban Coverage Enhancement
-
Outdoor Small Cell and Multi-Band Sites
